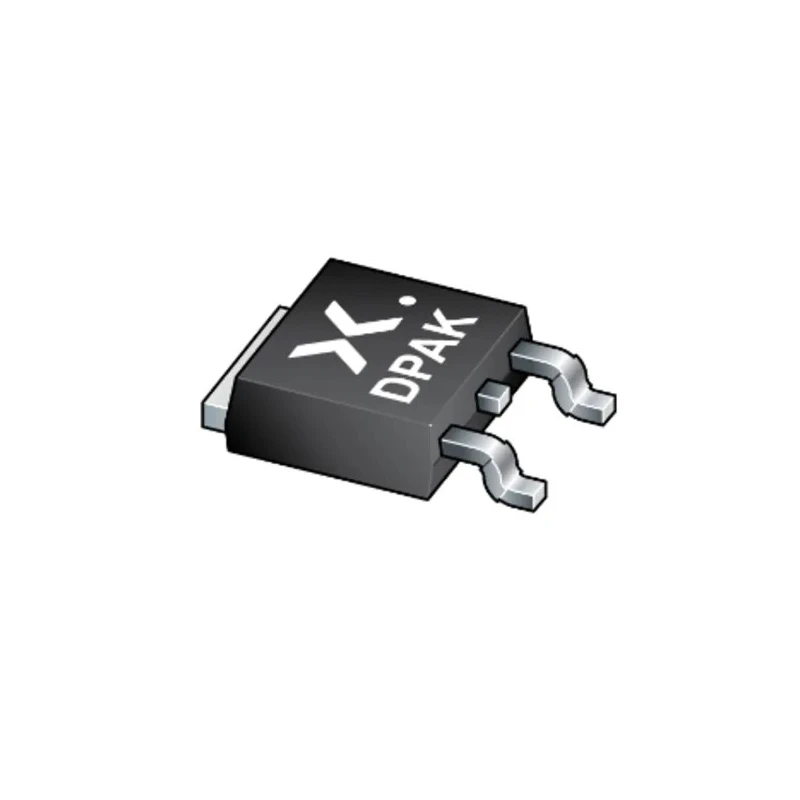

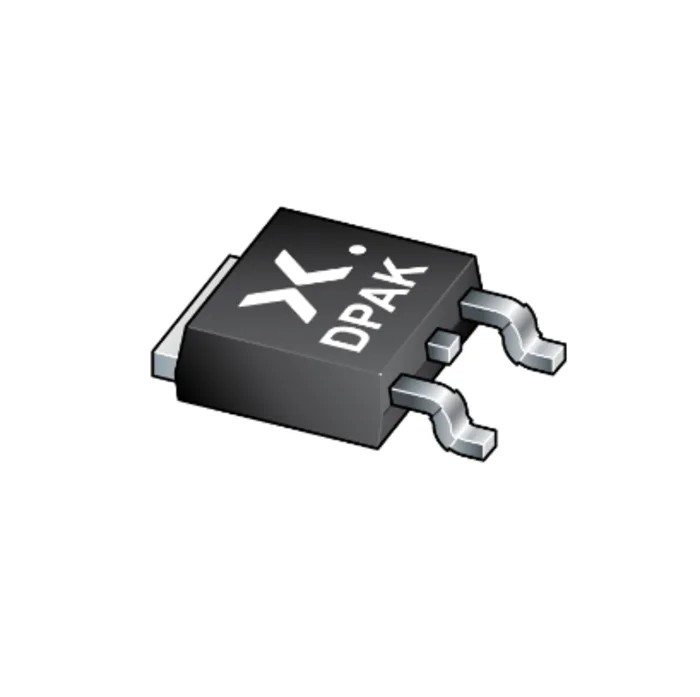

Nexperia Bipolar Transistor PNP, -6 A DC Collector Current, -100 V Collector Emitter Voltage, 15 W Power MJD42CJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | MJD42CJ |
| Mount Type | Surface |
| Series | MJD2873 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -100V |
| Minimum DC Current Gain hFE | 15 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -6V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 15W |
| Maximum DC Collector Current Idc | -6A |
Key Features
- High power bipolar PNP transistor designed for surface mounting.
- Maximum power dissipation rating of 15 W for efficient thermal management.
- Fast switching speeds suitable for power electronics applications.
- Low collector emitter saturation voltage reduces energy loss.
- Operates reliably from -55°C up to 150°C operating temperature.
- 3-pin DPAK (TO-252) plastic package for compact PCB integration.
- Features automotive grade AEC-Q101 qualification.
- Minimum current gain (hFE) of 15 ensures adequate amplification.
Product Description
Nexperia MJD42CJ is a high power bipolar PNP transistor designed for surface mounting applications in electronic circuits. It supports a maximum DC collector current of -6 A and withstands a collector-emitter voltage of up to -100 V. Packaged in a 3-pin TO-252 (DPAK) plastic package, it offers high thermal power dissipation of 15 W enabling reliable performance in power demanding environments.
This transistor exhibits fast switching speeds and low collector emitter saturation voltage which contribute to its high energy efficiency and reduced heat generation during use. With a minimum DC current gain of 15 and a maximum emitter base voltage of -6 V, it ensures strong amplification properties suitable for various power electronics applications.
The device operates across a broad temperature range, from a minimum of -55°C to a maximum of 150°C, making it ideal for industrial, automotive, and commercial electronics implementations. Its construction complies with the automotive standard AEC-Q101, supporting automotive grade quality demands.
The 3-pin configuration in a surface mount TO-252 package facilitates compact PCB layout and easy integration into modern electronic assemblies. This product is widely used in power regulation, switching power supplies, amplifiers, and other discrete semiconductor applications requiring robust and reliable transistor components.
High power capability suitable for demanding electronic circuits. Compact surface mount TO-252 packaging. Automotive grade certification (AEC-Q101) for high reliability. Wide operating temperature allows use in harsh environments.
Fast switching and low voltage saturation for efficient operation. Explore EnvMart for a comprehensive selection of Bipolar Transistors and other semiconductor components engineered for professional industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is -6 A.
It can withstand a collector-emitter voltage of up to -100 V.
This transistor has a maximum power dissipation rating of 15 W, allowing for efficient thermal management.
It operates reliably within a temperature range of -55°C to 150°C.
This transistor is packaged in a 3-pin TO-252 (DPAK) plastic package, suitable for surface mounting.
The minimum DC current gain (hFE) is 15, ensuring adequate amplification.
It complies with the automotive standard AEC-Q101, indicating its suitability for automotive applications.
The maximum emitter-base voltage (VEBO) is -6 V.
It is widely used in power regulation, switching power supplies, and amplifiers, among other discrete semiconductor applications.
Key features include fast switching speeds, low collector-emitter saturation voltage, and high power capability.
This model has a 3-pin configuration, which facilitates compact PCB layout and integration.
The country of origin for this product is India.
