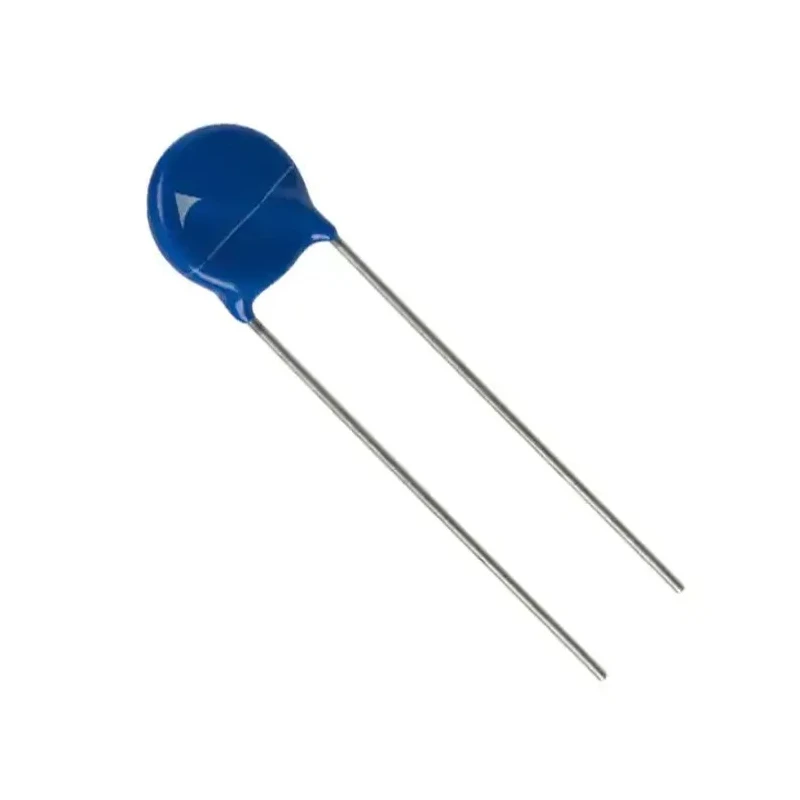

TDK StandardD Metal Oxide Varistor 350 pF 50 A Clamping 910 V Through Hole B72214S0351K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 15.5mm |
| Brand | TDK |
| THICKNESS | 5.6mm |
| Length | 19mm |
| Model | B72214S0351K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 350pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 460V dc |
| Standards/Approvals | IEC, CSA, UL, VDE |
| Pin Count | 2 |
| Maximum AC Voltage | 350V ac |
| Clamping Voltage VC | 910V |
| Clamping Current | 50A |
| Maximum Surge Current | 4.5kA |
| Varistor Voltage | 560 V |
Key Features
- Designed for through hole mounting with 2 pins.
- Capacitance of 350 pF suitable for high frequency circuits.
- Clamping voltage of 910 V enables effective surge absorption.
- Wide operating temperature range from -40°C to 105°C.
- Diameter of 15.5 mm and length of 19 mm with 5.6 mm thickness.
- Maximum surge current of 4.5 kA for high transient currents.
- Flame-retardant epoxy resin coating complying with UL 94 V-0 standard.
- Terminals made of tinned wire offering strong electrical connections.
Product Description
TDK B72214S0351K101 StandardD Metal Oxide Varistor is a surge protection component designed to safeguard electronic circuits from voltage spikes and transient surges. This through hole mounted device features a capacitance of 350 pF and robust clamping current capability of 50 A, making it ideal for industrial and electronic applications requiring reliable voltage suppression.
The varistor voltage rating of 560 V allows for stable performance under normal operating voltages while the clamping voltage of 910 V ensures effective protection against voltage surges. It operates efficiently in wide temperature conditions ranging from -40°C to 105°C, making it suitable for harsh industrial environments.
The 15.5 mm diameter round varistor element paired with a length of 19 mm and thickness of 5.6 mm provides a compact yet robust profile. The device is coated with flame-retardant epoxy resin that meets UL 94 V-0 standards, ensuring safety and flame resistance during operation. Its terminals are constructed from tinned wire for optimal electrical conductivity and durability.
This StandardD series varistor from TDK is compliant with international safety and quality certifications including IEC, CSA, UL, and VDE. High surge current handling capability of 4.5 kA enables the varistor to absorb substantial transient energy, protecting sensitive electronics effectively.
It is supplied in tape and reel packaging for ease of use in automated assembly lines, enhancing manufacturing efficiency. The product is an excellent choice for use in industrial electronics, power supplies, telecommunications, HVAC systems, and commercial electronics requiring surge protection solutions.
Designed for through hole mounting with 2 pins. Capacitance of 350 pF suitable for high frequency circuits. Clamping voltage of 910 V enables effective surge absorption. Voltage rating of 560 V varistor voltage ensures reliable operation.
Wide operating temperature range from -40°C to 105°C. Diameter of 15.5 mm and length of 19 mm with 5.6 mm thickness. Maximum surge current of 4.5 kA for high transient currents. Flame-retardant epoxy resin coating complying with UL 94 V-0 standard.
Terminals made of tinned wire offering strong electrical connections. Complies with IEC, CSA, UL, and VDE standards for quality assurance. Explore more Varistors and surge protection components at EnvMart for reliable and industrial-grade electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 910 V, which enables effective surge absorption.
It has a capacitance rating of 350 pF, making it suitable for high frequency circuits.
This unit can handle a maximum surge current of 4.5 kA, allowing it to absorb substantial transient energy.
The varistor has a diameter of 15.5 mm, a length of 19 mm, and a thickness of 5.6 mm.
It operates efficiently within a temperature range of -40°C to 105°C.
This varistor is designed for through hole mounting with 2 pins.
It complies with international safety and quality standards including IEC, CSA, UL, and VDE.
The maximum DC voltage rating for this model is 460 V.
It is supplied in tape and reel packaging, which enhances manufacturing efficiency for automated assembly lines.
The terminals are made of tinned wire, providing strong electrical connections.
The maximum AC voltage rating is 350 V.
This model is part of the StandardD series from TDK.
