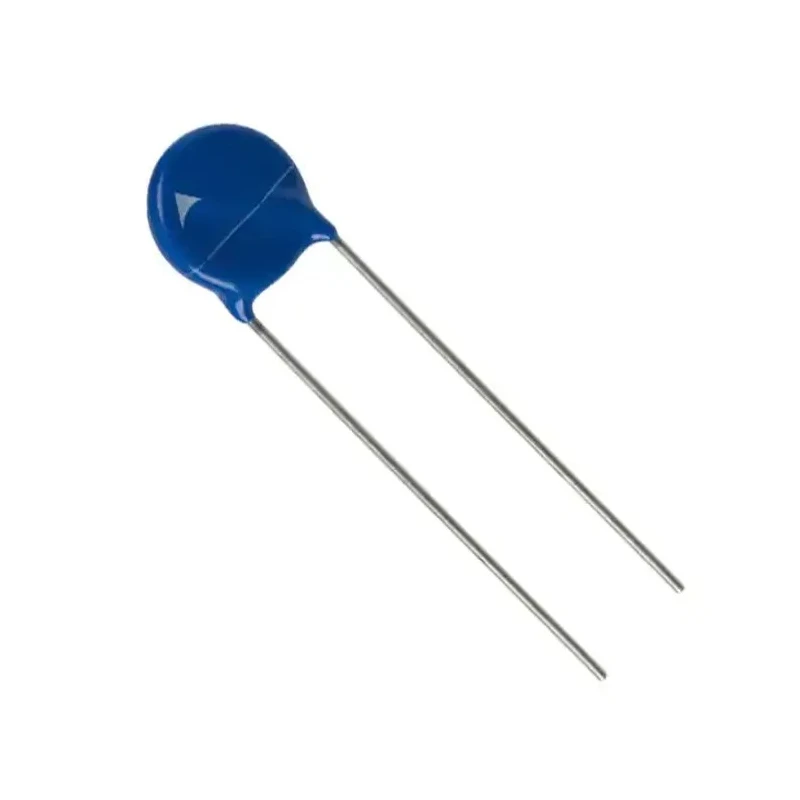

TDK StandardD Metal Oxide Varistor 190 pF 10 A Clamping Voltage 455 V Model B72207S0171K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9mm |
| Brand | TDK |
| THICKNESS | 4mm |
| Length | 11mm |
| Model | B72207S0171K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 190pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 225V dc |
| Standards/Approvals | CSA, VDE, UL, IEC |
| Pin Count | 2 |
| Maximum AC Voltage | 175V ac |
| Clamping Voltage VC | 455V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.2kA |
| Varistor Voltage | 270 V |
Key Features
- Through hole mount type for easy PCB integration.
- StandardD series with epoxy resin flame-retardant coating to UL 94 V-0.
- Wide operating temperature range from -40°C to 105°C.
- Maximum AC voltage rating of 175 V and DC voltage rating of 225 V.
- High surge current capacity up to 1.2 kA for robust protection.
- Compliant with CSA, VDE, UL, and IEC standards.
- Designed for efficient surge protection in electronic circuits.
Product Description
TDK B72207S0171K101 StandardD Metal Oxide Varistor is a critical component designed for surge protection in electronic and electrical circuits. With a capacitance of 190 pF and a nominal varistor voltage of 270 V, it offers high reliability and protection against voltage spikes.
This varistor features a clamping voltage of 455 V and can handle a clamping current of up to 10 A, enabling it to effectively suppress transient surges. The device is mounted through hole style, which allows easy integration into printed circuit boards.
The epoxy resin coating is flame-retardant compliant to UL 94 V-0, ensuring safety in demanding industrial and commercial environments. Physical dimensions include a 9 mm diameter, 11 mm length, and 4 mm thickness, making it suitable for compact applications.
Operating temperature ranges from -40°C to 105°C without de-rating, supporting stable performance in harsh conditions. The Varistor complies with international standards such as CSA, VDE, UL, and IEC, underlining its quality and safety credentials.
It supports high surge current capacities up to 1.2 kA and is manufactured in China. This makes it ideal for use in industrial electronics, power supplies, telecommunications, automotive electronics (non-automotive standard), and consumer electronics to protect against voltage surges and transients.
Through hole mount type for easy PCB integration. StandardD series with epoxy resin flame-retardant coating to UL 94 V-0. Wide operating temperature range from -40°C to 105°C. Maximum AC voltage rating of 175 V and DC voltage rating of 225 V.
High surge current capacity up to 1.2 kA for robust protection. Compact physical dimensions: 9 mm diameter, 11 mm length, and 4 mm thickness. Compliant with CSA, VDE, UL, and IEC standards. Manufactured in China. Explore more TDK surge protection components on EnvMart for reliable electronic circuit solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum surge current capacity of 1.2 kA, providing robust protection against voltage spikes.
The physical dimensions of this varistor are 9 mm in diameter, 11 mm in length, and 4 mm in thickness.
The clamping voltage for this varistor is 455 V, allowing it to effectively suppress transient surges.
This unit has a capacitance value of 190 pF, which contributes to its surge protection capabilities.
The maximum AC voltage rating is 175 V, while the maximum DC voltage rating is 225 V.
It operates within a temperature range of -40°C to 105°C, ensuring stable performance in various conditions.
This model features a through hole mount type, which facilitates easy integration into printed circuit boards.
It complies with CSA, VDE, UL, and IEC standards, ensuring quality and safety in its applications.
The nominal varistor voltage is 270 V, which indicates its voltage clamping capability during surges.
This unit is packaged in tape and reel format, which is suitable for automated assembly processes.
This model has 2 pins, which are used for mounting and electrical connection.
The TDK B72207S0171K101 is manufactured in China.
