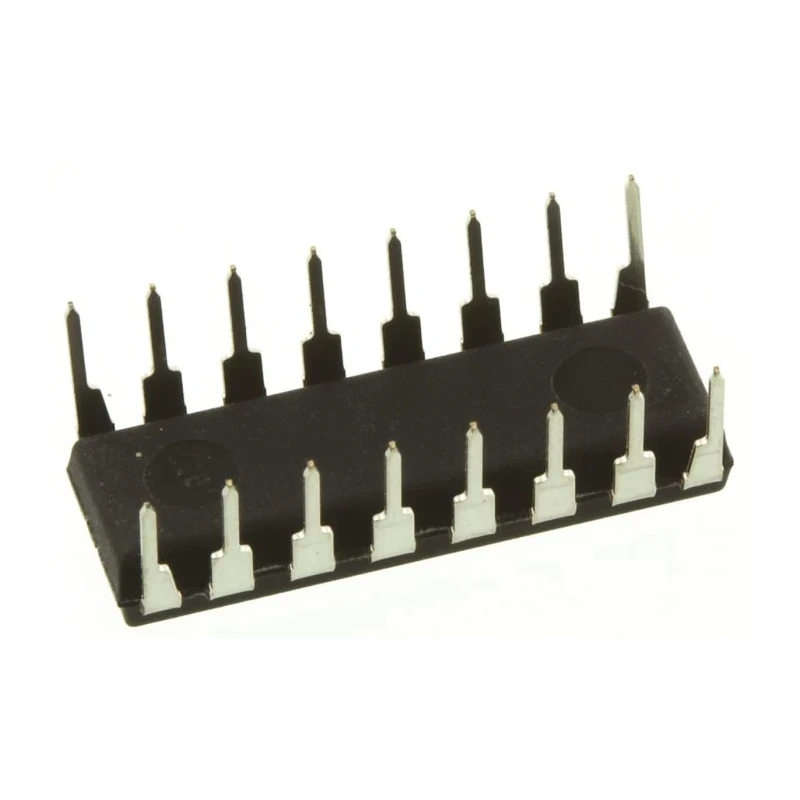

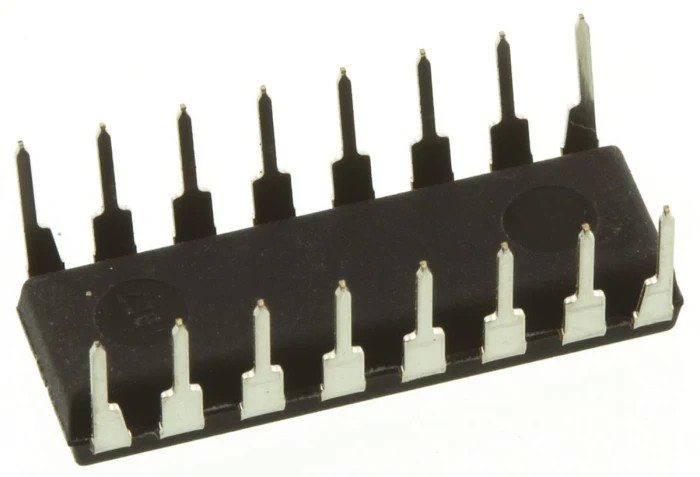

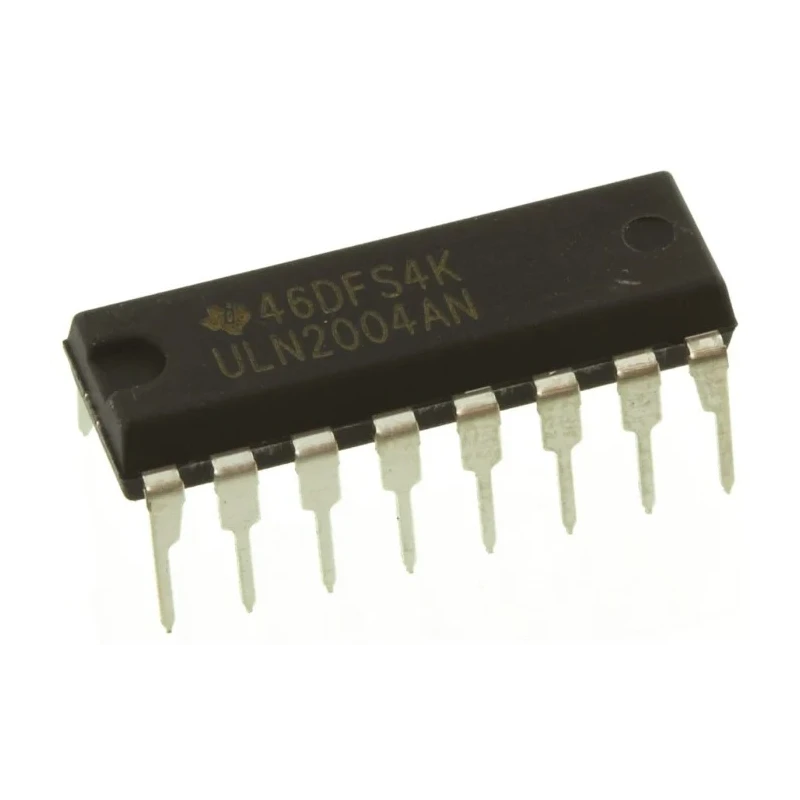

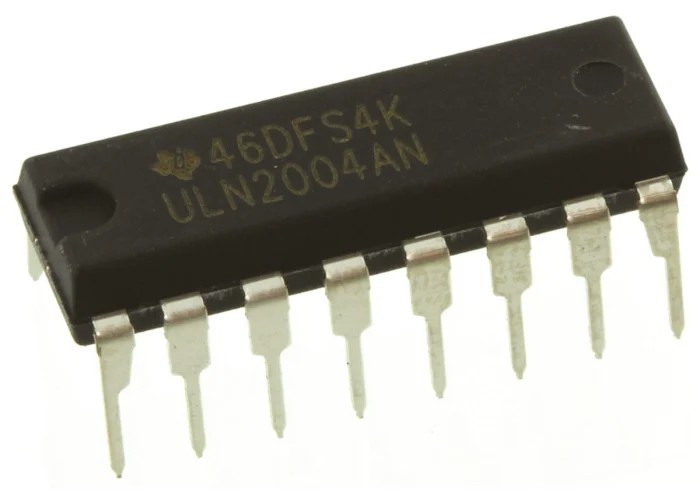

Texas Instruments 7-Element Darlington Transistor Array NPN 500 mA 50 V 16-Pin PDIP ULN2004AN

Texas Instruments ULN2004AN is a new 7-element Darlington transistor array designed with NPN polarity, capable of handling a maximum continuous collector current of 500 mA and a collector-emitter voltage rating of 50 V. This device comes in a 16-pin PDIP package suitable for through-hole mounting, providing straightforward integration onto various printed circuit boards.

The transistor array features a maximum collector-emitter saturation voltage of 1.6 V and maximum emitter-base voltage of 50 V, offering reliable switching performance. The ULN2004AN supports operating temperatures ranging from -20°C to 70°C, making it suitable for diverse environmental conditions encountered in industrial, laboratory, and automotive electronic applications.

Compact dimensions of 19.3 mm in length and 4.57 mm in height allow for efficient PCB space utilization. This product is manufactured in Malaysia under strict quality standards to ensure consistent performance.

Maximum continuous collector current of 500 mA per transistor. Maximum collector-emitter voltage of 50 V. 16-pin PDIP through-hole package. Maximum collector-emitter saturation voltage of 1.6 V. Operating temperature range from -20°C to 70°C.

NPN transistor polarity suitable for switching applications. Compact size with 19.3 mm length and 4.57 mm height. Manufactured in Malaysia ensuring quality and reliability.

This Darlington Transistor array is widely used in industrial electronics, control systems, laboratory instrumentation, and automotive driver circuits requiring efficient medium to high current switching capabilities.
