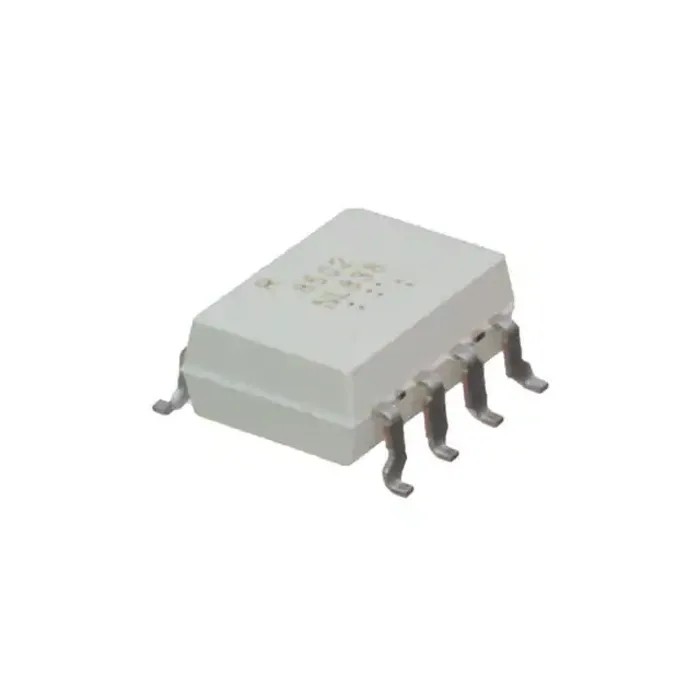

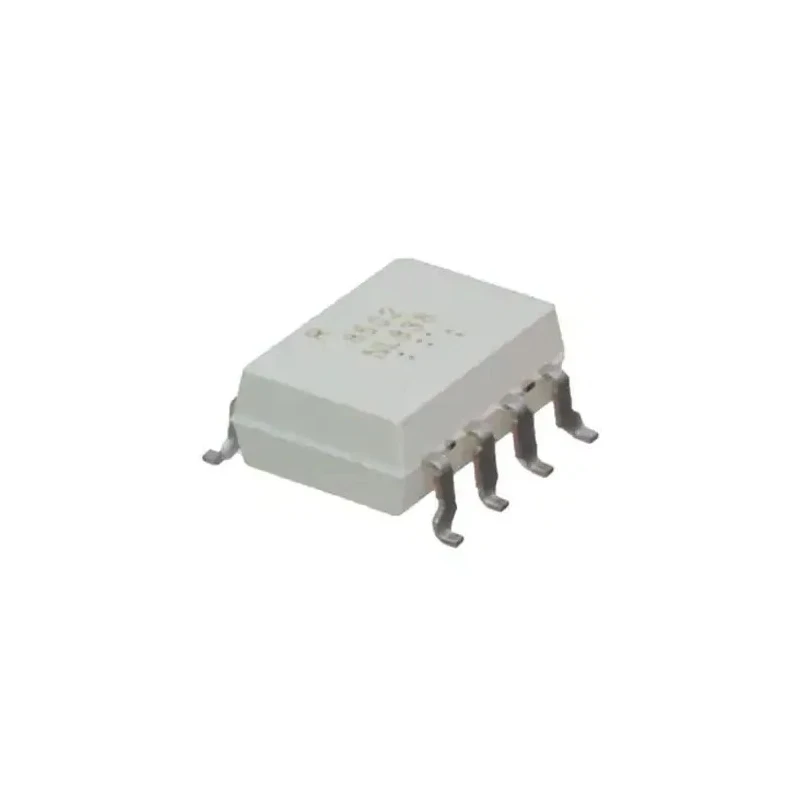

Renesas Electronics DC Input Photocoupler Surface Mount 8-Pin Gull Wing, 2.2V Forward Voltage PS8502L3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS8502L3-AX |
| Packaging | Magazine |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | Gull Wing |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 400mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, CSA |
| Maximum Forward Voltage | 2.2V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Minimum Current Transfer Ratio | 15% |
Key Features
- Features a GaAIAs LED input and a PN photodiode with a high-speed amplifier transistor on output.
- Supports a maximum forward voltage of 2.2V and DC input current up to 400mA.
- High isolation voltage rating of 5000Vrms enables safe electrical separation.
- Operates efficiently across a wide temperature range from -55°C to 100°C.
- Package type is surface mount with gull wing leads for automated assembly.
- Minimum current transfer ratio is 15%, ensuring reliable signal transmission.
- Compliant with UL and CSA safety standards.
- Designed for industrial, electronic component, and optoelectronic applications requiring fast response times.
Product Description
Renesas Electronics PS8502L3-AX is an 8-pin high-speed DC input photocoupler designed for surface mount applications. It integrates a Gallium Aluminum Arsenide (GaAIAs) LED on the input side coupled with a photodiode and high-speed amplifier transistor on the output side within a single chip. This design ensures high-speed response and precise signal isolation, meeting demanding industrial and electronic component requirements.
The device supports a maximum forward voltage of 2.2 volts and can handle DC input currents up to 400mA. It boasts a high isolation voltage of 5000Vrms, offering effective protection in electrically noisy environments. The operating temperature range from -55°C to 100°C allows reliable performance in harsh industrial climates.
The package type is a gull wing 8-pin surface mount, facilitating automatic insertion and soldering on printed circuit boards. The minimum current transfer ratio of 15% guarantees effective signal fidelity and amplification. Certifications to UL and CSA standards provide confidence in safety compliance.
This photocoupler fits applications in power electronics, signal isolation, control systems, and industrial automation where electrical isolation and fast switching are critical. Its magazine packaging supports efficient assembly line integration.
High-speed isolation with GaAIAs LED and photodiode combination. Surface mount gull wing 8-pin package suitable for automated PCB assembly. Max forward voltage of 2.2V and max input current of 400mA. High isolation voltage of 5000Vrms for electrical protection.
Wide operating temperature range from -55°C to +100°C. Minimum current transfer ratio of 15% ensuring signal integrity. UL and CSA safety approvals. Designed for industrial, electronic, and optoelectronic system integration.
Choose this Renesas Electronics PS8502L3-AX photocoupler for reliable, high-speed isolation in surface mount configurations suitable for industrial manufacturing environments. Explore advanced Electronics Components and Optocouplers at EnvMart for comprehensive solutions.
