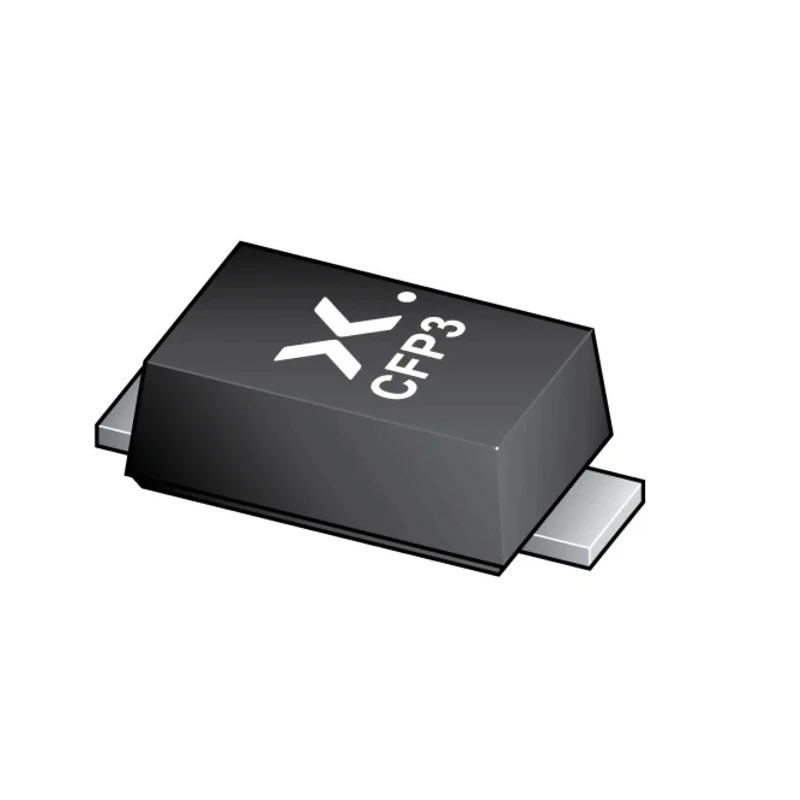

Nexperia 100 V 2 A Surface Mount Schottky Diode CFP3 Package PMEG100T20ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T20ELRX |
| Mount Type | Surface |
| Series | PMEG100T20ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 800mV |
Key Features
- This diode features a low forward voltage of 800 mV improving energy efficiency.
- Encapsulated in a compact CFP3 (SOD123W) plastic package suitable for surface mounting.
- Supports high surge forward current of 50 A for transient durability.
- Operates in a wide temperature range from -55°C to 175°C for robust performance.
- Compliant with RoHS and meets automotive AEC-Q101 standards.
- High power capability achieved through clip-bonding technology.
- Offers low leakage current and reduced charge storage for faster switching.
- Ideal for power supply, automotive, and electronic circuit applications.
Product Description
Nexperia PMEG100T20ELRX Surface Mount Schottky Diode, with a maximum forward current of 2 A and peak reverse voltage of 100 V, is engineered for efficient power rectification applications.
This Schottky barrier rectifier features a low forward voltage drop of 800 mV which reduces power loss and heat generation in circuits. Encased in the CFP3 (SOD123W) small flat lead SMD plastic package, it offers space-saving integration on printed circuit boards.
Designed to endure peak non-repetitive forward surge current of 50 A, it withstands electrical stress during transient pulses.
The diode operates reliably over a wide temperature range from -55°C to 175°C, making it suitable for automotive-grade and industrial environments compliant with AEC-Q101 and RoHS directives.
Its clip-bonding technology provides high power capability and low leakage currents, benefiting high-frequency switching power supplies and rectification in power modules. This diode features a low forward voltage of 800 mV improving energy efficiency.
Encapsulated in a compact CFP3 (SOD123W) plastic package suitable for surface mounting. Supports high surge forward current of 50 A for transient durability. Operates in a wide temperature range from -55°C to 175°C for robust performance.
Compliant with RoHS and meets automotive AEC-Q101 standards. High power capability achieved through clip-bonding technology. Offers low leakage current and reduced charge storage for faster switching. Ideal for power supply, automotive, and electronic circuit applications.
This diode is widely used in industrial, automotive, and consumer electronics for efficient power conversion, protection circuits, and signal rectification. Explore a wide range of semiconductor and discrete components at EnvMart to support your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 2 A.
It has a peak reverse repetitive voltage of 100 V.
The maximum forward voltage drop is 800 mV, which helps improve energy efficiency.
It operates reliably over a wide temperature range from -55°C to 175°C.
This diode is encapsulated in a compact CFP3 (SOD123W) plastic package suitable for surface mounting.
The maximum peak non-repetitive forward surge current is 50 A.
It complies with the AEC-Q101 automotive standard.
Yes, this diode is compliant with RoHS directives.
It is ideal for power supply, automotive, and electronic circuit applications.
It features clip-bonding technology, which provides high power capability and low leakage currents.
The diode configuration is single.
The country of origin for this product is India.
