| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C47-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |

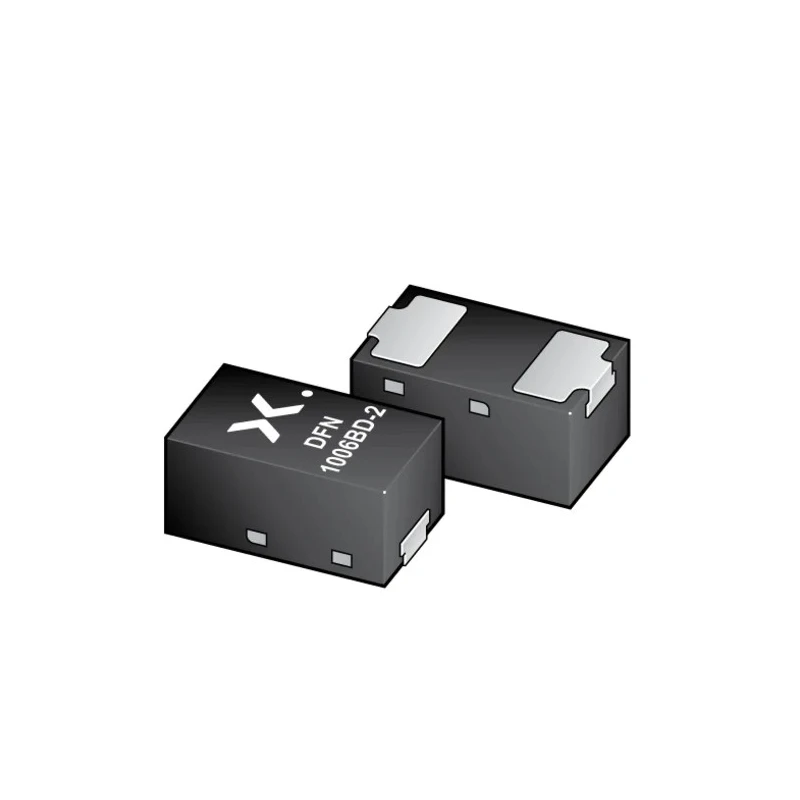

Nexperia BZX884S-C47-QYL is a high-quality general-purpose Zener diode designed for reliable voltage regulation in electronic and automotive applications. Rated at 1.47 V nominal Zener voltage and capable of dissipating up to 365 mW, this diode is housed in an ultra-small DFN1006BD-2 surface mount package with 2 pins, facilitating compact PCB designs.
The component features a single diode element with a voltage tolerance of ±2%, ensuring precise voltage stabilization. Its small dimensions of 1 mm length and 0.47 mm height make it ideal for tight space requirements in modern electronics.
This diode operates across an extensive temperature range from -55°C to 150°C, qualified to AEC-Q101 standards, making it well suited for automotive and industrial uses where temperature resilience is critical.
Additionally, the device offers a maximum Zener impedance of 375 Ω and a low maximum reverse leakage current of 50 nA, contributing to efficient and stable voltage control under varying electrical conditions.
The Nexperia BZX884S-C47-QYL complies with RoHS directives, ensuring environmentally friendly manufacturing and usage. Typical uses include voltage reference, voltage regulation, and surge suppression in power supplies and automotive circuits.
Nominal Zener voltage of 1.47 V with ±2% tolerance. Maximum power dissipation of 365 mW in compact DFN1006BD-2 package. Wide operating temperature range from -55°C to +150°C and compliance with AEC-Q101 automotive standards.
Extremely low maximum reverse leakage current of 50 nA ensures minimal power loss. Height of 0.47 mm allows for ultra-low profile circuit integration. Surface mount 2-pin design simplifies PCB mounting and assembly. Ideal for automotive, industrial, and electronic semiconductor applications.
This product is categorized under EnvMart's Zener Diodes, suitable for electronics, semiconductor, automotive, and industrial power management uses. Explore further semiconductor components at EnvMart for comprehensive project solutions.
