| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143ZQB-QZ |
| Mount Type | Surface |
| Series | PDTC143Z |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

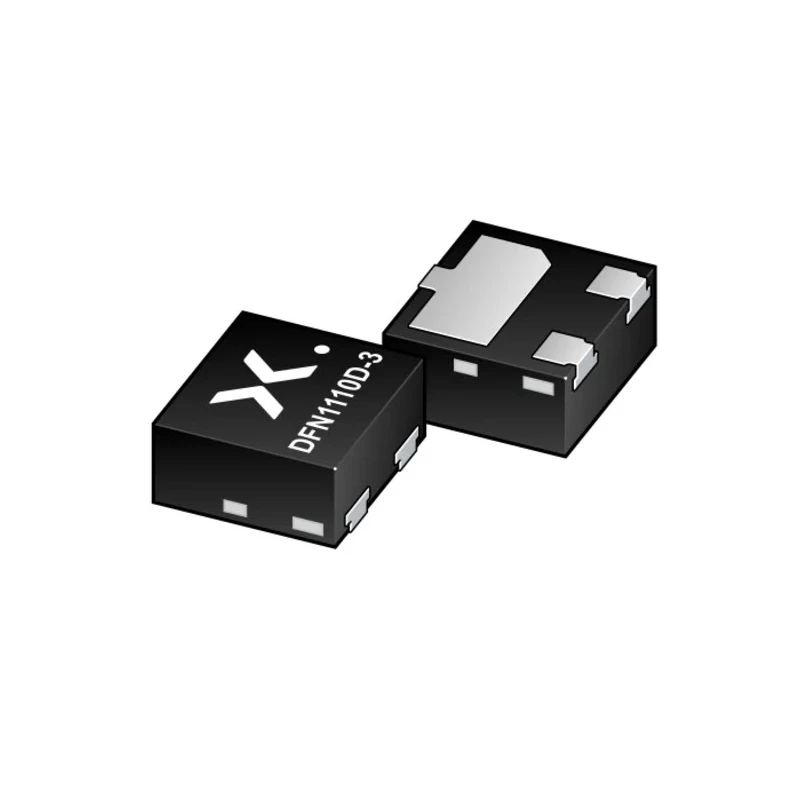

Nexperia PDTC143ZQB-QZ resistor-equipped bipolar NPN transistor is designed for operation up to a maximum DC collector current of 100 mA and a collector-emitter voltage of 50 V. Featuring a 3-pin DFN1110D-3 (SOT8015) leadless surface mount package, this transistor offers a compact footprint with a low package height of 0.5 mm and side-wettable flanks enabling reliable solder joint inspection via automated optical inspection (AOI).
The built-in resistors integrated into the device simplify circuit design by reducing the number of external components, thus lowering assembly costs and enhancing production efficiency. This transistor supports the automotive standard AEC-Q101, indicating its suitability for demanding automotive applications.
Operational across a wide temperature range from -55°C to 150°C and featuring a high transition frequency of 230 MHz, the PDTC143ZQB-QZ is capable of high-speed switching, making it an excellent choice for digital switching and load control in industrial, automotive, and consumer electronic devices.
This RoHS-compliant component helps manufacturers meet environmental regulations while delivering reliable performance in semiconductor discrete applications. Maximum DC collector current of 100 mA enhances switching capability.
Maximum collector-emitter voltage rating of 50 V supports robust operation. Integration of resistors reduces component count and simplifies PCB design. Compact DFN1110D-3 package suits automated surface mount assembly with AOI compatibility.
Certified to automotive standard AEC-Q101 for quality assurance in automotive electronics. Wide temperature tolerance enables use in harsh environments. High transition frequency (230 MHz) supports fast switching applications.
Energy efficient transistor ideal for controlling IC inputs and loads in digital circuits. Lead-free and RoHS compliant for eco-friendly manufacturing.
This transistor is highly suited for use in industrial electronics, automotive systems, and digital circuit controls. Its reduced package size and integrated resistors promise cost and space savings while maintaining performance integrity.
Explore the full range of Bipolar Transistors at EnvMart for your semiconductor and discrete component needs.
