Igus chainflex CF77.UL.D Control Cable, 12 Cores, 0.5mm² 20 AWG, Unscreened, Armoured, Thermoplastic CF77.UL.05.12.D (50m)

The Igus chainflex CF77.UL.D Control Cable CF77.UL.05.12.D (50m) is a high-performance industrial control cable featuring 12 cores of 0.5mm² (20 AWG) stranded copper conductors insulated and bundled with a patented design. The cable is unscreened and has an armoured, grey thermoplastic elastomer sheath that offers outstanding abrasion resistance and chemical durability for demanding factory and automation environments.

Rated for 300/500V applications, this cable supports a wide operating temperature range from -50°C to +80°C, making it suitable for both indoor and outdoor use cases. It delivers long service life in dynamic and echain (cable carrier) applications, with a small bending radius that saves space and enhances installation flexibility.

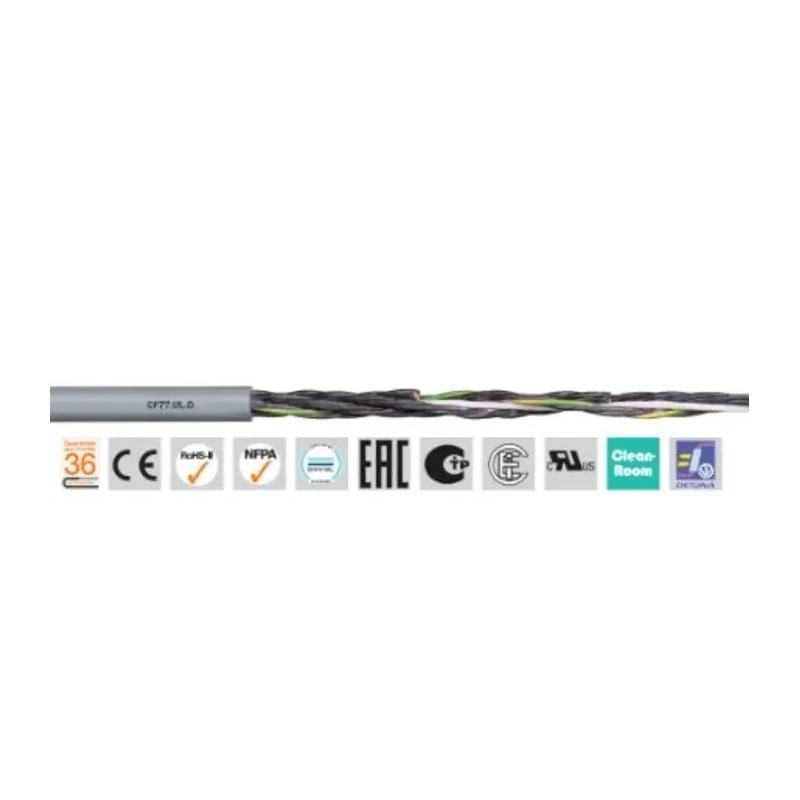

The sheath is classified as oil resistant Class 4, handling exposure to oils and bio-oils without degradation. It meets flame retardant and halogen-free standards IEC 60332-1-2, CEI 20-35, and VW1, ensuring safety and compliance in industrial environments. Additional certifications include CE, EN, UL/CSA style 11113 and 2570, NFPA 79-2018, ROHS-II lead-free compliance, and clean room ISO Class 1 standards.

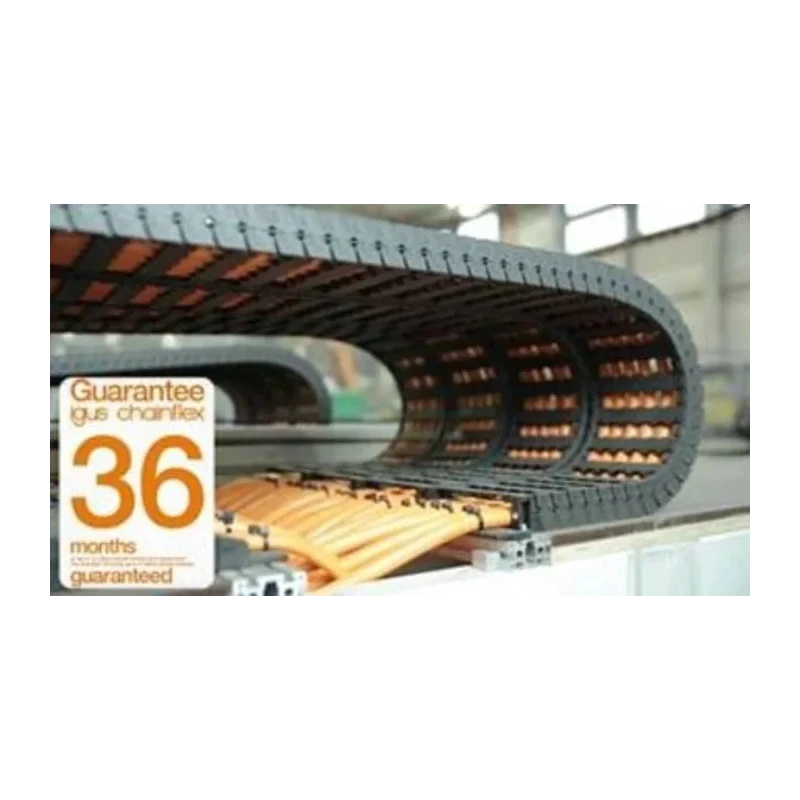

Typical industrial uses include machining units, machine tools, storage and retrieval systems, high-bay warehousing, packaging automation, quick handing systems, and refrigeration sectors. The cable’s robust construction allows it to withstand long travel distances up to 400 meters in echain systems, minimizing risks of downtime and maintenance costs.

Specifications such as 12 cores, stranded copper conductors, 0.5mm² CSA, and a 10mm outside diameter provide detailed assurance of compatibility with control and industrial automation systems requiring reliable signal transmission.

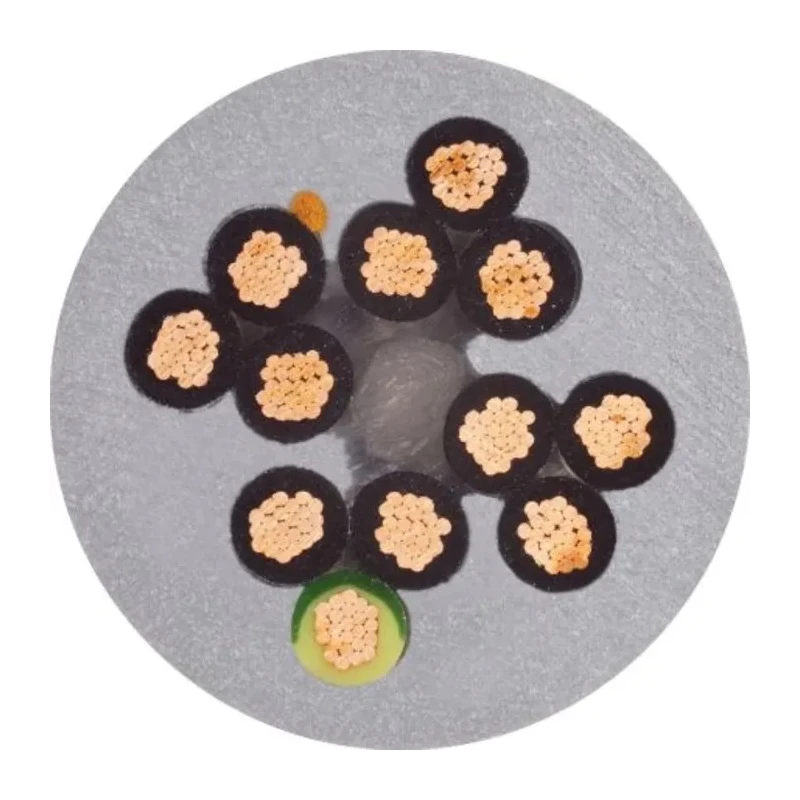

Patented bundled core design enhances cable lifespan in dynamic applications. Small bending radius suitable for space-restricted installations. Oil resistant Class 4 sheath for high chemical and oil exposure resistance. Flame retardant and halogen-free properties meet international safety standards.

Wide operating temperature range from -50°C to +80°C. Armoured construction provides mechanical protection. Grey thermoplastic elastomer jacket ensures durability and flexibility. Complies with CE, EN, UL/CSA, NFPA, and ROHS standards.

Ideal for machine tools, packaging, refrigeration, and warehousing applications. Suitable for echain cable carriers with reliable performance over long distances.
