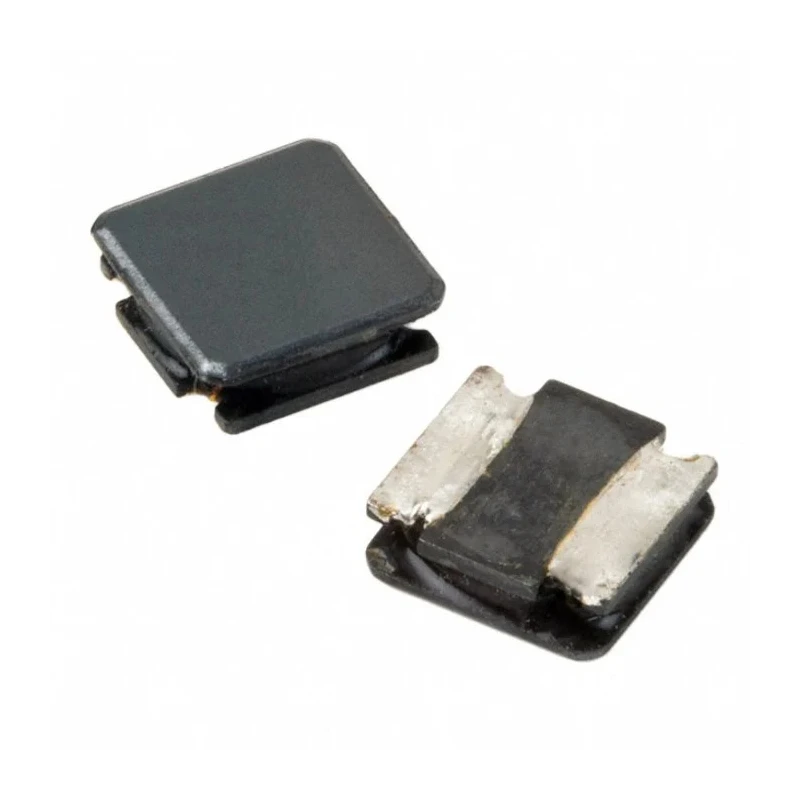

Abracon Shielded Surface Mount Inductor with Ferrite Core 3.9 μH ±20% 2.7 A Idc ASPI-0628-3R9M-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.8mm |
| Length | 6mm |
| Model | ASPI-0628-3R9M-T1 |
| Depth | 2.8mm |
| Packaging | Tape & Reel |
| Series | ASPI-0628 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 3.9μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.7A |
| Pin Count | 4 |
| Maximum DC Resistance | 31mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
| Small size and low profile | 2.8mm |
Key Features
- Compact size with 6 mm length and 2.8 mm height and depth dimensions.
- Low DC resistance of 31 mΩ for optimized efficiency.
- Magnetically shielded with magnetic powder molding for reduced EMI.
- Suitable for applications requiring mechanical stress reliability.
- Compliant with RoHS reflow profile for environmental safety.
- Surface mount termination style enhances PCB assembly efficiency.
- Operating temperature range from -25°C up to 125°C.
- Packaged in tape and reel format for automated insertion.
Product Description
Abracon ASPI-0628-3R9M-T1 shielded surface mount inductor with a ferrite core delivers 3.9 μH inductance and supports a maximum DC current of 2.7 A. This inductor features a compact and low-profile design measuring 6 mm in length and 2.8 mm in height and depth, making it ideal for space-constrained electronic assemblies.
Constructed with a ferrite core and molded magnetic powder shielding, it provides excellent electromagnetic interference (EMI) suppression and enhanced mechanical stress resistance, ensuring high reliability in demanding environments. It incorporates a surface mount termination style and 4-pin configuration for secure and easy PCB mounting.
The inductor operates efficiently with a maximum DC resistance of 31 mΩ and maintains performance across a wide temperature range from -25°C to 125°C. It is compliant with RoHS standards, supporting environmentally friendly manufacturing and reflow soldering processes.
This product is well-suited for use in portable communication devices such as mobile phones, MP3 players, digital cameras, and other electronics requiring small size inductors with low profile and high current ratings.
Compact size with low DC resistance enhances electrical performance. Magnetic shielding reduces interference in sensitive circuits. High temperature tolerance extends reliability under harsh conditions. Designed for surface mount assembly for modern manufacturing lines.
Tape and reel packaging supports automated production efficiency. Four-pin design ensures stable electrical connections.
The Abracon ASPI-0628-3R9M-T1 surface mount inductor is a vital component for electronics manufacturing requiring reliable, small form factor inductors with shielded ferrite cores. Explore more components in the Surface Mount Inductors category on EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.9 μH with an inductance tolerance of ±20%.
This inductor supports a maximum DC current of 2.7 A.
It has a compact size with a length of 6 mm and a height and depth of 2.8 mm.
The maximum operating temperature for this model is 125°C.
Yes, it is compliant with RoHS standards for environmentally friendly manufacturing.
This inductor is constructed with a ferrite core, which aids in reducing electromagnetic interference.
It is packaged in tape and reel format, which supports automated insertion during PCB assembly.
The maximum DC resistance is 31 mΩ, optimizing its efficiency.
It features a surface mount termination style, enhancing its suitability for modern manufacturing processes.
This model is suitable for applications in portable communication devices, such as mobile phones and digital cameras.
This inductor has a pin count of 4, ensuring stable electrical connections.
The minimum operating temperature is -25°C, allowing it to function in various environmental conditions.
