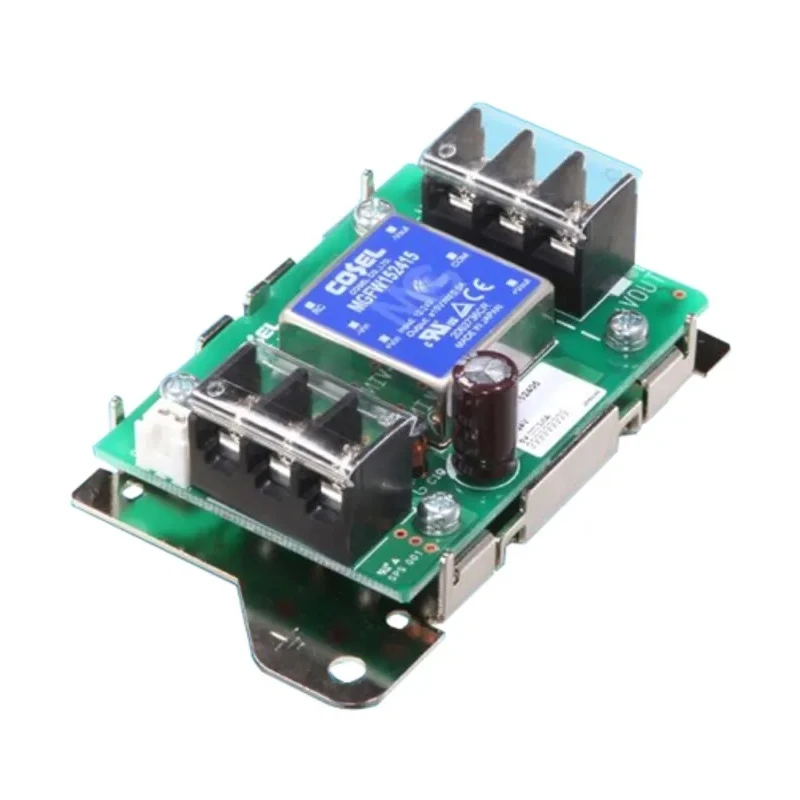

Cosel STMGFW DC/DC Converter 10V & -10V Output, 1.5A, 36V Input, 15W, PCB Mount, Max Temp 70°C STMGFW154805

The Cosel STMGFW154805 DC/DC Converter is a highly reliable isolated power supply module designed for applications requiring dual voltage outputs, specifically 10V and -10V at 1.5A current capacity, delivering up to 15W of power. It supports a broad DC input voltage range from 9V to 36V, making it versatile for varying power sources.

This unit features a compact PCB mount type form factor measuring 93mm in length, 52mm in width, and 27mm in depth, facilitating seamless integration into printed circuit boards and electronic devices. Its robust electrical isolation of 500V DC protects downstream circuits from interference and ensures safety.

The converter incorporates built-in protections including automatic recovery from overcurrent conditions and an overvoltage safeguard specifically for STMG30 models. The output voltage is adjustable within 4.93 to 5.24 volts to fine-tune system requirements. It maintains a low ripple and noise value of 200mV RMS, ideal for noise-sensitive industrial controls and instrumentation.

Efficient design achieves 84% conversion efficiency, reducing thermal dissipation and extending component life. The converter operates reliably within a wide temperature range of -70°C to 70°C, suitable for harsh industrial, laboratory, and manufacturing environments.

Certifications and approvals such as CE, CSA, cUL, EN, RoHS, and UL underline its compliance with global safety and environmental standards. This product is manufactured in Japan and comes with a 5-year warranty, ensuring high performance and longevity.

Compact PCB mount design suitable for embedded applications. Wide input voltage range from 9V to 36V for flexible power sources. High isolation voltage of 500V DC ensures safety and noise immunity. Built-in overcurrent protection with automatic recovery enhances reliability.

Peak efficiency of 84% minimizes power loss and heat generation. Operates within temperature limits of -70°C to 70°C, suitable for industrial environments. Output voltage adjustable within 4.93 to 5.24 V for precise regulation.

Low ripple and noise level of 200mV supports sensitive electronics. Complies with multiple safety standards including CE, CSA, cUL, EN, RoHS, UL. Backed by a 5-year warranty for durability assurance.

The Cosel STMGFW series of DC/DC Converters are ideal for industrial, laboratory, manufacturing, and commercial applications where stable isolated DC power is critical. Its trusted performance and compliance make it suitable for power supply subsystems in automation, instrumentation, and communication equipment. Explore additional models in this series to fulfill differing voltage and power requirements on EnvMart.
