Broadcom DC Input 2-Channel Phototransistor Optocoupler Surface Mount 8-Pin SO-8 ACPL-054L-060E

Free Delivery in India | Lowest Global Shipping Charges

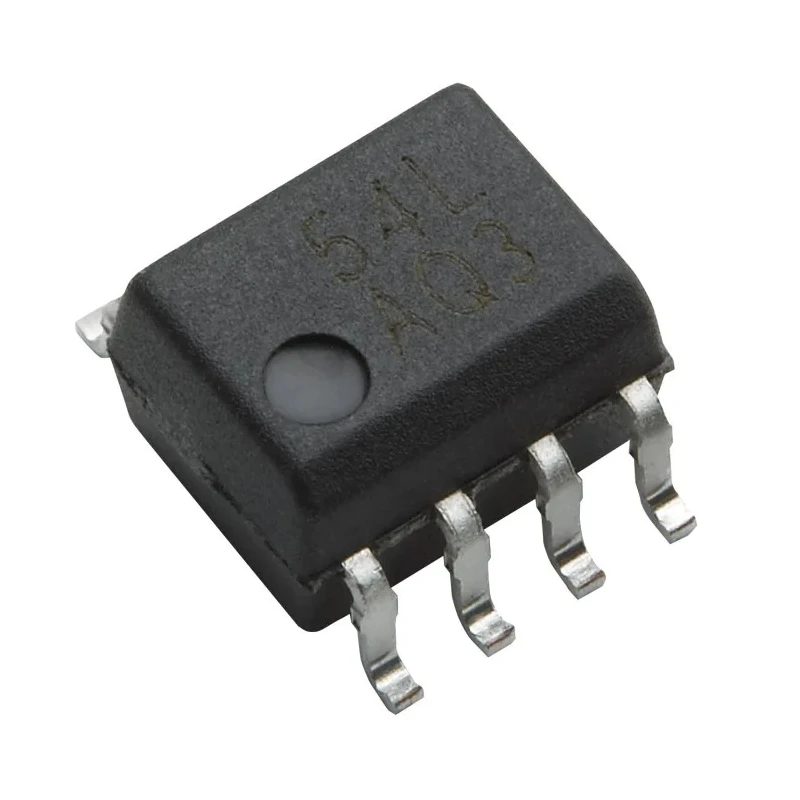

Broadcom DC Input 2-Channel Phototransistor Optocoupler Surface Mount 8-Pin SO-8 ACPL-054L-060E

Name: Broadcom DC Input 2-Channel Phototransistor Optocoupler Surface Mount 8-Pin SO-8 ACPL-054L-060E
Brand: Broadcom
SKU: 176952
Price: 6.87 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	ACPL-054L-060E
Mount Type	Surface
Output type	Phototransistor
Series	ACPL-054L
Maximum Operating Temperature	105°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Maximum input current	230mA
Number Of Channels	2
Standards/Approvals	IEC/EN/DIN EN 60747-5-5, CSA approval, RoHS
Maximum Forward Voltage	1.5V
Number of Pins	8
Input Current Type	DC
Maximum Current Transfer Ratio	200%
Minimum Current Transfer Ratio	0.93%

Key Features

Contains two independent input channels for dual optocoupling applications.
Surface mount type suitable for automated PCB assembly.
Maximum input current rating of 230 mA ensures reliable operation.
Operating temperature range from -40°C to 105°C supports harsh environments.
Low input forward voltage of 1.5 V reduces power consumption.
High current transfer ratio of up to 200% for efficient signal transfer.
Phototransistor output type compatible with TTL logic levels.
Compliance with IEC/EN/DIN EN 60747-5-5 and RoHS standards.

Product Description

Broadcom ACPL-054L-060E is a dual-channel optocoupler featuring DC input and phototransistor output in a surface mount 8-pin SO-8 package. Designed for industrial and electronic applications, this device provides electrical isolation between input and output circuits through an integrated LED and photon detector.

This optocoupler supports a wide supply voltage range from 5 V to 27 V and offers exceptional speed with a propagation delay as low as 1 microsecond at 5 V. Its separate photodiode bias and output transistor collector connections reduce base-collector capacitance and increase switching speed significantly compared to conventional photo-transistor couplers. The robust design ensures high common-mode rejection of 15 kV/μs at common-mode voltage up to 1500 V.

With a maximum input current of 230 mA and low forward voltage of 1.5 V, the device maintains low power consumption. It operates reliably within a temperature range of -40°C to +105°C, making it suitable for both industrial and commercial electronic systems. The phototransistor output is TTL compatible, facilitating easy integration in digital circuits.

The ACPL-054L-060E complies with IEC/EN/DIN EN 60747-5-5 standards, CSA approval, and is RoHS compliant for environmental safety. It is widely used in industrial automation, telecommunications, power supplies, and other applications requiring signal isolation and noise immunity.

Two independent isolation channels in a compact SO-8 package. Electrical insulation between input and output for protection and signal integrity. Low input drive current of approximately 3 mA reduces control circuit load.

High-speed switching suitable for digital data transmission up to 1 Mbps. Wide operating temperature and voltage range ideal for harsh environments. High reliability tested to established industrial standards. RoHS compliant for environmental and safety regulations.

Ideal for use in industrial control systems, automotive electronics (non-automotive standard), and general electronic applications. Explore more electronic components and Optocouplers in the EnvMart industrial catalog to find compatible and complementary products for your applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum input current rating for the ACPL-054L-060E is 230 mA, ensuring reliable operation in various applications.

This optocoupler operates reliably within a temperature range of -40°C to +105°C, making it suitable for harsh environments.

It features a phototransistor output type that is compatible with TTL logic levels, facilitating easy integration into digital circuits.

The maximum forward voltage for the ACPL-054L-060E is 1.5 V, which helps in reducing power consumption.

This model contains two independent channels, allowing for dual optocoupling applications.

The maximum current transfer ratio for the ACPL-054L-060E is up to 200%, which contributes to efficient signal transfer.

The ACPL-054L-060E complies with IEC/EN/DIN EN 60747-5-5 standards, has CSA approval, and is RoHS compliant.

This optocoupler has a propagation delay as low as 1 microsecond at 5 V, enabling high-speed switching suitable for digital data transmission.

It is packaged in a surface mount 8-pin SO-8 configuration, suitable for automated PCB assembly.

The device offers a high common-mode rejection of 15 kV/μs at a common-mode voltage of up to 1500 V.

This optocoupler is widely used in industrial automation, telecommunications, power supplies, and other applications requiring signal isolation and noise immunity.

The input current type for the ACPL-054L-060E is DC, which is standard for optocouplers.
