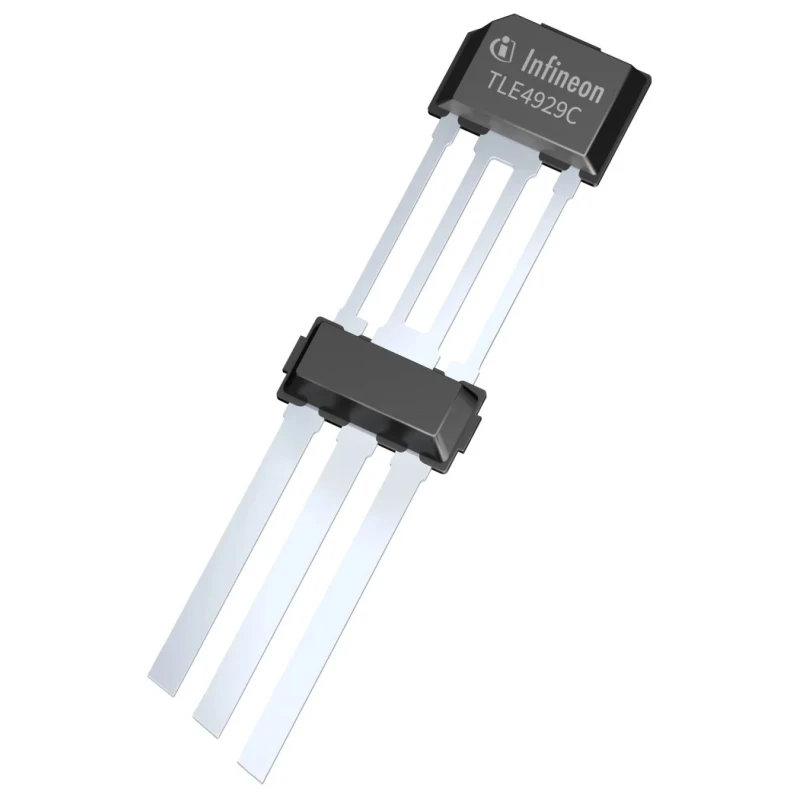

Infineon Through Hole Hall Effect Sensor 2.8 V 3.5 V I2C Interface SSO Package 3-Pin TLE4929CXHAM18NHAMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | TLE4929CXHAM18NHAMA1 |
| SENSITIVITY | 7.7LSB/mT |
| Technology | Analogue |
| Sensor Type | Hall Effect |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | TLE4929 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSO |
| Minimum Operating Temperature | -40°C |
| Interface Type | I2C |
| Pin Count | 3 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 2.8V |
| Supply Current | 3.4mA |
| Magnetic Type | Omnipolar |
Key Features
- The hall effect sensor operates over a temperature range from -40°C to 125°C.
- Utilizes omnipolar magnetic sensing technology for precise measurements.
- Supports a low supply current of 3.4 mA for energy-efficient operation.
- Comes in a compact SSO package measuring 2.9 mm by 1.6 mm by 1.1 mm.
- Features a 3-pin through hole mount for reliable PCB assembly.
- Includes programmable switching thresholds for improved accuracy.
- Incorporates a Stop-Start-Algorithm for dynamic speed sensing.
- Offers excellent magnetic stray-field robustness via differential sensing.
Product Description
Infineon TLE4929CXHAM18NHAMA1 is a through hole hall effect sensor designed for demanding industrial applications including hybrid powertrains, speed measurement, and position detection of tooth or pole wheels. It operates on a supply voltage range of 2.8 V to 3.5 V and features an I2C interface enabling precise digital communication.
This sensor adopts an analogue hall effect technology with omnipolar magnetic sensing, delivering high measurement accuracy and low signal jitter. Its compact SSO package with three pins is tailored for through-hole mounting, facilitating robust PCB assembly.
The device maintains reliable operation in extreme environmental conditions with a specified temperature range from -40°C up to 125°C. It consumes a low supply current of 3.4 mA, enhancing efficiency in embedded systems.
Designed with advanced features, the sensor includes a programmable switching threshold for added accuracy and a unique Stop-Start-Algorithm to manage varying speed conditions effectively. Its differential sensing principle enhances magnetic stray-field rejection, ensuring stable outputs in challenging electromagnetic environments.
Typical use cases involve automotive speedometers, industrial speed sensors in hybrid drivetrain systems, and other motion detection applications requiring high sensitivity and durability.
This hall effect sensor operates over a wide temperature range from -40°C to 125°C. It utilizes omnipolar magnetic sensing technology for accurate measurement. The low supply current of 3.4 mA preserves energy in embedded applications.
The compact SSO package dimensions are 2.9 mm length, 1.6 mm width, and 1.1 mm height. The device features a 3-pin through hole mount for stable PCB installation. Provides programmable switching thresholds and Stop-Start-Algorithm for enhanced accuracy.
Designed for industrial and automotive applications requiring high reliability. Set contains 1 Pc Infineon Through Hole Hall Effect Sensor TLE4929CXHAM18NHAMA1. Explore more sensors and electronic components in the Electronics & Electricals category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a temperature range from -40°C to 125°C, making it suitable for extreme environmental conditions.
It requires a supply voltage in the range of 2.8 V to 3.5 V for proper operation.
The supply current for this Hall Effect sensor is 3.4 mA, which supports energy-efficient operation.
It features an I2C interface, allowing for precise digital communication in embedded systems.
The compact SSO package measures 2.9 mm in length, 1.6 mm in width, and 1.1 mm in height.
This unit has a 3-pin configuration designed for through-hole mounting.
It utilizes analogue Hall Effect technology with omnipolar magnetic sensing for accurate measurements.
The sensitivity of this model is 7.7 LSB/mT, providing high measurement accuracy.
It is designed for industrial applications, including speed measurement and position detection in hybrid powertrains.
It includes programmable switching thresholds and a Stop-Start-Algorithm for improved measurement accuracy.
The country of origin for this Hall Effect sensor is India.
The maximum operating temperature for this Hall Effect sensor is 125°C.
