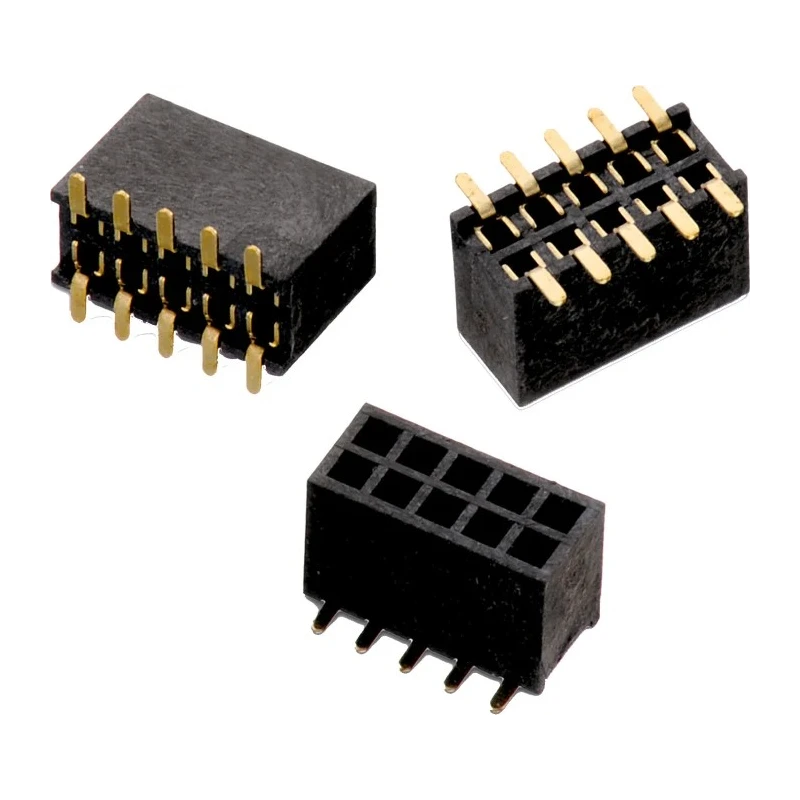

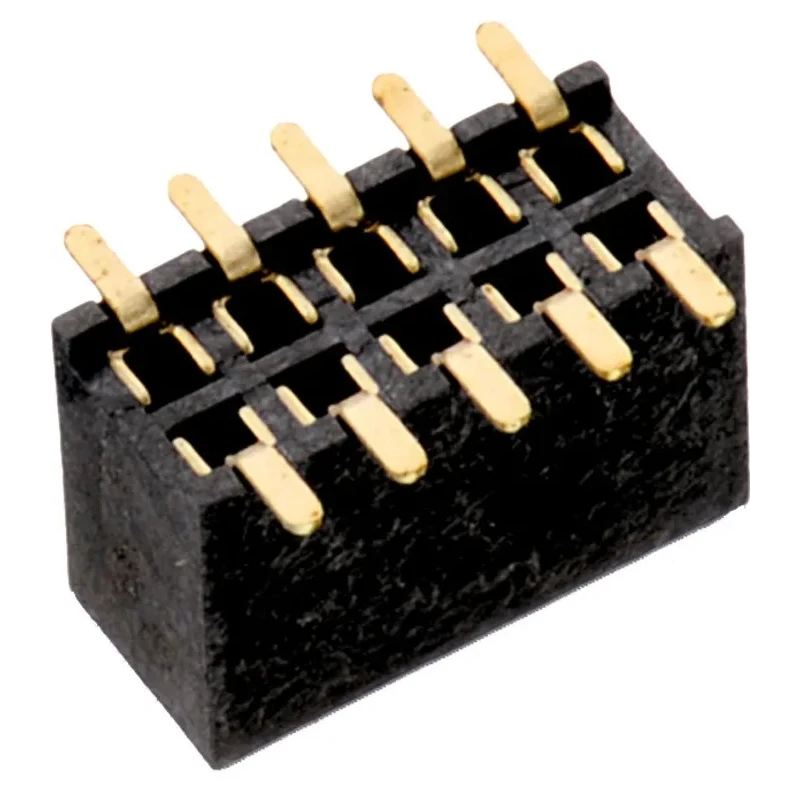

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, 1A, Gold Plated 62301621021

Name: Wurth Elektronik WR-PHD Series Straight Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, 1A, Gold Plated 62301621021
Brand: Wurth Elektronik
SKU: 173146
Price: 2.33 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Wurth Elektronik
Orientation	Straight
Current	1A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	WR-PHD
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Female
Connector System	Board-to-Board
Withstanding Voltage	500 V (AC)
Insulator Material	PA9T

Key Features

Constructed with polyamide housing material ensuring durability.
Features gold-plated copper alloy female contacts for reliable conductivity.
Supports current rating of 1 ampere at 100 volts voltage.
Designed for surface mount with solder termination type.
Operates in a wide temperature range from -40°C to 105°C.
Connector system is board-to-board with a 1.27 mm row pitch spacing.
Insulator material is high-grade PA9T to withstand mechanical stress.
Withstands voltage up to 500 V AC for enhanced safety.

Product Description

Wurth Elektronik 62301621021 PCB Socket from the WR-PHD series is designed as a straight surface mount connector with 16 female contacts arranged in 2 rows. Featuring a 1.27 mm pitch, this socket is optimal for secure board-to-board connections in compact electronic systems.

The housing is constructed from durable polyamide, specifically PA9T, which provides excellent mechanical strength and thermal resistance. The copper alloy contacts are gold-plated to ensure excellent conductivity and corrosion resistance even under demanding conditions.

Rated for 1 ampere current and 100 volts operation voltage, the socket supports reliable performance in various applications. It is engineered to withstand operating temperatures from -40°C to 105°C, making it suitable for industrial, manufacturing, and electronic assembly uses where temperature fluctuations occur.

This PCB socket uses solder termination for permanent and robust connection to the PCB surface. Its connector system is designed specifically for board-to-board interfaces, facilitating efficient signal transmission and mechanical stability.

Durable polyamide housing material provides mechanical resilience. Gold-plated copper alloy contacts ensure long-lasting conductivity. Surface mount with solder termination for secure PCB fixing. Operates reliably between -40°C and 105°C temperatures.

Rated for 1 A current and 100 V voltage fitting industrial demands. 1.27 mm pitch and 2-row layout for compact PCB designs. High-quality PA9T insulator material withstands mechanical stress. Withstand voltage capacity of 500 V AC for safety assurance.

Female contact gender suitable for board-to-board connector systems.

Wurth Elektronik’s WR-PHD series sockets cater extensively to electronics manufacturing, industrial automation, and embedded system applications. Their robust design ensures reliable interconnectivity, enabling high-quality electronic assembly production.
