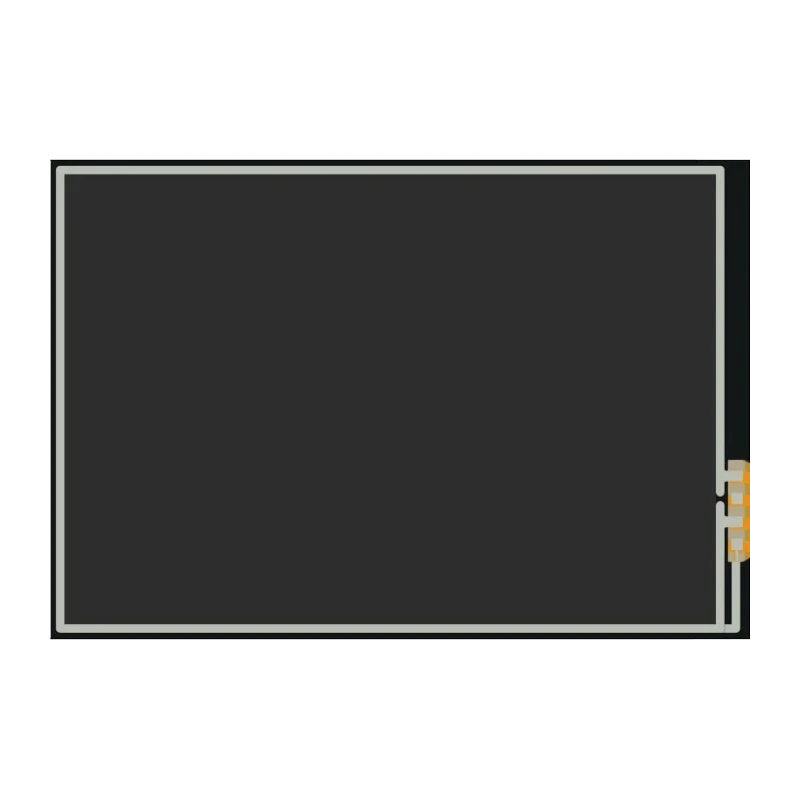

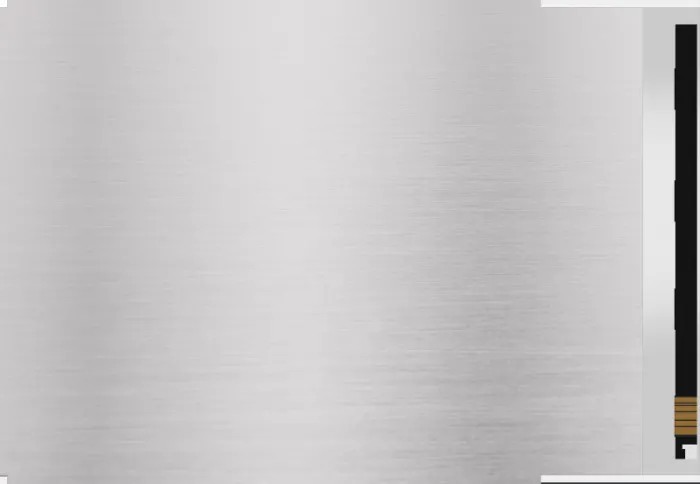

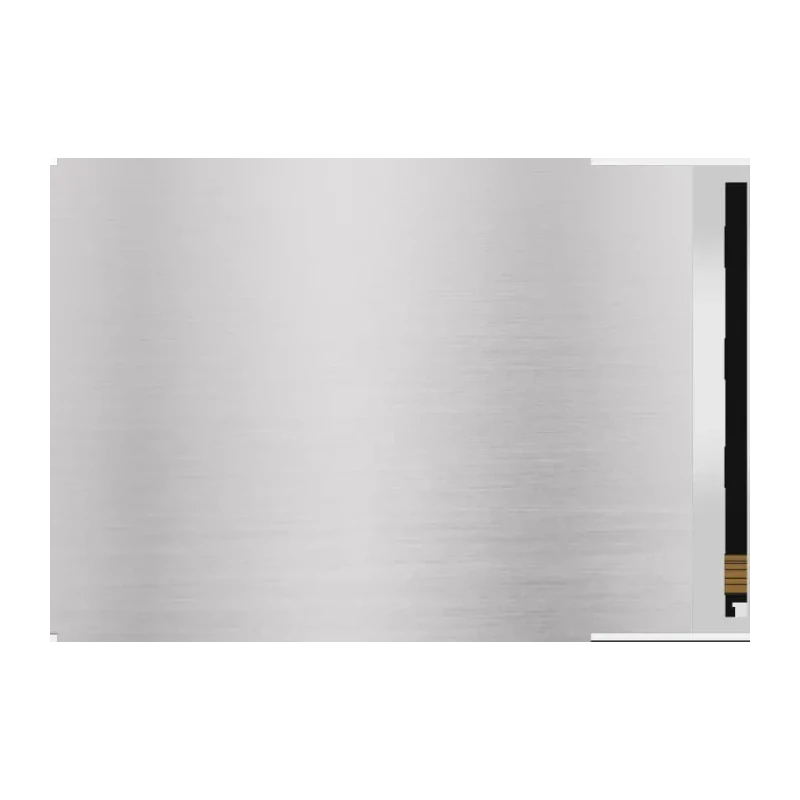

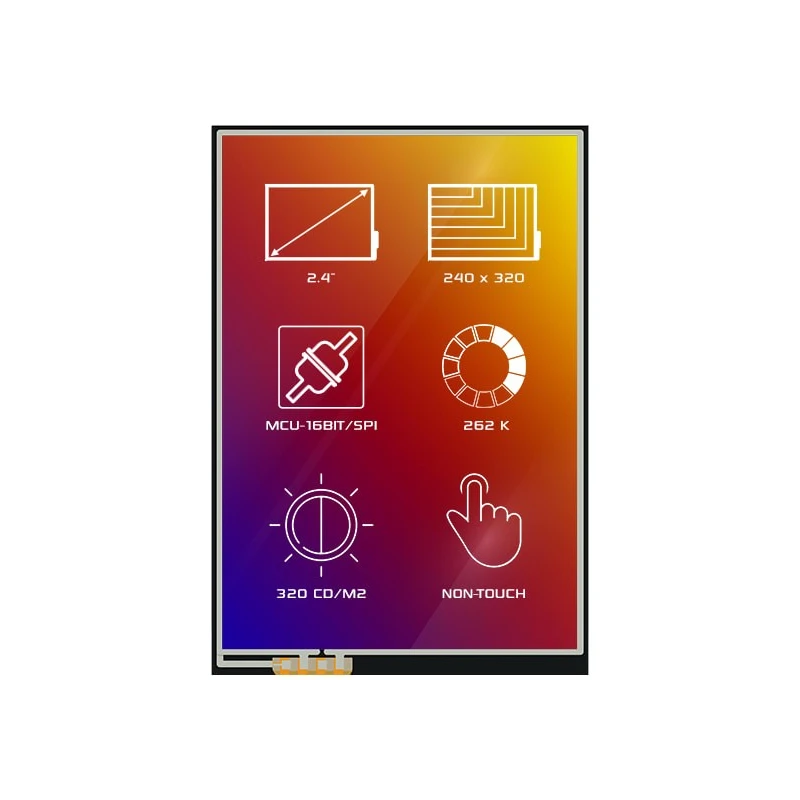

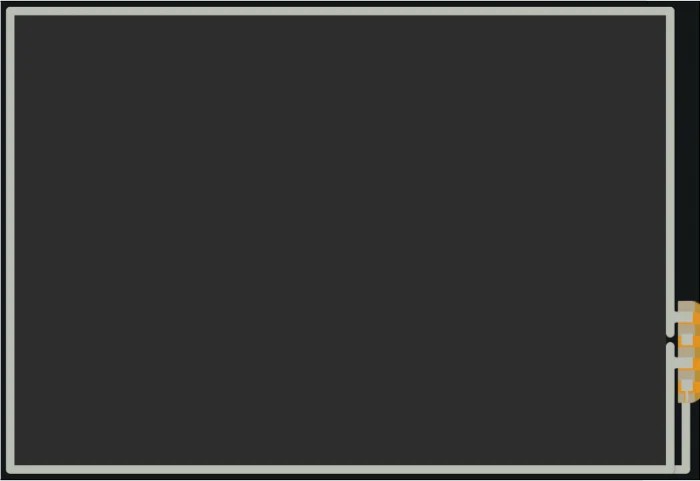

4D Systems TFT LCD Display, 60.96 mm Diagonal, 240 x 320 Pixel, SPI Interface, LED Backlight 4DLCD-24320240-IPS
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | TFT |
| Brand | 4D Systems |
| Current | 80mA |
| Height | 60.26mm |
| Model | 4DLCD-24320240-IPS |
| Depth | 48.96mm |
| Width | 42.72mm |
| Series | 4DLCD |
| Maximum Operating Temperature | 70°C |
| Brightness | 320cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | SPI |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | CE, RoHS Compliant |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.8V |
| Viewing Area Dimensions | 36.72 x 48.96 mm |
| Backlight Type | LED |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 800:1 |
| 800 | 1 |
| 4D Systems 4DLCD-24320240 TFT LCD Colour Display, 2.4in, 240 x 320pixelsBrand | 4D Systems |
Key Features
- The display features an LED backlight and is a non-touch IPS panel delivering wide viewing angles.
- Operating voltage ranges from 2.8V to 3.3V with a typical current consumption of 80mA.
- Compact viewing area dimensions of 36.72 x 48.96 mm with physical size of approximately 60.26 x 42.72 x 48.96 mm (H x W x D).
- Operating temperature range is -20°C to +70°C, suitable for industrial and embedded applications.
- Complies with CE and RoHS standards for safety and environmental regulations.
- Requires external processor and driver circuitry to operate as it is a raw TFT display module.
- IPS technology ensures wide viewing angles and excellent color reproduction.
- Manufactured in Australia maintaining high quality standards.
Product Description
4D Systems 4DLCD-24320240-IPS is a high-quality TFT LCD display module with a 60.96 mm diagonal IPS panel designed for industrial and embedded electronics applications. It incorporates an amorphous silicon Thin Film Transistor (TFT) IPS panel, driver IC, flexible printed circuit (FPC), and LED backlight unit, delivering a vivid 240 x 320 pixel resolution capable of displaying up to 262,000 colors. The IPS technology provides wide viewing angles and excellent color performance.
This display is a raw TFT module without an integrated processor, requiring an external controller and driver circuitry. It supports SPI interface for communication and operates at supply voltages between 2.8V and 3.3V with a current draw of approximately 80mA. The viewing area measures 36.72 mm by 48.96 mm, with a physical height of 60.26 mm and width of 42.72 mm. Brightness is rated at 320 cd/m² with a contrast ratio of 800:1, making it suitable for various lighting conditions.
The display is suitable for use in industrial, laboratory, manufacturing, and embedded systems environments where reliable visual output is required. It complies with CE and RoHS standards ensuring environmental and safety compliance, and can operate in temperatures ranging from -20°C to +70°C. As a non-touch module, it is ideal for applications not requiring touch functionality.
Note that this module requires external control hardware to operate and is recommended for integration into custom display solutions or development kits. 4D Systems also offers intelligent display module variants for turnkey solutions with onboard processors.
The product carries CE and RoHS compliance certifications. Its LED backlight ensures consistent illumination for display clarity. The IPS panel technology provides excellent color fidelity and broad viewing angles. This raw display module is ideal for experienced developers and industrial users with custom controller integration.
Designed and manufactured in Australia, it meets stringent quality standards. Explore EnvMart's electronics category for similar LCD display modules and embedded visual components for industrial and commercial use.
