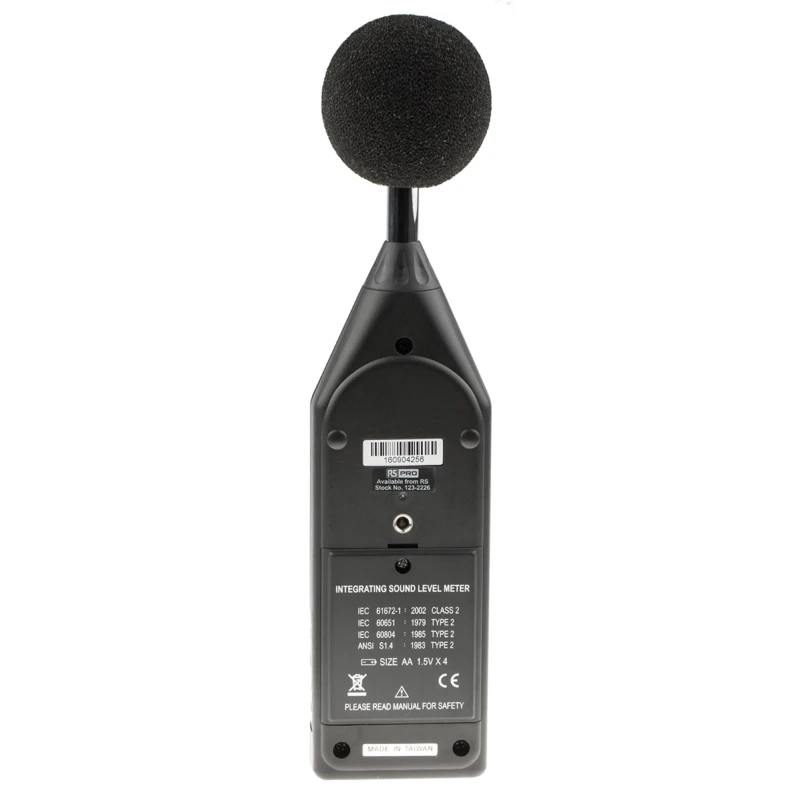

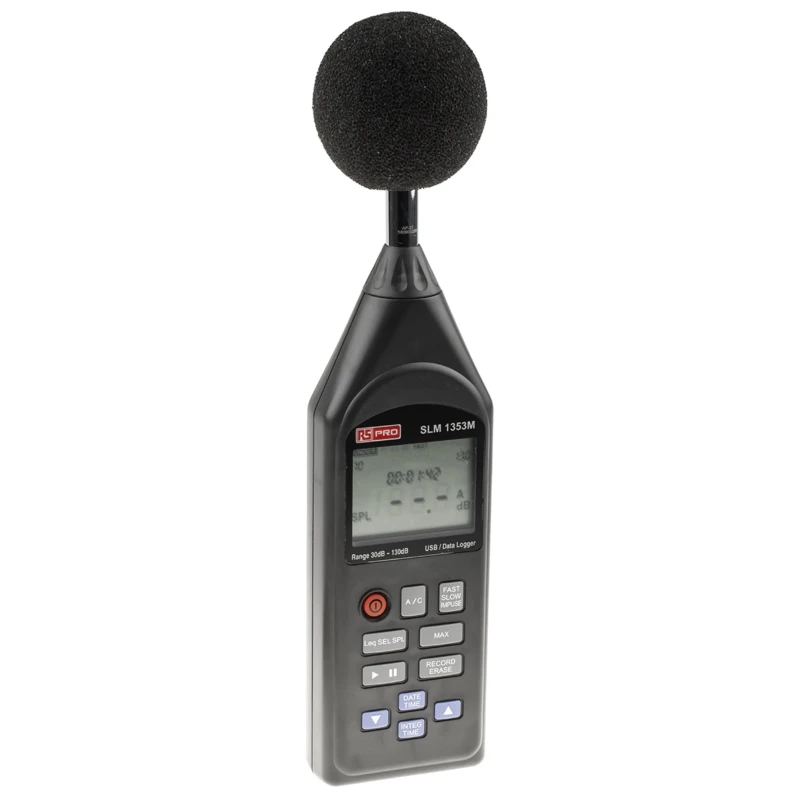

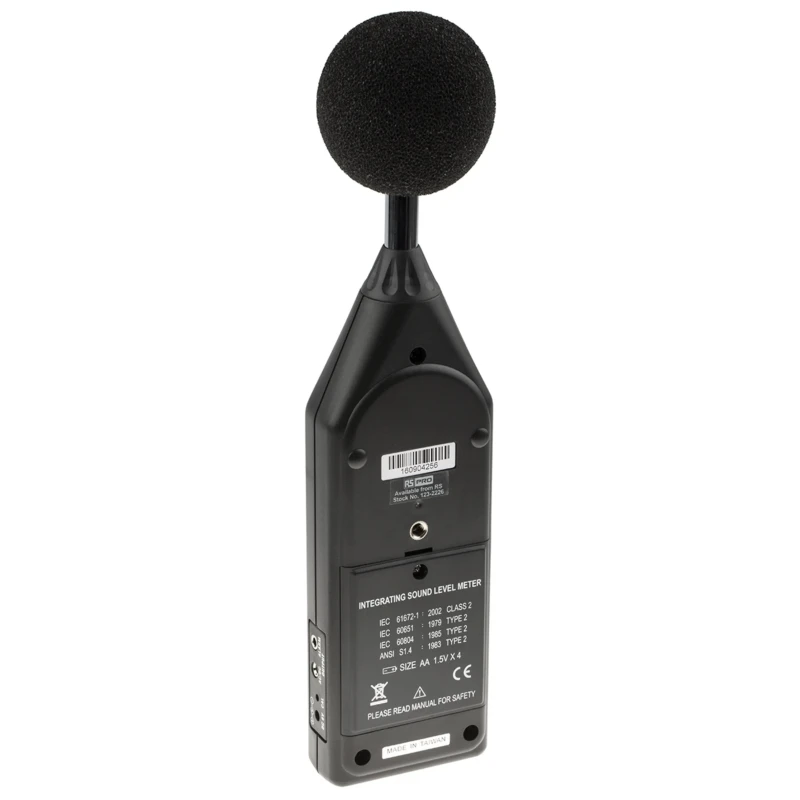

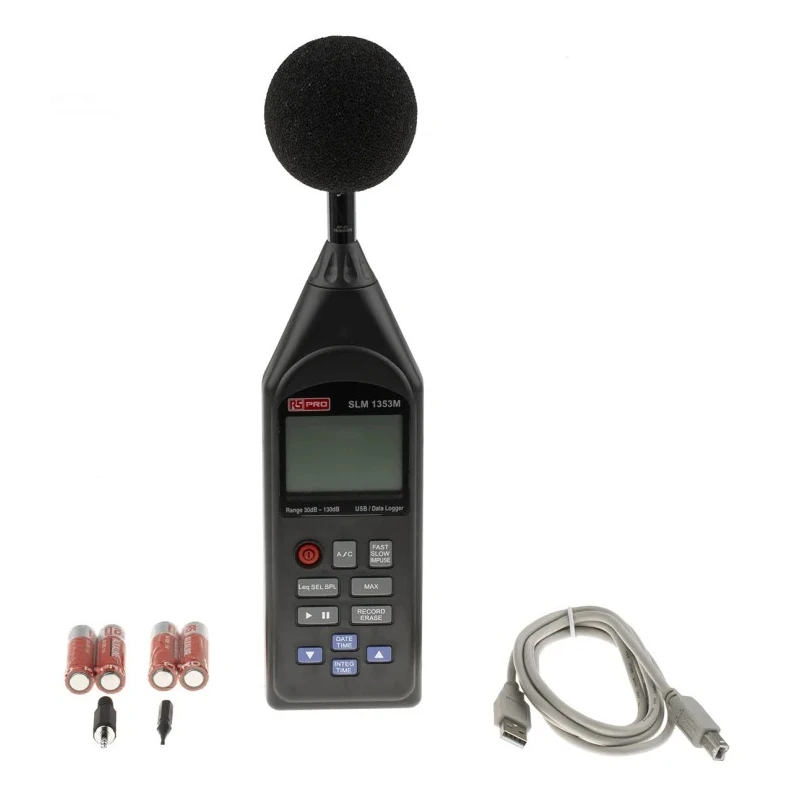

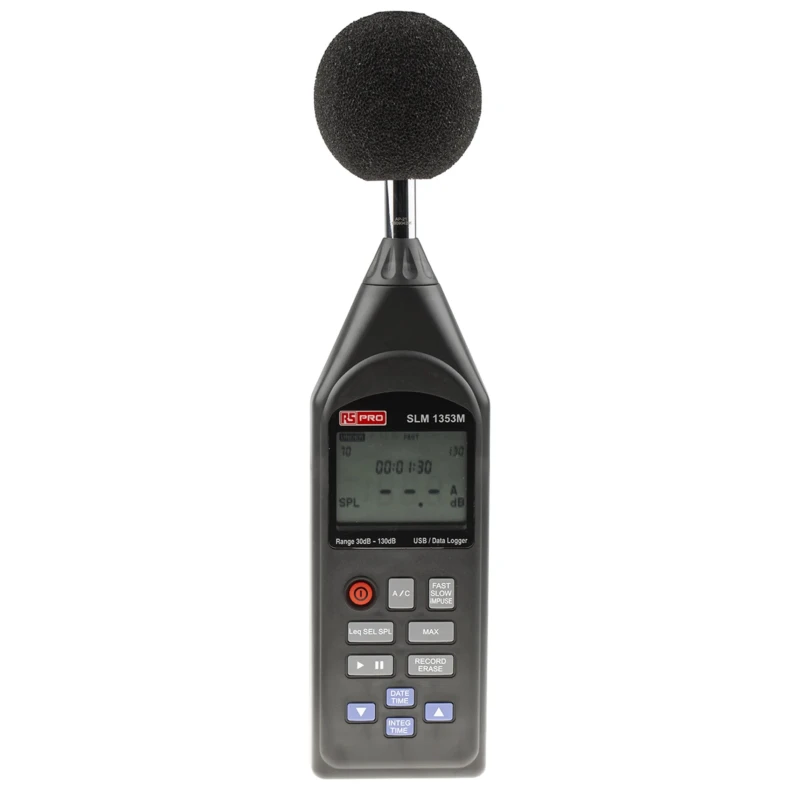

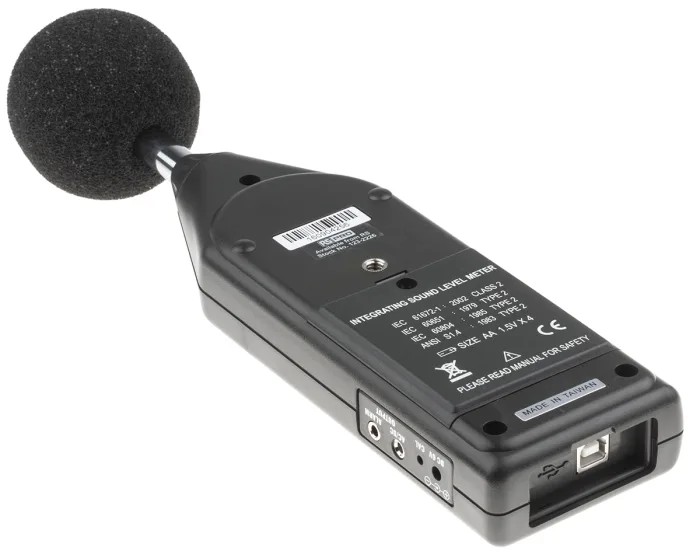

RS PRO Data Logging Sound Level Meter 30 dB to 130 dB 8 kHz Max USB Interface SLM1353M

RS PRO SLM1353M is a professional-grade integrating sound level meter designed for precise noise measurement in industrial and environmental settings. Measuring sound pressure levels from 30 dB to 130 dB with a maximum frequency response of 8 kHz, this instrument delivers accurate and reliable data logging capabilities.

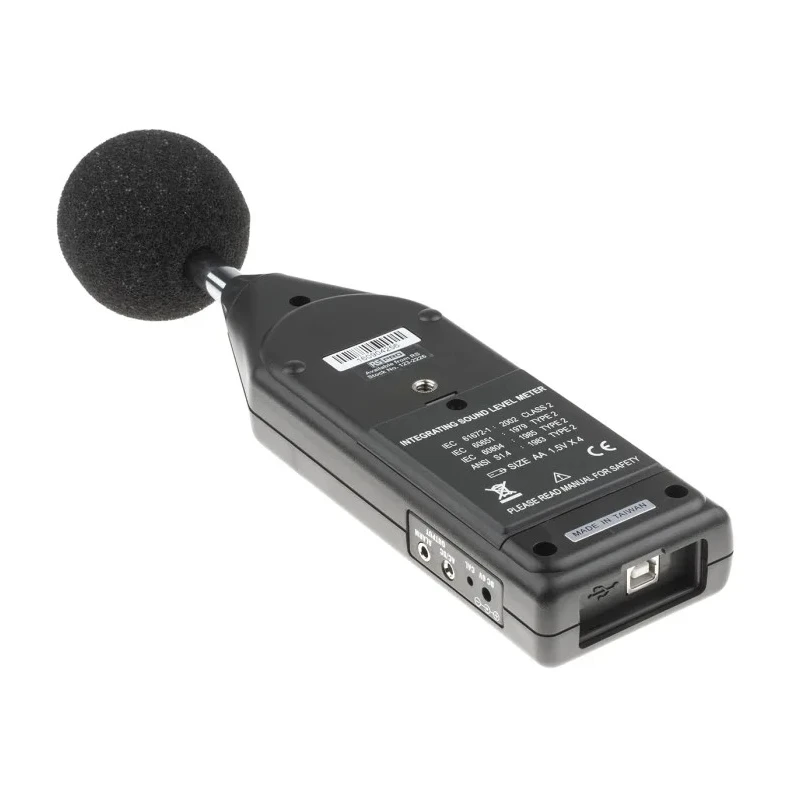

Equipped with a USB interface, the SLM1353M allows users to download recorded data or perform real-time analysis on computers efficiently. Both AC and DC signal outputs are accessible via a standard 3.5 mm coaxial socket, compatible with frequency analyzers, level recorders, and FFT or graphic analyzers.

This meter includes key measured parameters such as Leq, SEL, SPL MAX/MIN, Peak Hold, and various percentile levels (L05, L10, L50, L90, L95), which can be selectively viewed to analyse dynamic noise environments. Its dynamic range spans 60 dB across five measurement ranges, enabling detailed ambient and sound system assessments.

The instrument features A and C frequency weightings and selectable impulse, fast, and slow dynamic characteristics, making it adaptable to a diversity of acoustic measurement requirements. It supports extensive data logging with capacity for 32,000 records, providing valuable historical noise data.

Compact in size and weighing approximately 310 g, this meter is designed for field portability. Its real-time clock with calendar function timestamps data accurately for compliance and detailed reporting.

Typical applications include environmental noise monitoring, workplace safety evaluations in mechanical and manufacturing industries, and sound system performance testing in entertainment venues. The RS PRO SLM1353M is RoHS compliant and meets ANSI S1.4:1983 Type 2 and IEC 61672-1:2013 Class 2 standards, ensuring high measurement accuracy and reliability.

The device supports a dynamic range of 60 dB for accurate noise level detection. Five measurement ranges cover 30 to 130 dB sound levels. Includes A and C frequency weightings for versatile sound profiling. Features impulse, fast, and slow dynamic characteristics to suit different sound environments.

Capable of logging up to 32,000 records for extended monitoring. USB interface enables data transfer and real-time analysis via computer. Sound level alarm output enhances user alerts for threshold breaches. Real time clock with calendar supports accurate timestamping of recordings.

Compact dimensions of 265 x 72 x 21 mm and approximately 310 g weight for portability. Compliant with ANSI S1.4:1983 Type 2 and IEC 61672-1:2013 Class 2 accuracy standards. Explore EnvMart's extensive selection of advanced Sound Level Meters and measurement instruments for industrial, environmental, and laboratory use.
