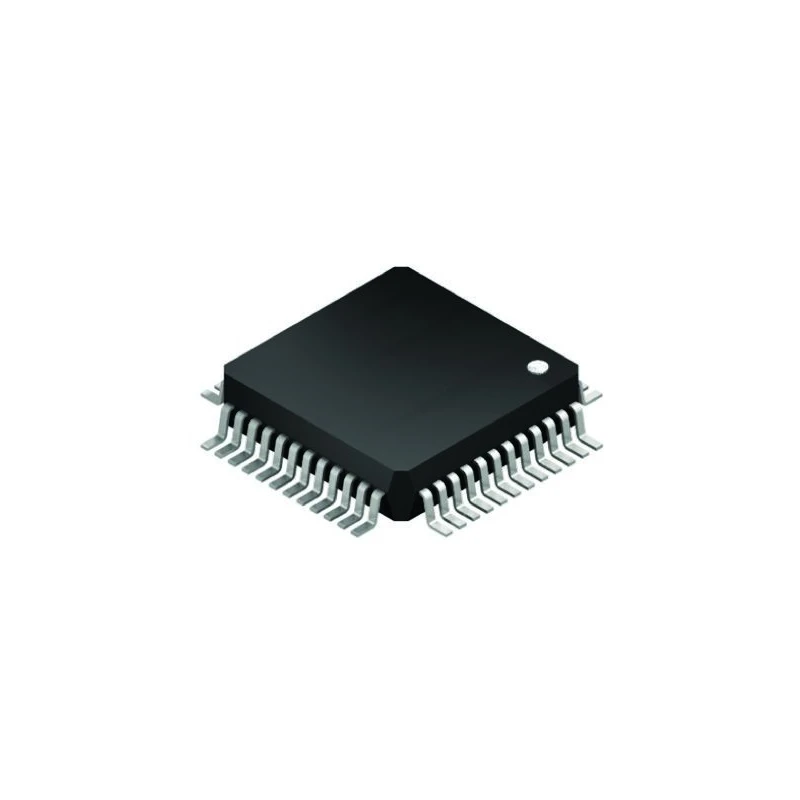

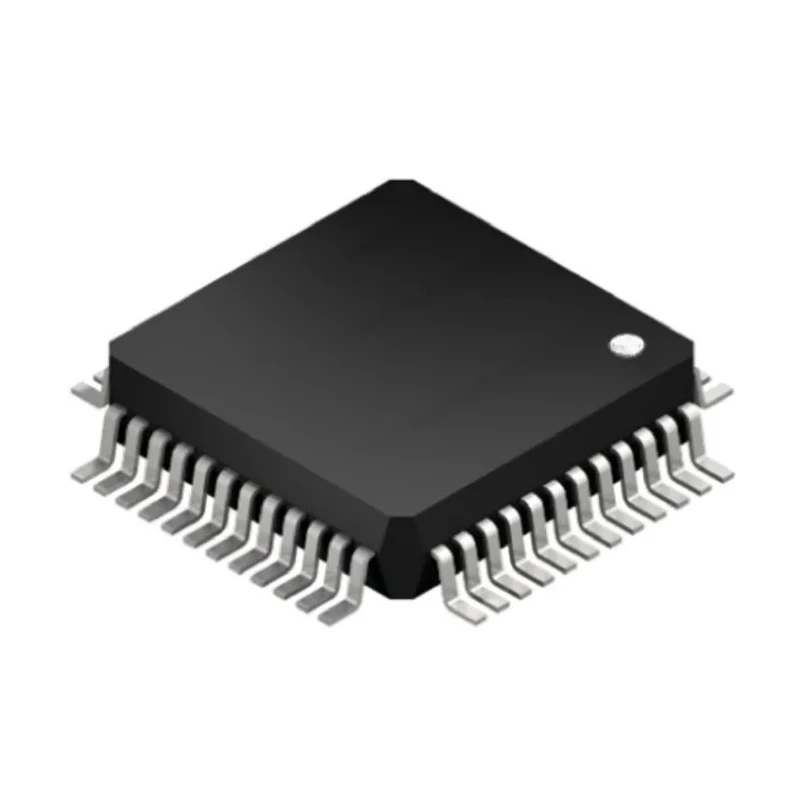

NXP LPC1224FBD48/121,1 32 bit ARM Cortex M0 Microcontroller, 30 MHz, 32kB FLASH, 48-Pin LQFP

The NXP LPC1224FBD48/121,1 is a high-performance 32 bit ARM Cortex M0 microcontroller designed for embedded control applications requiring low power consumption and high efficiency. It integrates a 30 MHz ARM Cortex M0 core with a 32kB FLASH program memory and 4kB RAM, enabling compact code footprint and fast execution.

This microcontroller is housed in a space-saving 48-pin LQFP package measuring 7.1 mm by 7.1 mm with 1.45 mm height, making it suitable for applications with stringent size constraints. It features 39 programmable input/output pins and 8 channels of 10-bit ADC, supporting precise analog data acquisition and control.

The LPC1224 operates at a voltage range between 3.0V and 3.6V and offers a maximum power dissipation of 1.5 watts, making it efficient for battery-operated and low-power embedded systems. Its operating temperature range from -40°C to 85°C allows reliable function in industrial and harsh environmental conditions.

The microcontroller supports 2 analogue comparators and 4 timers, providing flexibility in timing and analog interfacing tasks. Furthermore, its Thumb® instruction set helps achieve maximum code density, making it highly suitable for compact applications.

NXP’s LPC122 series offers a robust ARM Cortex-M0 architecture, combining the performance of a 32-bit processor with power efficiency typically found in 8/16-bit microcontrollers. This makes it ideal for designers focusing on cost-effective, small footprint embedded applications such as consumer electronics, industrial controls, and low-power devices.

Features ARM Cortex M0 32-bit core with RISC instruction set architecture. Includes 32kB of FLASH program memory and 4kB RAM memory. Maximum clock frequency of 30 MHz ensuring efficient processing. Comes in 48-pin LQFP surface mount package with a compact 7.1 mm x 7.1 mm footprint.

Supports up to 39 programmable I/Os and 8 × 10-bit ADC channels. Operates across a voltage range of 3.0V to 3.6V with power dissipation of 1.5W max. Extends operating temperature from -40°C to +85°C suitable for industrial environments.

Includes 2 analogue comparators and 4 timers for versatile embedded control. Ideal for low power applications with integrated sleep modes to maximize battery life.

This microcontroller is suitable for a wide range of industrial, commercial, and consumer embedded system applications. It balances power efficiency, processing capability, and small package size for advanced design requirements. Explore more NXP Microcontrollers and electronic components at EnvMart for your embedded system development needs.
