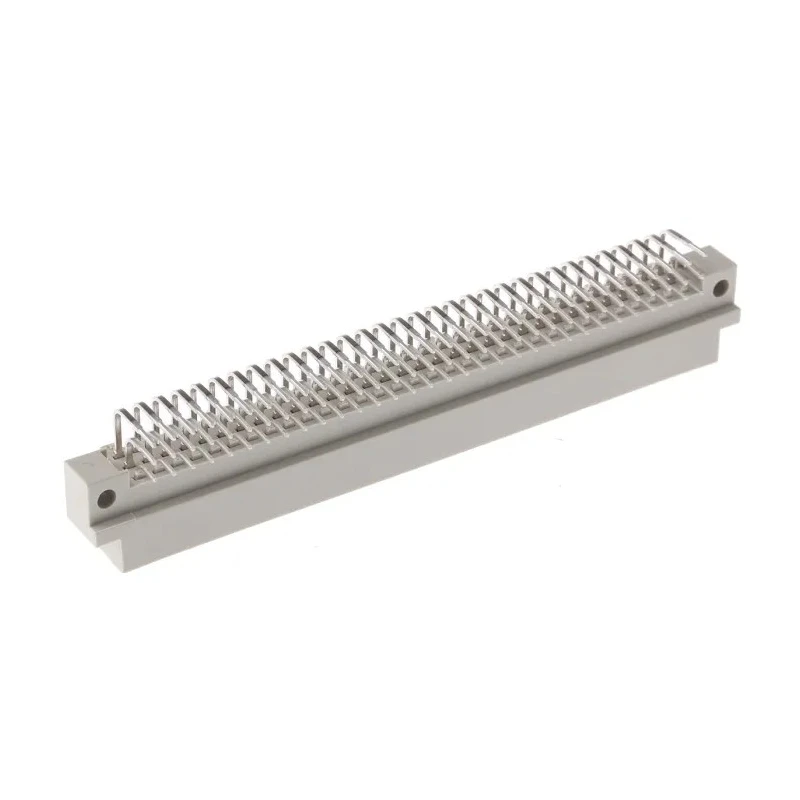

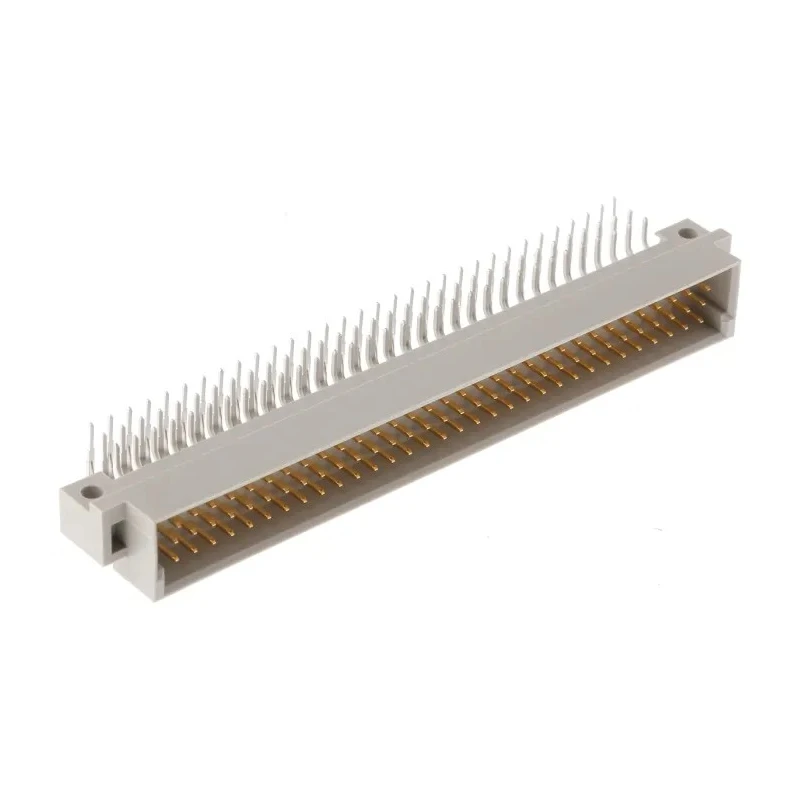

HARTING DIN 41612 96 Way 2.54 mm Pitch Type Through Hole, Type C/2, Solder Class C2, 3 Row Male Right Angle 09031966951

HARTING 09031966951 DIN 41612 Connector is a 96 Way, 2.54 mm pitch backplane male connector designed for through hole PCB mounting. This high-quality connector features a Type C/2 variant with solder termination Class C2 and is configured in a 3 row arrangement in right angle orientation, ideal for compact and reliable PCB interconnections in industrial electronics.

Constructed with gold over nickel plated copper alloy contacts, it ensures excellent conductivity and corrosion resistance, supporting currents up to 2A and a maximum contact resistance of 20 milliohms. The housing is made from robust polybutylene terephthalate, a thermoplastic resin reinforced with glass fiber, providing durability and resistance to harsh operating environments.

The connector operates reliably across a wide temperature range from -55°C to +125°C, making it suitable for use in demanding environments such as industrial machinery, telecommunications, control systems, and aerospace electronics. Its through hole mounting method guarantees a strong mechanical hold on PCB boards.

This DIN 41612 type C backplane signal connector is designed for long service life with a good mating cycle and economical performance, making it a preferred choice for industrial and commercial electronic systems requiring secure, high-density interconnections.

The product is manufactured in Germany, reflecting strict quality controls and excellent material standards. Mating is designed first at contact positions a1 and a31, ensuring optimal connection integrity. This connector complies with DIN 41612 series standards but has no additional certifications.

Designed with 96 contacts arranged in 3 rows for robust signal connectivity. Type C/2 sub type ensures reliable mechanical and electrical performance. Gold over Nickel plated copper alloy contacts for superior conductivity and corrosion resistance.

Polybutylene Terephthalate housing material offers durability and heat resistance. Supports operating temperatures from -55°C to 125°C for versatile applications. Rated for 2A current and maximum contact resistance of 20mΩ.

Through hole mount type facilitates secure PCB integration. Right angle male connector suitable for compact, high-density installations. Class C2 solder termination ensures dependable electrical connection and assembly integrity.

Manufactured in Germany to high quality standards. Explore more DIN 41612 Connectors and related electronic components on EnvMart for your industrial and manufacturing needs.
