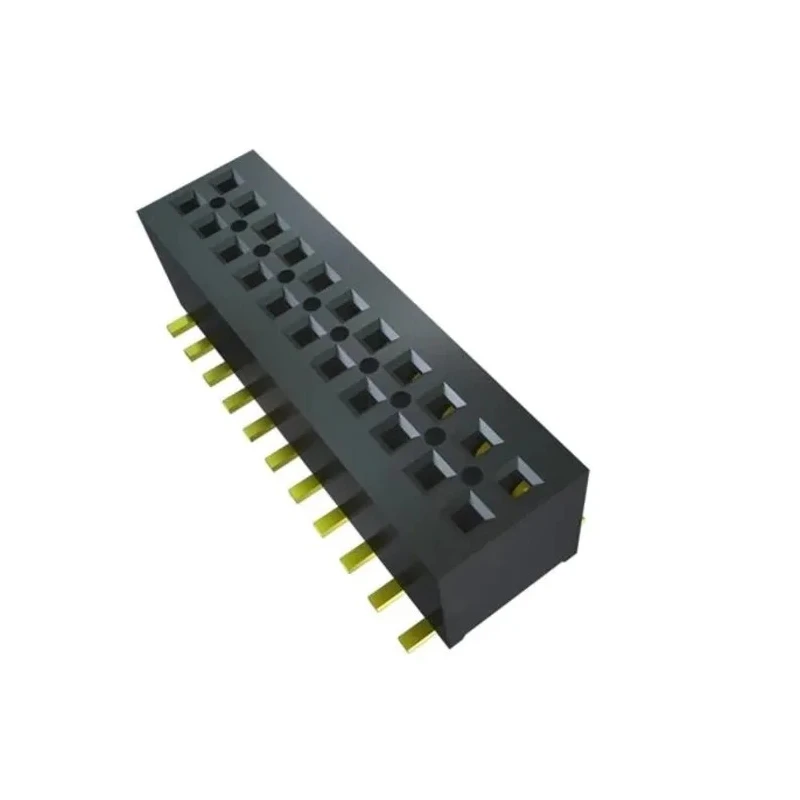

Samtec MLE Series Right Angle Surface PCB Socket 10-Contact 2 Row 1 mm Pitch Solder MLE-105-01-G-DV-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec MLE Series Right Angle Surface PCB Socket 10-Contact 2 Row 1 mm Pitch Solder MLE-105-01-G-DV-P-TR

Name: Samtec MLE Series Right Angle Surface PCB Socket 10-Contact 2 Row 1 mm Pitch Solder MLE-105-01-G-DV-P-TR
Brand: Samtec
SKU: 172152
Price: 3.32 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	310V
Brand	Samtec
Orientation	Right Angle
Current	2.9A
Model	MLE-105-01-G-DV-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	MLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Cost-Effective Single Beam Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	10
Connector System	Board-to-Board

Key Features

Features a cost-effective single beam socket strip with a dual vertical row configuration.
Provides reliable board-to-board connection with a 310V voltage rating.
Constructed with liquid crystal polymer housing for durability.
Beryllium copper alloy contacts plated with gold for excellent conductivity and corrosion resistance.
Supports a continuous current of 2.9A for efficient power handling.
Surface mount type suitable for compact PCB assembly.
Operating temperature range from -55°C to 125°C for broad environmental tolerance.
Pitch between contacts is precisely 1 mm for high-density applications.

Product Description

Samtec MLE-105-01-G-DV-P-TR is a right angle surface PCB socket designed for high-density electronic applications. It incorporates 10 contacts arranged in 2 rows, with a 1 mm pitch solder termination ensuring precise and reliable connections.

This PCB socket is constructed using liquid crystal polymer housing material, providing robustness and stability in demanding environments. The contacts are made from beryllium copper alloy, plated with gold to maximize electrical conductivity and minimize corrosion.

The socket supports a substantial current rating of 2.9A and an operating voltage of 310V, making it suitable for a variety of industrial and commercial electronics applications. Its surface mount design and right angle orientation allow for versatile PCB configurations and efficient board-to-board connections.

Designed for durability, this socket operates reliably within a broad temperature range from -55°C to 125°C. The dual vertical row configuration with a pitch of 1 mm meets the precision requirements of modern electronic manufacturing.

Features a cost-effective single beam socket strip with a dual vertical row configuration. Reliable board-to-board connector system rated for 310V at 2.9A current. Durable liquid crystal polymer housing ensures long service life.

Beryllium copper alloy gold-plated contacts for superior electrical performance. Compact right angle surface mount design for flexible PCB layouts. Wide operating temperature range from -55°C to 125°C supports various environments.

1 mm contact pitch supports high-density PCB applications.

This Samtec PCB socket series is ideal for electronic manufacturing, industrial automation, instrumentation, and embedded system applications where reliable electrical connections and durability are critical. It is suitable for use in laboratory, HVAC, manufacturing, commercial electronics, and other technical fields.
