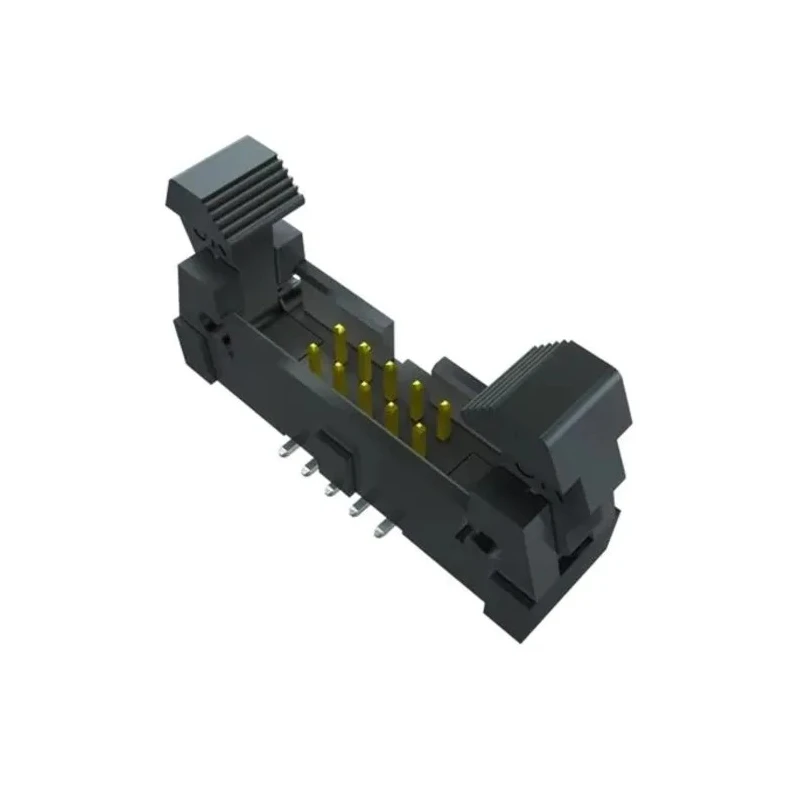

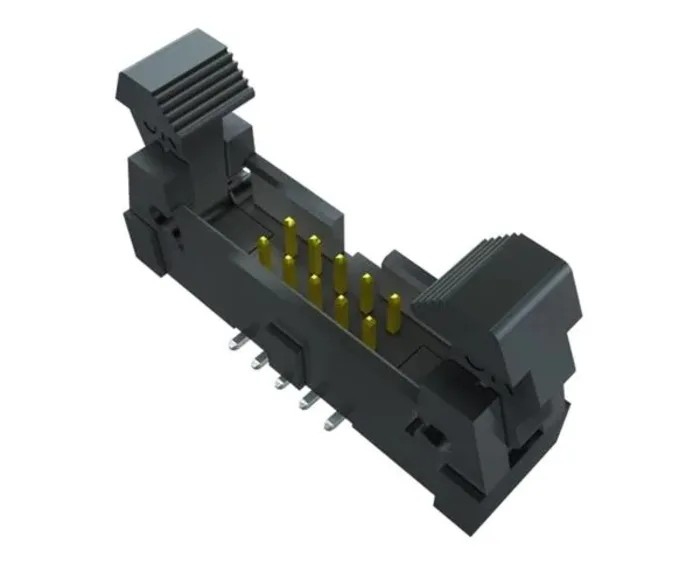

Samtec 10-Way 2-Row Shrouded Male PCB Header Surface Mount 1.27mm Pitch EHF-105-01-L-D-SM-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec 10-Way 2-Row Shrouded Male PCB Header Surface Mount 1.27mm Pitch EHF-105-01-L-D-SM-P-TR

Name: Samtec 10-Way 2-Row Shrouded Male PCB Header Surface Mount 1.27mm Pitch EHF-105-01-L-D-SM-P-TR
Brand: Samtec
SKU: 172123
Price: 6.03 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	EHF-105-01-L-D-SM-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHF
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold, Tin
Number of Contacts	10
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 10 contacts arranged in 2 rows for efficient PCB connections.
Surface mount type with shrouded design for enhanced durability.
Contacts plated with gold and tin for superior conductivity and corrosion resistance.
Constructed using phosphor bronze contacts and liquid crystal polymer housing for robustness.
Supports operating temperatures from -55°C to 125°C for versatile environments.
Termination made using IDC type ensuring reliable cable connections.
Offers straight orientation for simplified PCB layout integration.
Packaged in tape and reel format suitable for automated pick and place assembly.

Product Description

Samtec EHF-105-01-L-D-SM-P-TR is a high-quality 10-way PCB header with 2 rows featuring a shrouded male connector specifically designed for surface mount technology applications. It offers a precise 1.27mm pitch that enables compact and reliable connections on printed circuit boards.

This series utilizes phosphor bronze contacts with a plating of light selective gold over the contact area and matte tin on tails to ensure excellent electrical performance and mechanical endurance. The housing is made of liquid crystal polymer, providing high durability and stability under demanding conditions.

The product supports a wide operating temperature range from -55°C to 125°C, making it suitable for diverse industrial and commercial electronics environments. Its IDC termination type allows for efficient and secure cable interfacing.

The connector orientation is straight, simplifying PCB design and assembly processes. The shrouded design protects contacts during handling and installation, enhancing overall connector reliability.

Packaged in tape and reel format, it is compatible with automated assembly lines, ensuring streamlined manufacturing and reduced handling errors. Features 10 contacts arranged in 2 rows for efficient PCB connections. Surface mount type with shrouded design for enhanced durability.

Contacts plated with gold and tin for superior conductivity and corrosion resistance. Constructed using phosphor bronze contacts and liquid crystal polymer housing for robustness. Supports operating temperatures from -55°C to 125°C for versatile environments.

Termination made using IDC type ensuring reliable cable connections. Offers straight orientation for simplified PCB layout integration. Packaged in tape and reel format suitable for automated pick and place assembly.

This PCB header is widely used in industrial electronics, telecommunications, and computing devices, enabling efficient and secure connections for complex circuitry. Its robust construction and versatile specifications make it suitable for applications in manufacturing, automation, and laboratory settings.

Explore more PCB Headers and connectors from Samtec and other leading brands in EnvMart's electronics components category for comprehensive solutions.
