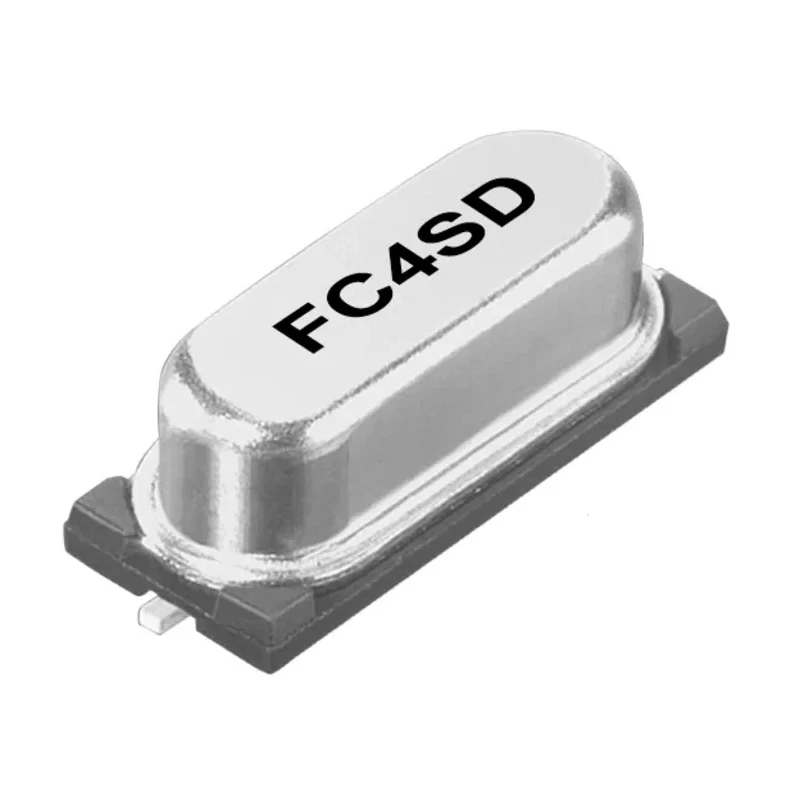

Abracon 3.579545 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.5 mm Height x 13.5 mm Length x 5 mm Width FC4SDCBLF3.579545-T1

Free Delivery in India | Lowest Global Shipping Charges

Abracon 3.579545 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.5 mm Height x 13.5 mm Length x 5 mm Width FC4SDCBLF3.579545-T1

Name: Abracon 3.579545 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.5 mm Height x 13.5 mm Length x 5 mm Width FC4SDCBLF3.579545-T1
Brand: Abracon
SKU: 171898
Price: 0.19 USD
Availability: InStock



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	4.5mm
Length	13.5mm
Model	FC4SDCBLF3.579545-T1
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	FC4SD
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	3.579545MHz
Load Capacitance	18pF

Key Features

This crystal operates at a standard frequency of 3.579545 MHz with a frequency tolerance of ±30 ppm.
It features a surface mount package type with 2 pins for easy PCB mounting.
The load capacitance is set at 18 pF ensuring stable oscillation.
Operating temperature range spans from -20°C to +70°C for reliable performance in diverse environments.
The crystal complies with RoHS standards, ensuring environmental safety.
Packaging is supplied as Tape & Reel, convenient for automated assembly.
Series designation is FC4SD with a resistance weld seal and SN, Ag3.0, Cu0.5 termination finish.

Product Description

Abracon FC4SDCBLF3.579545-T1 is a 3.579545 MHz Surface Mount 2-Pin Crystal designed for precise frequency control in electronic circuits. Its ±30 ppm frequency tolerance and ±50 ppm frequency stability ensure accurate performance across varying conditions.

This crystal has a load capacitance of 18 pF and a shunt capacitance of approximately 7 pF, making it suitable for oscillators and timing devices in various industrial and commercial electronics applications.

The compact surface mount package measures 13.5 mm in length, 5 mm in width, and 4.5 mm in height, allowing efficient PCB space utilization. Packaged in Tape & Reel format, it supports high-volume manufacturing processes.

Operating reliably between temperatures of -20°C and 70°C, it meets RoHS environmental compliance standards and is part of the FC4SD series with a resistance weld seal and termination finishes of Sn, Ag3.0, and Cu0.5 for durability and solderability.

Typical applications include industrial electronics, consumer devices, communication equipment, and other environments requiring stable, precise frequency sources. This crystal operates at a standard frequency of 3.579545 MHz with a frequency tolerance of ±30 ppm.

It features a surface mount package type with 2 pins for easy PCB mounting. The load capacitance is set at 18 pF ensuring stable oscillation. Dimensions include a length of 13.5 mm, width of 5 mm, and height of 4.5 mm for compact integration.

Operating temperature range spans from -20°C to +70°C for reliable performance in diverse environments. The crystal complies with RoHS standards, ensuring environmental safety. Packaging is supplied as Tape & Reel, convenient for automated assembly.

Series designation is FC4SD with a resistance weld seal and SN, Ag3.0, Cu0.5 termination finish. Discover more high-quality crystal components and detailed technical specifications in the Electronics & Electricals category at EnvMart.
