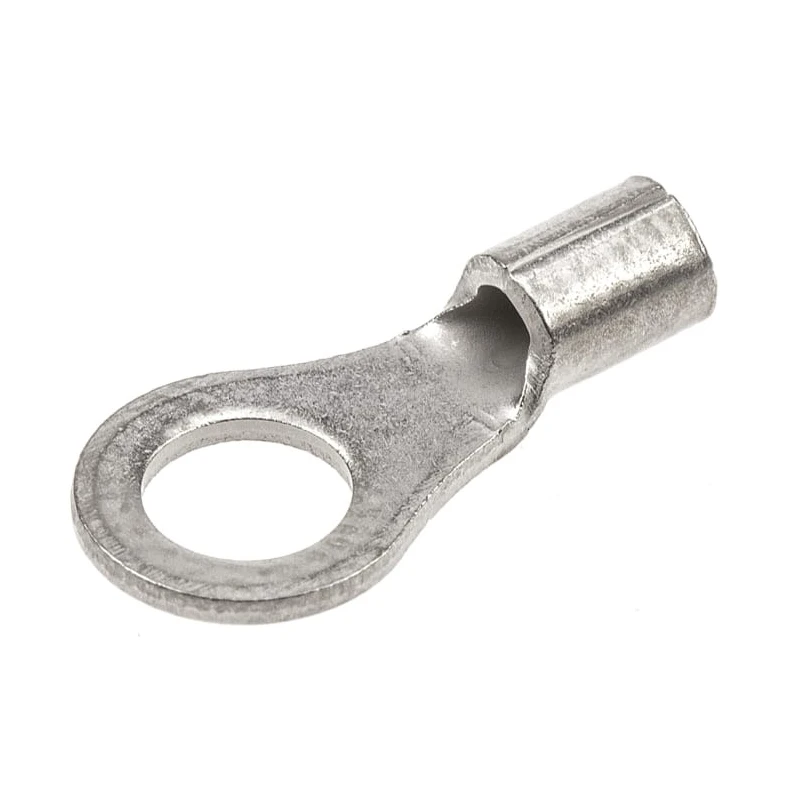

TE Connectivity STRATO-THERM Uninsulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG 14.58mm Length 0.79mm Thickness 322798

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity STRATO-THERM Uninsulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG 14.58mm Length 0.79mm Thickness 322798

Name: TE Connectivity STRATO-THERM Uninsulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG 14.58mm Length 0.79mm Thickness 322798
Brand: TE Connectivity
SKU: 171750
Price: 0.89 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
THICKNESS	0.79mm
Model	322798
Insulation	Uninsulated
Overall Length	14.58mm
Contact Material	Copper
Series	STRATO-THERM
Maximum Operating Temperature	343°C
Contact Plating	Nickel
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	7.14mm
Inner Ring Diameter	4.34mm
Stud Size	M4
TE Connectivity Uninsulated Crimp Ring Terminal, 5mm Stud SizeBrand	TE Connectivity

Key Features

Constructed from nickel-plated electrolytic copper for durability and conductivity.
Provides secure crimping with serrations inside the barrel to maximize electrical contact area.
Uninsulated design suitable for high-temperature applications.
Compatible with solid and stranded conductors ranging from 22 AWG to 16 AWG.
Maximum operating temperature of 343°C enhances performance in demanding conditions.
Outer ring diameter measures 7.14mm while inner ring diameter is 4.34mm.
Ideal for industrial, laboratory, and electrical equipment applications requiring reliable connections.

Product Description

TE Connectivity 322798 STRATO-THERM Uninsulated Ring Terminal is engineered for demanding electrical and industrial environments requiring high temperature resistance up to 343°C. Designed for wire sizes from 22 AWG to 16 AWG with an M4 stud size, this ring terminal features a robust nickel-plated electrolytic copper contact ensuring optimal conductivity and corrosion resistance.

The ring terminal measures 14.58mm in overall length and has a thickness of 0.79mm. Its uninsulated construction makes it suitable for applications where insulation is not required or feasible due to temperature constraints. The internal barrel contains serrations to enhance crimping reliability and maximize electrical contact, suitable for both solid and stranded conductors.

Commonly used in electrical, industrial, and laboratory settings, this TE Connectivity terminal facilitates secure and stable connections for wires subjected to high temperature and mechanical stress. The outer ring diameter is 7.14mm, and the inner ring diameter is 4.34mm, designed for M4 studs.

Constructed from nickel-plated electrolytic copper for superior durability and conductivity. Ensures maximum electrical contact with barrel serrations for secure crimping. Supports wire sizes 22 AWG to 16 AWG, compatible with solid and stranded wires.

Maximum operating temperature of 343°C suits high-temperature industrial applications. Uninsulated design for heat resistant terminal connections. Dimensions optimized for M4 stud size with precise ring diameters. Designed for use in electrical components, power connectors, and wire terminals.

This Ring Terminal is manufactured in the United States, assuring quality and compliance with TE Connectivity standards. It is suitable for industrial, electrical, construction, manufacturing, and laboratory applications where reliable wire termination is essential.
