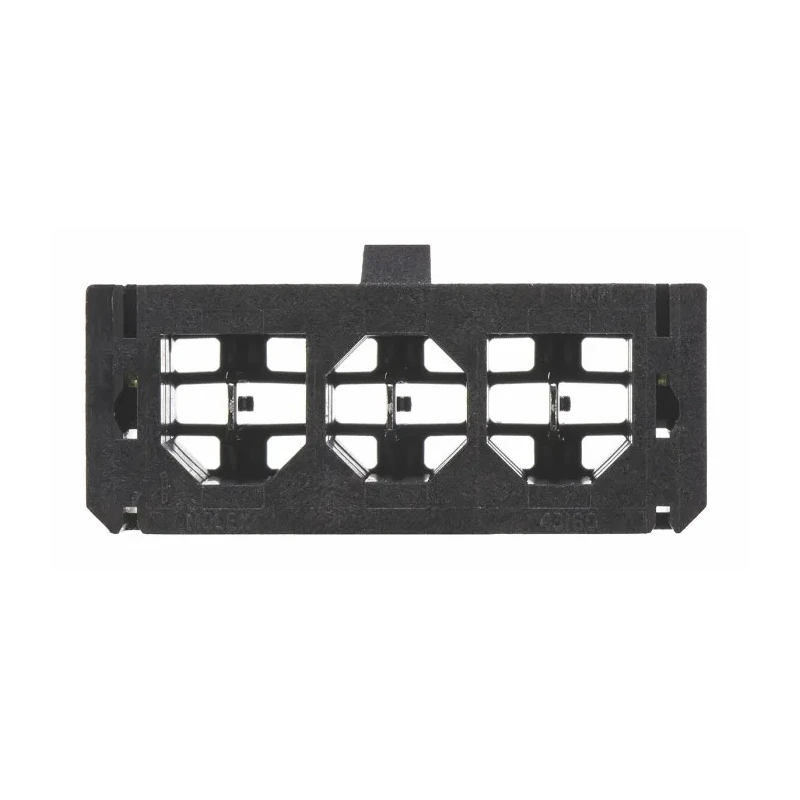

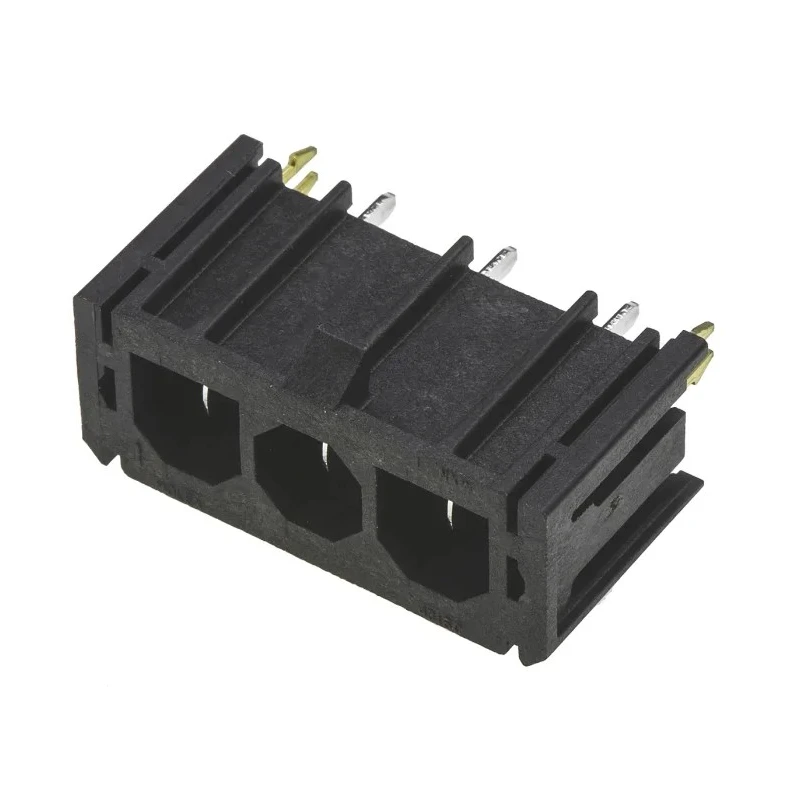

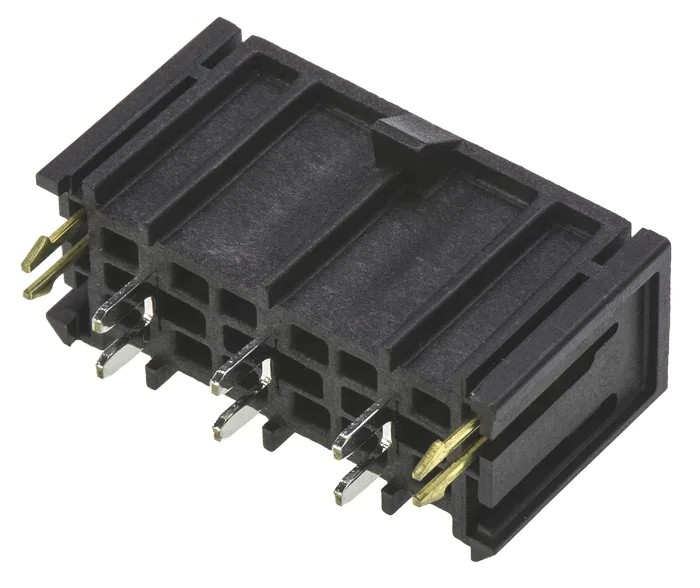

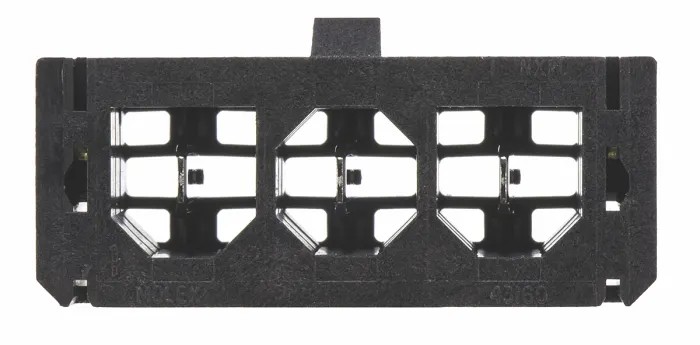

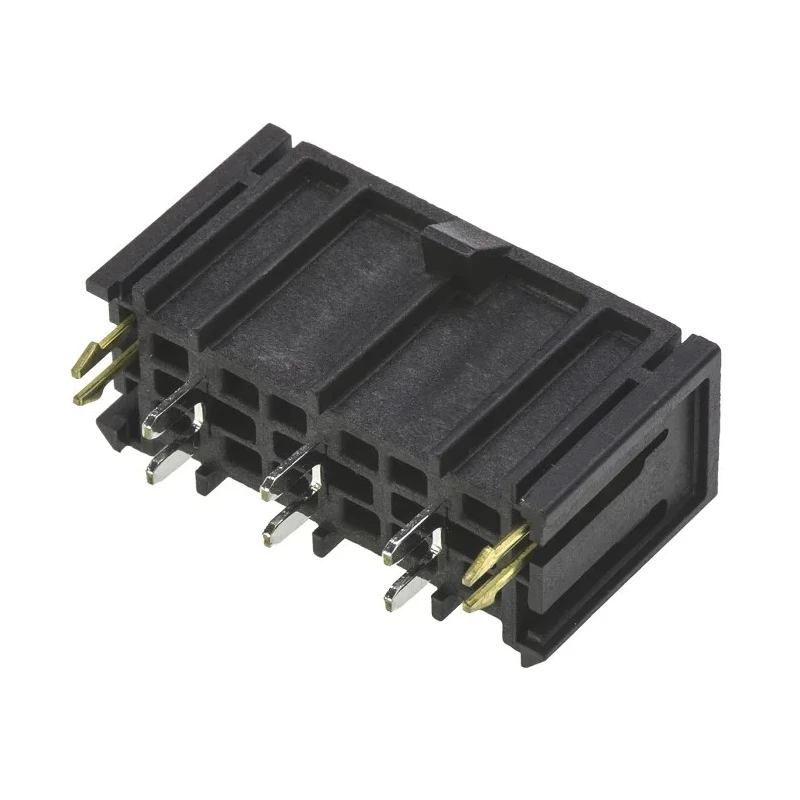

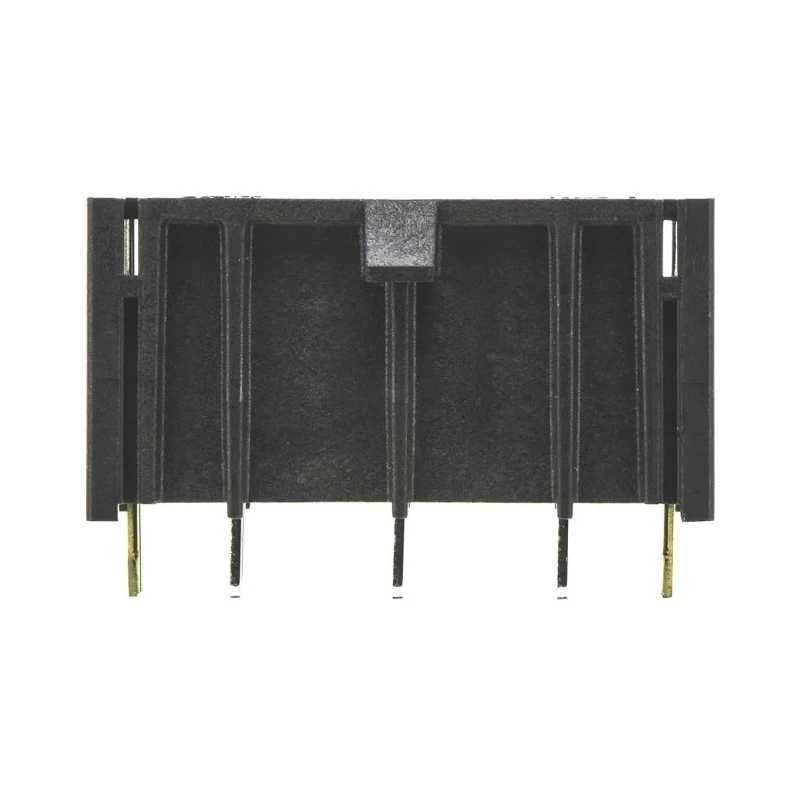

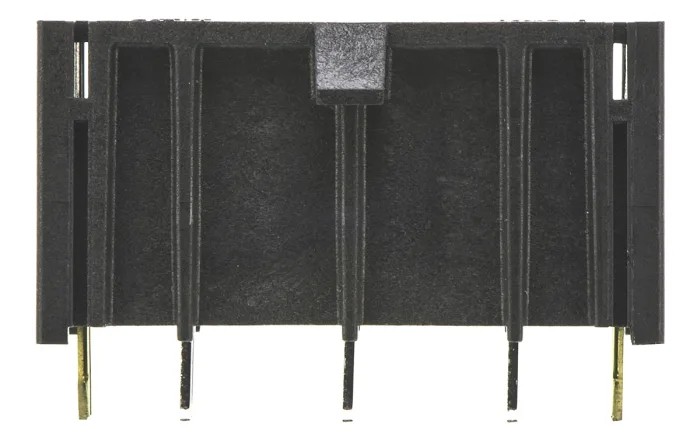

Molex Sabre Series Straight Through Hole PCB Header, 3 Contacts, 7.49 mm Pitch, 1 Row, Shrouded, 18A, 600V 43160-2103
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 18A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Sabre |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 7.49mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.81mm |
| Row Pitch | 7.5mm |
Key Features
- Supports up to 18 amperes current capacity.
- Features high temperature thermoplastic housing for durability.
- Includes brass contacts plated with tin for corrosion resistance.
- Designed with a straight orientation and shrouded casing for secure mating.
- Compatible with 14 to 18 AWG wire sizes in wire-to-board connector system.
- Mounts through-hole on PCB with solder termination type.
- Operates over a temperature range from -40°C to 75°C.
- Rated for 600 volts operating voltage.
Product Description
Molex 43160-2103 Sabre Series Straight Through Hole PCB Header is designed for reliable, high-current wire-to-board connection applications in industrial and electronic systems. With 3 male contacts and a 7.49 mm pitch in a single row, this shrouded connector offers secure mechanical and electrical performance suitable for applications requiring rated currents up to 18 amperes and operating voltages of 600 volts.
The housing is made from high temperature thermoplastic material, providing durability and stability under thermal stress between -40°C and 75°C. The brass contacts are tin plated, enhancing corrosion resistance and solderability. Terminated by solder through-hole mounting technique, these connectors ensure robust PCB attachment and electrical continuity.
The straight orientation and shrouded design include polarised casings that produce an audible click locking mechanism, preventing accidental disconnections. These connectors are suitable for wire sizes ranging from 14 to 18 AWG, supporting a versatile range of applications from industrial machinery to power electronics.
The Sabre Series connectors comply with UL E29179 and UL1950, and CSA LR19980 standards, guaranteeing quality and safety compliance. Ideal for use in manufacturing, industrial control systems, and electrical assemblies, this connector enhances production efficiency through ready-for-insertion packaging.
Supports up to 18 amperes current capacity. Features high temperature thermoplastic housing for durability. Includes brass contacts plated with tin for corrosion resistance. Designed with a straight orientation and shrouded casing for secure mating.
Compatible with 14 to 18 AWG wire sizes in wire-to-board connector system. Mounts through-hole on PCB with solder termination type. Operates over a temperature range from -40°C to 75°C. Rated for 600 volts operating voltage.
Tail pin length measures 3.81 mm for secure PCB insertion. Ensures positive locking with audible click to prevent accidental disconnection. Discover more electronic components and connectors from Molex in the EnvMart Electronics & Electricals category.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current capacity of up to 18 amperes.
It is rated for an operating voltage of 600 volts.
This model is compatible with wire sizes ranging from 14 to 18 AWG.
The pitch of the contacts is 7.49 mm.
It uses a through-hole mounting technique with solder termination.
The housing is made from high temperature thermoplastic, and the contacts are brass plated with tin for corrosion resistance.
It operates over a temperature range from -40°C to 75°C.
This unit has 3 male contacts.
Yes, it features a shrouded design for secure mating.
The tail pin length measures 3.81 mm for secure PCB insertion.
It complies with UL E29179, UL1950, and CSA LR19980 standards.
The orientation of this model is straight.
