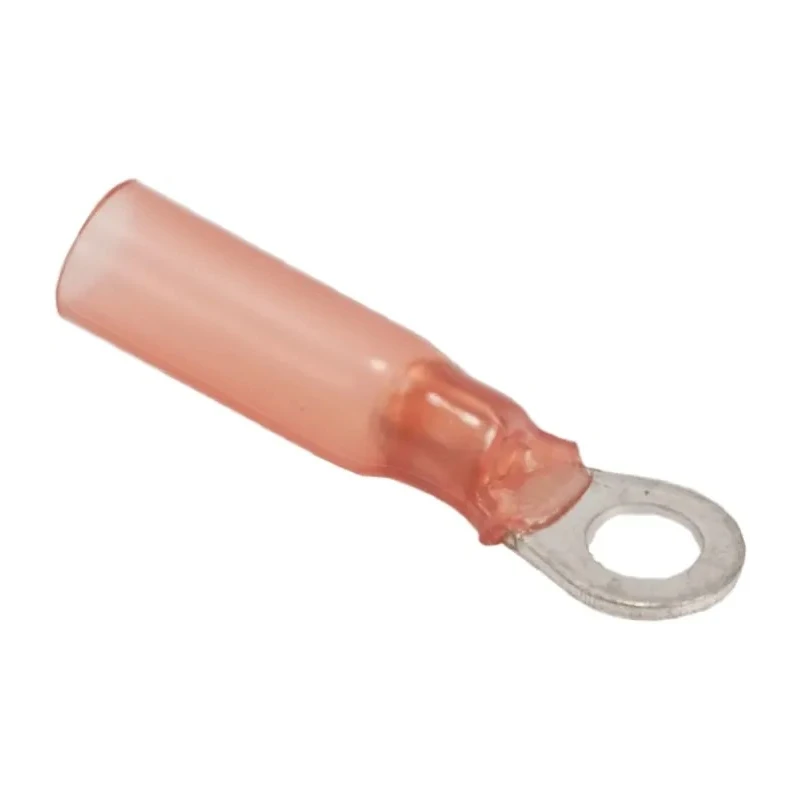

TE Connectivity DuraSeal Insulated Ring Terminal M5 Stud Size 22 AWG to 18 AWG Wire Red B-106-1501

TE Connectivity B-106-1501 DuraSeal insulated ring terminal is engineered for professional electrical and electronic wiring applications requiring secure and waterproof connections. Featuring a molded nylon insulation sleeve pre-installed with a heat shrinkable coating and hot melt adhesive, this terminal provides excellent sealing after crimping and heat shrinking.

The terminal fits M5 stud sizes with wire gauges compatible from 22 AWG to 18 AWG (0.5 mm² to 1 mm²). Its precise dimensions include a 10 mm outer ring diameter, 5.3 mm inner ring diameter, and an overall length of 34.04 mm, allowing flexible integration in various assemblies.

Manufactured with copper contacts plated in tin, it ensures robust electrical conductivity and corrosion resistance. The terminal's red nylon insulation provides mechanical protection against abrasion and environmental factors.

Operating temperature ranges from -55°C to 125°C, supporting demanding conditions found in industrial, automotive, and marine sectors. The waterproof DuraSeal technology offers reliable performance in environments prone to moisture and condensation.

The crimp terminal design enables quick and secure installation, sealing connections effectively by shrinking and adhesive flow, preventing ingress of water or contaminants, thus extending service life.

This ring terminal is widely applied in automotive wiring harnesses, marine electrical systems, HVAC control panels, and other industrial electrical installations where durability and waterproofing are mandatory.

The Ring Terminal features a durable nylon insulation for environmental protection. It has an outer ring diameter of 10 mm and inner ring diameter of 5.3 mm. Constructed with copper contact material plated in tin for reliable conductivity.

Suitable for operating temperatures from -55°C to 125°C. The overall length measures 34.04 mm ensuring compatibility with various installation needs. Red color coding helps quick identification in wiring systems. Pre-installed crimp terminals with heat shrinkable sleeves provide waterproof connections.

Ideal for automotive and marine applications where sealing is critical. Meets quality standards although no specific certifications are listed. Made in Mexico, ensuring consistent manufacturing quality. Explore more from the comprehensive range of TE Connectivity wire terminals and splices for dependable industrial and electronic solutions at EnvMart.
