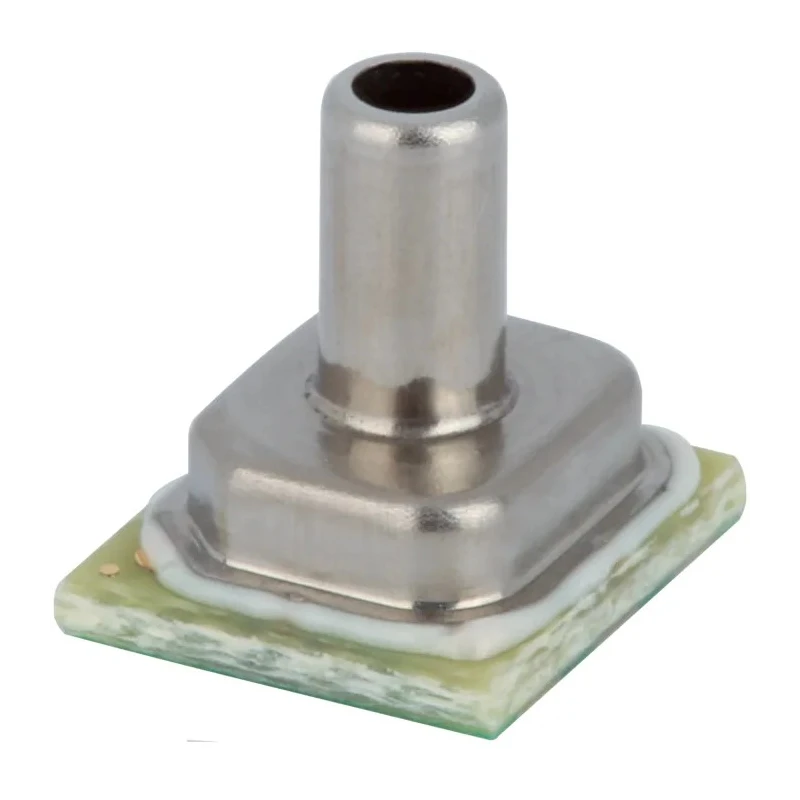

Honeywell Technologies Piezoresistive Differential Pressure Sensor 1.8-3.6V Leadless SMT 6 Pin ABP2LSNT030PASA3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 100 kPa |
| Height | 10.59mm |
| Length | 8.2mm |
| Model | ABP2LSNT030PASA3XX |
| Sensor Type | Differential Pressure Sensor |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Single Axial Barbless |
| Package Type | Leadless SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 240psi |
Key Features
- Operates within a supply voltage range of 1.8V to 3.6V.
- Features a compact leadless SMT 6-pin surface mount package.
- Provides high accuracy of ±0.25% with a maximum operating pressure of 100 kPa.
- Supports differential pressure sensing with single axial barbless port design.
- Wide operating temperature range from -40°C to 110°C suitable for demanding conditions.
- Complies with RoHS environmental standards for safety and sustainability.
- Robust maximum overload pressure rating at 240 psi ensuring resilience.
- Designed for applications in HVAC systems, medical devices, industrial process control, and life sciences.
Product Description
Honeywell Technologies ABP2LSNT030PASA3XX is a high-accuracy piezoresistive differential pressure sensor in a compact leadless SMT package with 6 pins. It functions reliably over a voltage supply range from 1.8V to 3.6V and supports pressures up to 100 kPa, withstanding overload pressures up to 240 psi. Its precision accuracy of ±0.25% makes it ideal for sensitive applications.
This sensor features a single axial barbless port and supports a wide operating temperature range spanning from -40°C to 110°C, accommodating harsh environments in HVAC transmitters, medical ventilators, blood pressure monitoring, process gas monitoring, pneumatic control and positioners, and material handling.
The device meets RoHS compliance, ensuring environmentally safe use. Its dimensions of 8.2 mm length, 7.2 mm width, and 10.59 mm height support easy surface mounting on PCBs. The pin count of 6 and leadless SMT package provide compatibility with modern automated assembly lines.
Applications for the ABP2LSNT030PASA3XX include medical ventilators and portable ventilators, continuous positive airway pressure (CPAP) devices, blood analysis instruments, HVAC transmitters, life sciences equipment, process monitoring, and pneumatic valve controls among others.
Choosing Honeywell Technologies ensures precision, reliability, and compliance for industrial, laboratory, HVAC, and medical use cases. Operates within a supply voltage range of 1.8V to 3.6V. Compact leadless SMT package with 6 pins for efficient mounting.
High accuracy differential pressure sensing, ±0.25% accuracy. Wide temperature range from -40°C to 110°C. Maximum operating pressure of 100 kPa with 240 psi overload protection. Single axial barbless port suitable for various fluid media.
RoHS compliant for environmentally friendly use. Compact dimensions of 8.2 x 7.2 x 10.59 mm. Applications include medical devices, HVAC, life sciences, and industrial process control. Explore Honeywell Technologies products and pressure sensor solutions on EnvMart for advanced sensing and control needs.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 1.8V to 3.6V.
The maximum operating pressure is 100 kPa, with a maximum overload pressure rating of 240 psi.
It provides high accuracy of ±0.25%.
The dimensions are 8.2 mm in length, 7.2 mm in width, and 10.59 mm in height.
It features a leadless SMT package designed for surface mounting.
It has a wide operating temperature range from -40°C to 110°C.
It features a single axial barbless port design.
Yes, it complies with RoHS environmental standards for safety and sustainability.
It is suitable for applications in HVAC systems, medical devices, industrial process control, and life sciences.
This model has a pin count of 6.
The minimum operating pressure is 600 Pa.
It belongs to the ABP2 series.
