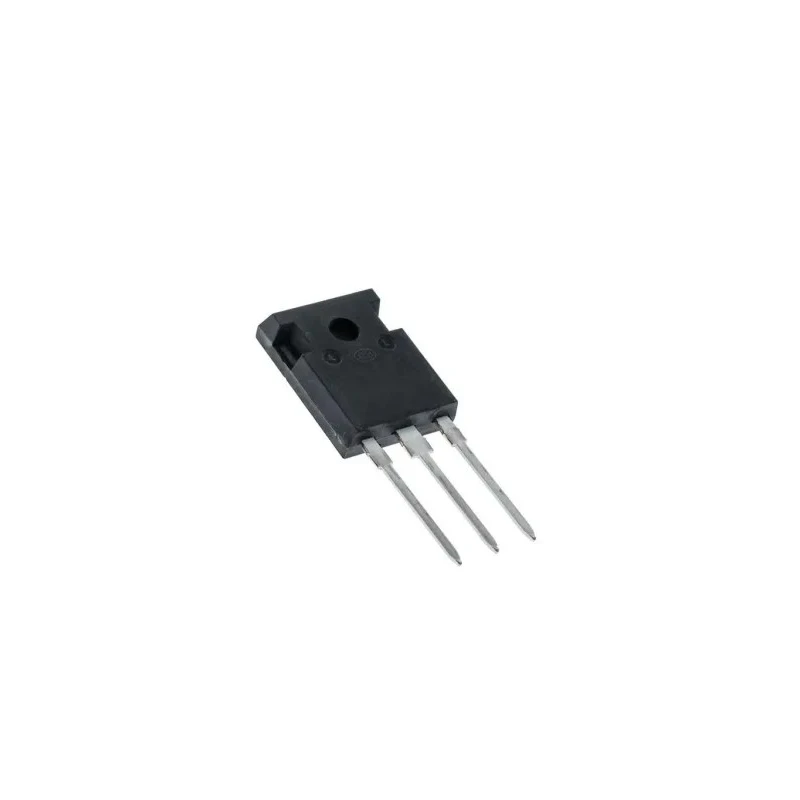

Infineon Silicon Junction Single 30A 3-Pin 600V TO-247 Diode IDW30E60FKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 41.42mm |
| Length | 16.13mm |
| Model | IDW30E60FKSA1 |
| Width | 5.21mm |
| Mount Type | Through Hole |
| Series | IDW30E60 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Sub Type | Emitter Controlled Diode |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC |
| Pin Count | 3 |
| Maximum Power Dissipation Pd | 143W |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1.65V |
| Peak Reverse Recovery Time trr | 143ns |
| Maximum Forward Current If | 30A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 600V |
Key Features
- Designed primarily for motor drive applications up to 30 kHz frequency.
- Supports maximum forward current of 30 amperes with peak surge current of 150 amperes.
- Maximum operating temperature up to 175°C ensures reliable performance in demanding environments.
- Features low forward voltage of 1.65 V for efficient conduction and reduced power loss.
- Complies with JEDEC standards for quality and reliability.
- Emitter controlled silicon junction diode in a robust through-hole TO-247 package.
- Peak reverse repetitive voltage rating of 600 V and maximum power dissipation of 143 W.
- Suitable for industrial, power electronics, motor control, and general switching applications.
Product Description
The Infineon IDW30E60FKSA1 is a high-performance silicon junction switching diode designed for power electronics applications requiring fast switching and high surge current tolerance. Packaged in the sturdy TO-247 through-hole format with 3 pins, this diode supports continuous forward currents up to 30 A and peak non-repetitive surge current of 150 A, making it ideal for motor drives, inverters, and other industrial switching circuits operating up to 30 kHz frequency range.
With a maximum forward voltage of just 1.65 V and maximum power dissipation of 143 W, it offers a low conduction loss and enhanced efficiency. The device operates reliably across a wide temperature range from -40°C minimum to 175°C maximum, suitable for harsh operating environments. It meets JEDEC quality standards ensuring durability and consistent performance.
The diode’s maximum peak reverse repetitive voltage of 600 V protects systems against voltage spikes common in industrial power electronics. Its emitter controlled design further optimizes switching behavior and reduces EMI, supporting cleaner signal operation and reduced noise.
Physical dimensions include 16.13 mm length, 5.21 mm width, and 41.42 mm height, facilitating easy mounting on PCBs or heat sinks in power modules. The TO-247 package offers robust mechanical strength and thermal conductivity supporting enhanced heat dissipation.
Designed for motor drive and industrial power electronics applications up to 30 kHz. Capable of 30 A forward current with 150 A surge current rating. Wide operating temperature range from -40°C to 175°C. Low forward voltage of 1.65 V for superior efficiency.
Compliant with JEDEC standards for quality assurance. TO-247 through-hole package with 3 pins for easy mounting and cooling. Maximum power dissipation of 143 W ensuring reliable thermal management. 600 V peak reverse voltage protects against voltage spikes.
This diode is well-suited for industrial, laboratory, HVAC, manufacturing, and automotive electronics requiring robust, reliable switching components. It is an excellent choice for replacing or upgrading power semiconductor designs focused on performance and durability.
Explore the comprehensive range of semiconductor and Switching Diodes available at EnvMart for all your high-quality electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode supports a maximum forward current of 30 amperes.
It has a peak reverse repetitive voltage rating of 600 V, providing protection against voltage spikes.
The maximum operating temperature for this diode is 175°C, allowing it to perform reliably in demanding environments.
This diode is packaged in a TO-247 through-hole format, which facilitates easy mounting and cooling.
The maximum power dissipation for this diode is 143 W, ensuring effective thermal management during operation.
The minimum operating temperature is -40°C, making it suitable for a wide range of applications.
The diode has a low forward voltage drop of 1.65 V, which contributes to efficient conduction and reduced power loss.
The diode can handle a peak non-repetitive forward surge current of 150 A, making it suitable for high-demand applications.
The dimensions of the diode are 16.13 mm in length, 5.21 mm in width, and 41.42 mm in height.
It is suitable for industrial, power electronics, motor control, and general switching applications, particularly in motor drives.
Yes, it complies with JEDEC standards for quality and reliability, ensuring consistent performance.
The diode features a pin count of 3, which is standard for the TO-247 package type.
