Jumo PID Temperature Controller Panel Mount 4 Output Logic Relay 240V AC On-Off 703042/181-000-23/000

Jumo 703042/181-000-23/000 PID Temperature Controller is a high-performance panel mount device designed for use in industrial process control applications requiring precise temperature management. It operates with a supply voltage range of 110 to 240 VAC, delivering reliable and efficient on-off control output through 4 independently programmable outputs combining logic and relay types.

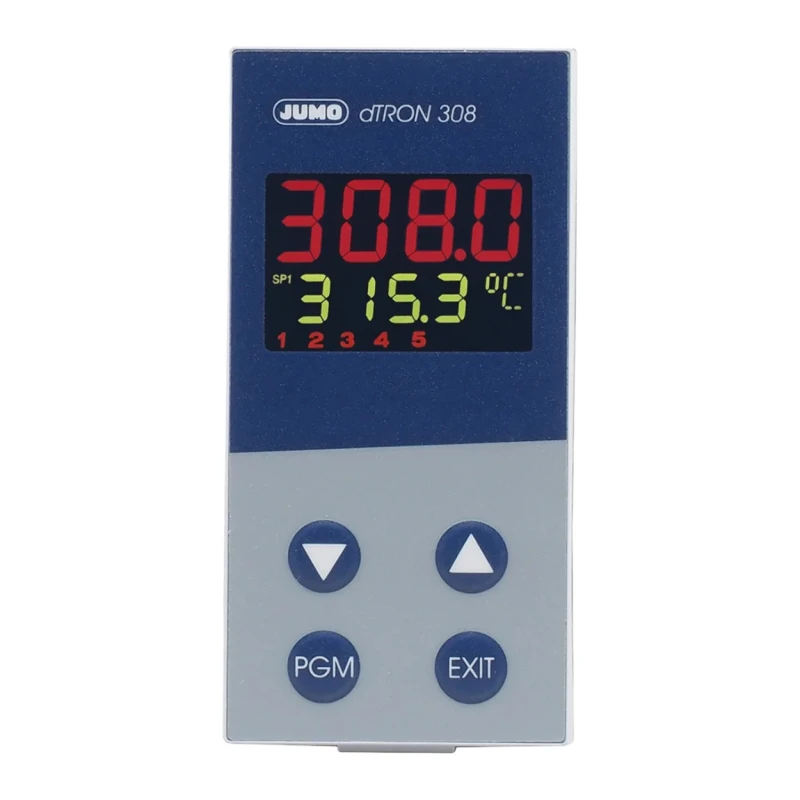

The controller is engineered for robust operation within environmental temperature limits of 0°C to 55°C. The device features a bright, multi-line LCD that allows clear display of process parameters, enhancing ease of operation and monitoring. Advanced digital communication interfaces, including PROFIBUS-DP and RS422/485, facilitate integration into automated systems for sophisticated control and data exchange.

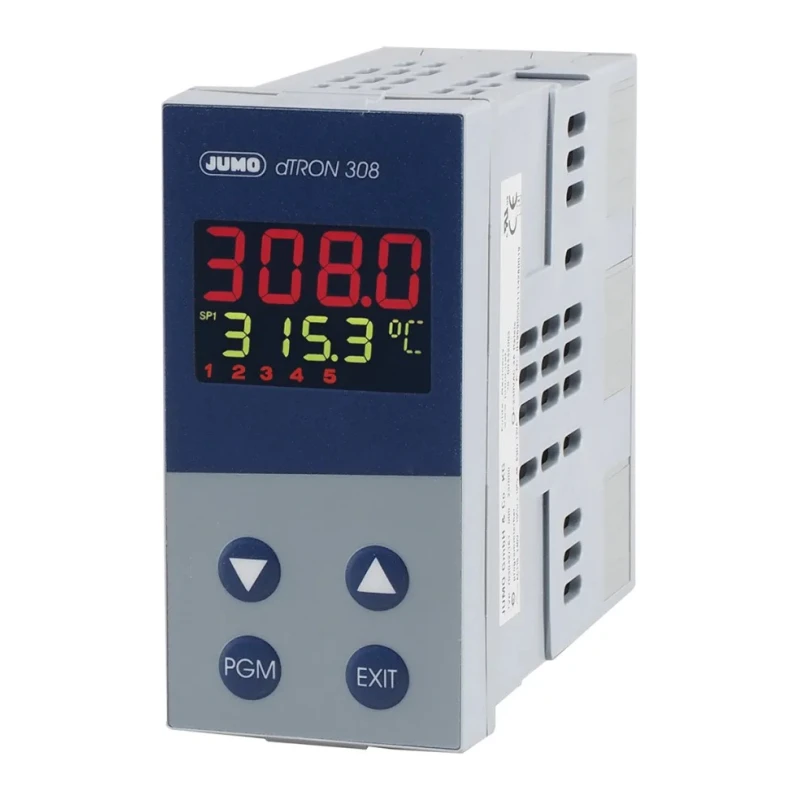

Its construction supports panel mounting with a slim form factor of 96 mm length, 48 mm width, and 90 mm panel depth. The controller's front face provides IP65 protection against dust and water ingress, while the rear side provides IP20 protection, ensuring durability under industrial conditions.

The Jumo dTRON 300 series controller includes user-friendly configuration via dedicated setup software and allows programmable controller structures such as 2-point and 3-point step controllers as well as continuous controllers. Innovative features include 2 self-optimization processes, multiple timer functions, 4 limit comparators, and up to 8 binary outputs, enabling comprehensive control flexibility for temperature, pressure, and other process variables.

It also provides built-in diagnostic systems including recognized probe/lead break and short-circuit detection to improve operational reliability and safety. The device complies with numerous industry standards including DIN EN 14597, EN 60751, UL 61010-1, EN 60529, EN 60730, and EN 61326-1, underscoring its quality and suitability for rigorous industrial use.

Applications span industrial automation, laboratory instrumentation, HVAC systems, manufacturing process control, water treatment plants, and agricultural process monitoring. The package includes the controller unit, sealing components, fastening elements, and comprehensive operating instructions to facilitate installation and use.

Manufactured in Germany, this Jumo controller is a durable and precise solution for demanding temperature control applications across multiple industrial sectors. Equipped with 4 outputs including logic and relay types for versatile control.

Operates within temperature range 0°C to 55°C suitable for industrial environments. Incorporates PROFIBUS-DP and RS422/485 digital communication interfaces. Robust panel mounting with IP65 front and IP20 rear protection ratings.

Bright multi-line LCD display for clear process parameter visualization. User-configurable with freely programmable controller structures for different control modes. Includes diagnostics for probe/lead break and short-circuit detection.

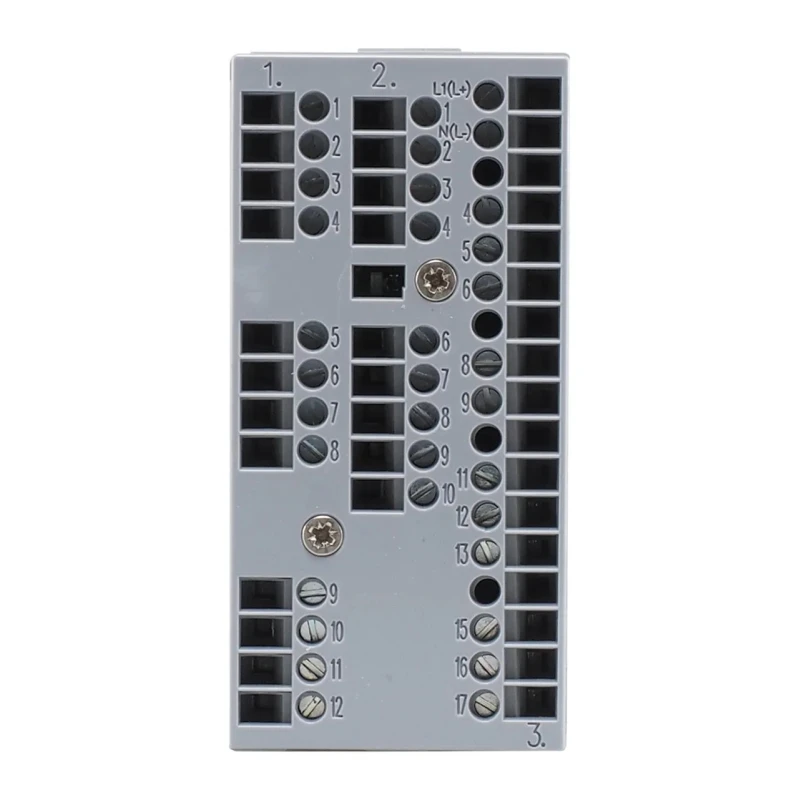

Mount type is panel with screw terminal connections and panel depth of 90mm. Conforms to standards including DIN EN 14597, UL 61010-1, EN 60751, and others. Designed and manufactured in Germany ensuring high quality and reliability.
