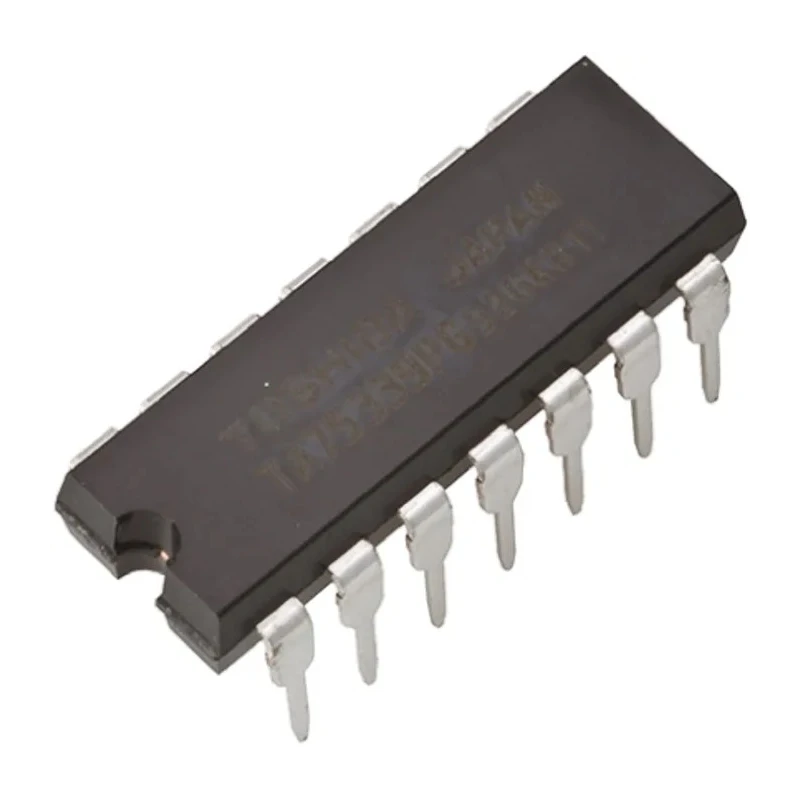

Toshiba CMOS Analogue Multiplexer 2 Elements Quad SPST Logic IC, 14-Pin PDIP TC4066BP(N,F)

Free Delivery in India | Lowest Global Shipping Charges

Toshiba CMOS Analogue Multiplexer 2 Elements Quad SPST Logic IC, 14-Pin PDIP TC4066BP(N,F)

Name: Toshiba CMOS Analogue Multiplexer 2 Elements Quad SPST Logic IC, 14-Pin PDIP TC4066BP(N,F)
Brand: Toshiba
SKU: 170406
Price: 0.38 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Toshiba Condition New

Specifications

Country of Origin	Japan
Brand	Toshiba
Height	3.5mm
Length	19.25mm
Model	TC4066BP(N,F)
Width	6.4mm
Mount Type	Through Hole
Series	TC4066X
Configuration	Quad SPST
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	14
Number of Elements per Chip	2
Maximum Supply Voltage	18V
Logic Family	CMOS
Minimum Supply Voltage	3V
Multiplexer/Demultiplexer	Multiplexer
Maximum On State Resistance	1.2kΩ

Key Features

Type CMOS logic family ensuring low power consumption.
Contains 2 elements per chip configured as quad SPST switches.
Operates over a wide supply voltage range of 3V to 18V.
Maximum on state resistance of 1.2kΩ enabling efficient switching.
Designed for through hole mounting in a 14-Pin PDIP package.
Wide operating temperature range from -40°C to 85°C for robust industrial usage.
RoHS compliant, ensuring adherence to environmental standards.
Manufactured in Japan, ensuring high quality and reliability.

Product Description

Toshiba TC4066BP(N,F) is a CMOS analogue multiplexer that features 2 elements per chip with a quad SPST (Single Pole Single Throw) configuration. Packaged in a 14-Pin PDIP, this multiplexer IC is designed for efficient signal switching with a maximum on state resistance of 1.2kΩ.

The device supports a wide supply voltage range from 3V minimum to 18V maximum, suitable for various electronic circuit requirements. Its low power CMOS logic family ensures energy-efficient operation. With a broad operating temperature range of -40°C to 85°C, this multiplexer is suitable for industrial, laboratory, and commercial electronics applications.

The multiplexer is designed for through hole mounting, making it compatible with traditional PCB layouts. Its compact form factor with dimensions 19.25mm length, 6.4mm width, and 3.5mm height allows for space-efficient circuit design. Compliant with RoHS standards, it meets environmental and safety regulations.

Manufactured in Japan, the TC4066BP(N,F) assures high manufacturing standards and reliability in performance. Typical use cases include signal routing, electronic switching systems, and multiplexing in analogue and digital circuits within industrial and electronic component manufacturing environments.

Type CMOS logic family ensuring low power consumption. Contains 2 elements per chip configured as quad SPST switches. Operates over a wide supply voltage range of 3V to 18V. Maximum on state resistance of 1.2kΩ enabling efficient switching.

Designed for through hole mounting in a 14-Pin PDIP package. Wide operating temperature range from -40°C to 85°C for robust industrial usage. Compact dimensions: Length 19.25mm, Width 6.4mm, Height 3.5mm. RoHS compliant, ensuring adherence to environmental standards.

Manufactured in Japan, ensuring high quality and reliability. Browse the extensive collection of semiconductor multiplexers and demultiplexers on EnvMart for industrial and electronic applications.

Explore more products in our Multiplexer & Demultiplexer ICs category.
