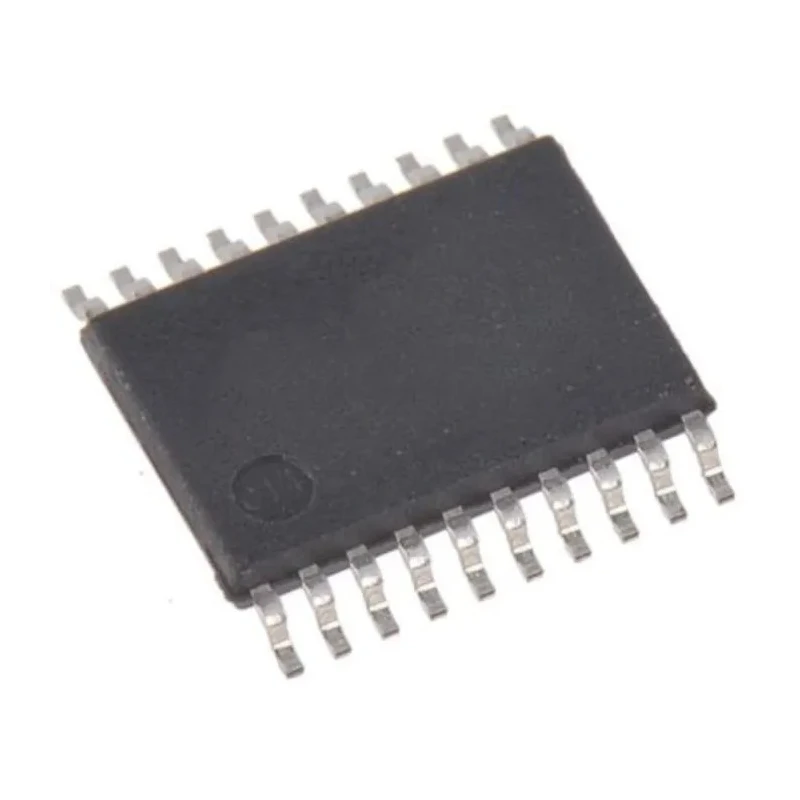

Renesas Electronics Bus Switch, CMOS Logic Family, 1 x 1:1 Configuration, 20-Pin TSSOP QS3VH245PAG

Renesas Electronics QS3VH245PAG is a high-performance bus switch designed for electronic and semiconductor applications requiring reliable signal switching. This 20-pin TSSOP device belongs to the CMOS logic family and offers a 1 x 1:1 configuration with 9 elements per chip, enabling multiple switching channels within a compact footprint.

The switch features a very low maximum on state resistance of 9 ohms and an exceptionally fast maximum propagation delay time of 0.2 nanoseconds at CL, facilitating rapid and low-loss signal transmission essential in high bandwidth communications and data processing environments.

Designed for surface mounting, the QS3VH245PAG operates over a wide supply voltage range of 2.3V to 3.6V and is capable of rail-to-rail switching from 0V to 5V, with 5V tolerant inputs enhancing compatibility with various logic levels. It maintains low quiescent current (4mA), contributing to energy efficiency in circuit designs.

Engineered for robustness, this device is rated for operation in extreme temperatures from -40°C to +85°C, making it suitable for automotive and industrial electronics applications. The package dimensions are compact at 8.7mm in length and 1.47mm in height, facilitating space-conscious designs.

Additional features include the absence of parasitic diodes to VCC, isolation under power-off conditions, and bidirectional data flow capability with no added ground bounce. These qualities make the QS3VH245PAG an optimal choice for designing efficient bus switching and multiplexing solutions in semiconductor and electronic systems.

Equipped with CMOS logic family for efficient switching performance. Maximum propagation delay time is 0.2ns ensuring rapid signal transmission. Maximum on state resistance is 9 ohms offering low resistance path. Supports supply voltages from 2.3V to 3.6V, designed for surface mount applications.

Operates reliably within temperature range from -40°C to 85°C. 20-pin TSSOP package provides compact size with dimensions 8.7mm length and 1.47mm height. Features 9 elements per chip suitable for multiple switching functions.

5V tolerant inputs and rail-to-rail switching capability improves versatility. Low quiescent current of 4mA helps reduce power consumption. Ideal for high performance communication systems requiring near-zero propagation delay.

This bus switch is widely used in industrial controls, communication systems, data acquisition, and semiconductor logic applications where fast switching, minimal delay, and high reliability are critical. Explore EnvMart's Electronic Components category for compatible devices and advanced semiconductor solutions.
