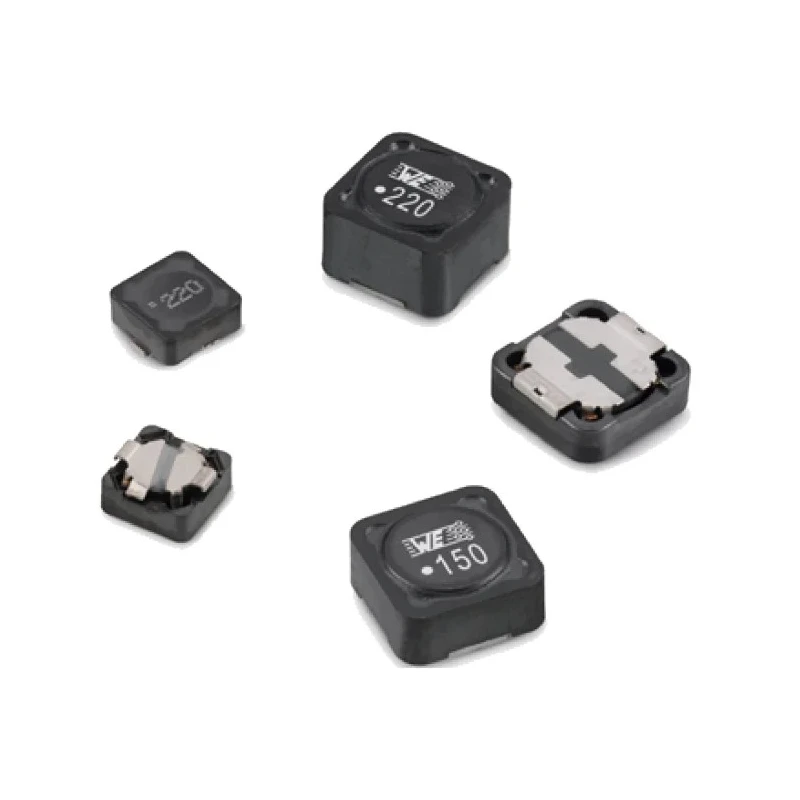

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 15 μH 20% Tolerance 4.7 A IDC 7447706150
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 8mm |
| Brand | Wurth Elektronik |
| Height | 6mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD SMT |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc |
| Inductance | 15μH |
| Standards/Approvals | REACH, RoHS, JEDEC JS709B |
| Maximum DC Current | 4.7A |
| Maximum DC Resistance | 28mΩ |
| Inductance Tolerance | 20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 13.9MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a manganese zinc core for high performance.
- Shielded wirewound construction ensures low electromagnetic interference.
- Rated for operating temperatures from -40°C to 150°C.
- Complies with automotive standard AEC-Q200 and industry standards REACH, RoHS, JEDEC JS709B.
- Designed for switching frequencies up to 10 MHz with a maximum self-resonant frequency of 13.9 MHz.
- Packaged in tape and reel format suitable for surface mount assembly.
- Low DC resistance of 28 mΩ supports efficient power management.
- Suitable for power inductors in switch mode power supplies and integrated DC/DC converters.
Product Description
Wurth Elektronik model 7447706150 is a WE-PD SMT shielded wirewound surface mount inductor with a manganese zinc core, delivering an inductance of 15 μH and inductance tolerance of 20%. It supports a maximum DC current of 4.7 A and operates within a temperature range of -40 °C to 150 °C. This component is ideal for use in switch mode power supplies ranging from 0.1 W up to 300 W, as well as integrated DC/DC converters.
The inductor is constructed with wirewound technology to provide ultra-low DC resistance (28 mΩ) and RAC. Its shielded design minimizes electromagnetic interference, enhancing the reliability of power management circuits. The product complies with the automotive qualification standard AEC-Q200 and meets REACH, RoHS, and JEDEC JS709B standards, making it suitable for demanding automotive and industrial applications.
Dimensions of the inductor are 12 mm length, 6 mm height, 8 mm diameter, and 12 mm depth, packaged in tape and reel format for efficient surface mount assembly. It is designed for switching frequencies up to 10 MHz, with a maximum self-resonant frequency of 13.9 MHz ensuring stable performance in high-frequency environments.
Applications include industrial electronics, automotive electronics, power supply circuitry, and other commercial electronic systems requiring high saturation current and temperature dependability. This robust inductor supports precision power delivery and energy efficiency across multiple sectors.
Features a manganese zinc core for enhanced magnetic performance. Shielded wirewound construction reduces electromagnetic interference. Wide operating temperature range from -40°C to 150°C. Compliant with automotive standard AEC-Q200 and industry certifications.
Ultra-low DC resistance of 28 mΩ for energy efficient operation. Suitable for switch mode power supplies and integrated DC/DC converters. Supports switching frequencies up to 10 MHz with a 13.9 MHz self-resonant frequency.
Available in tape & reel packaging for automated SMT assembly. Explore more inductors and electronic components from Wurth Elektronik in the Surface Mount Inductor category on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15 μH with a tolerance of 20%.
It supports a maximum DC current of 4.7 A.
The inductor measures 12 mm in length, 6 mm in height, and has a diameter of 8 mm.
It operates within a temperature range of -40 °C to 150 °C.
It features a wirewound construction designed to minimize electromagnetic interference.
The maximum self-resonant frequency is 13.9 MHz.
It complies with automotive standard AEC-Q200 and industry standards REACH, RoHS, and JEDEC JS709B.
This model is packaged in tape and reel format suitable for surface mount assembly.
It utilizes a manganese zinc core for enhanced magnetic performance.
It is suitable for use in switch mode power supplies and integrated DC/DC converters.
The inductor has a low DC resistance of 28 mΩ, supporting efficient power management.
It is designed for switching frequencies up to 10 MHz.
