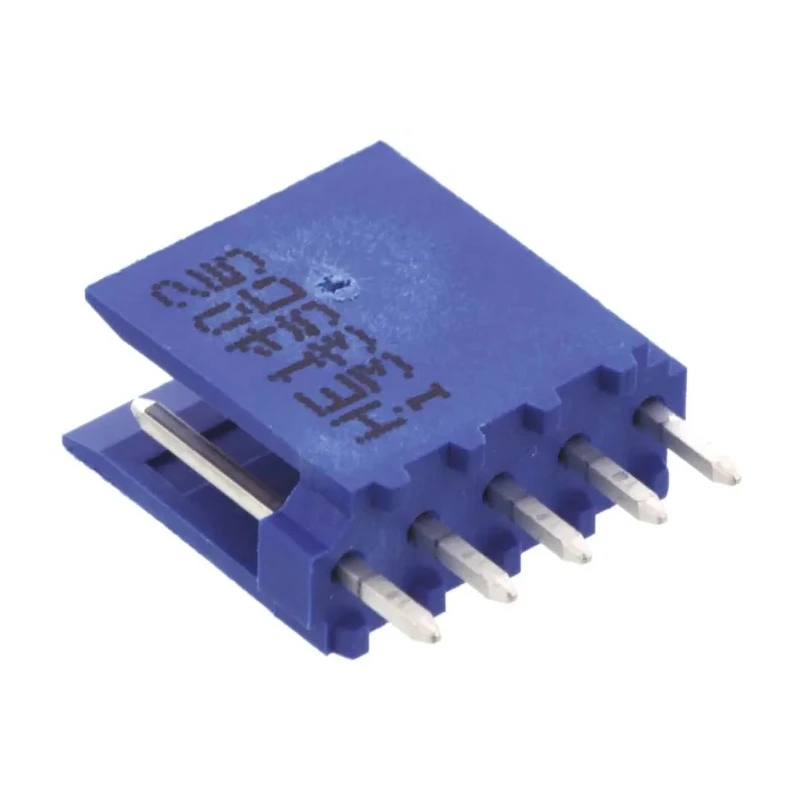

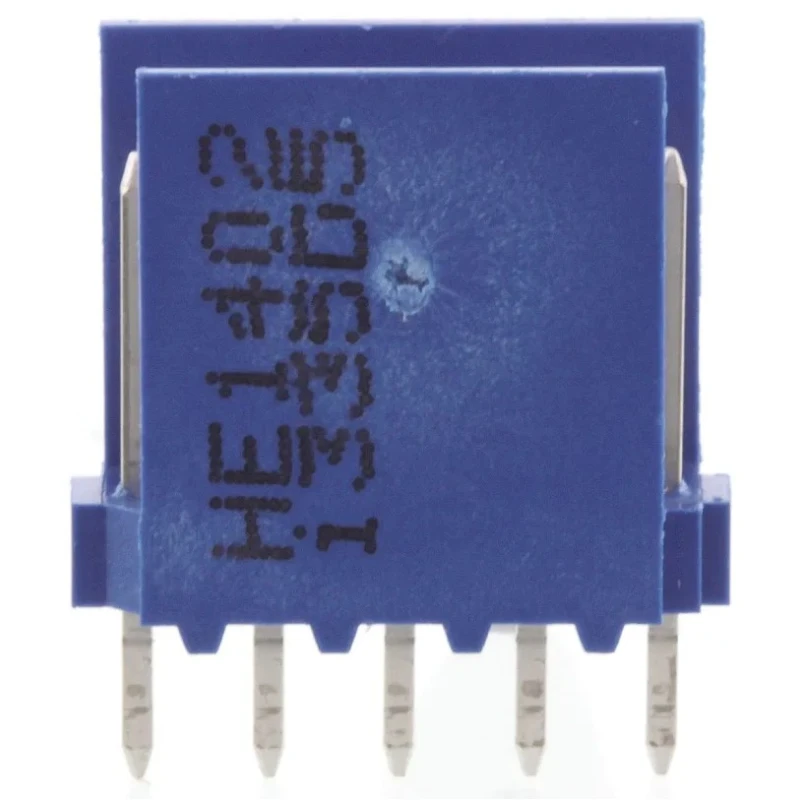

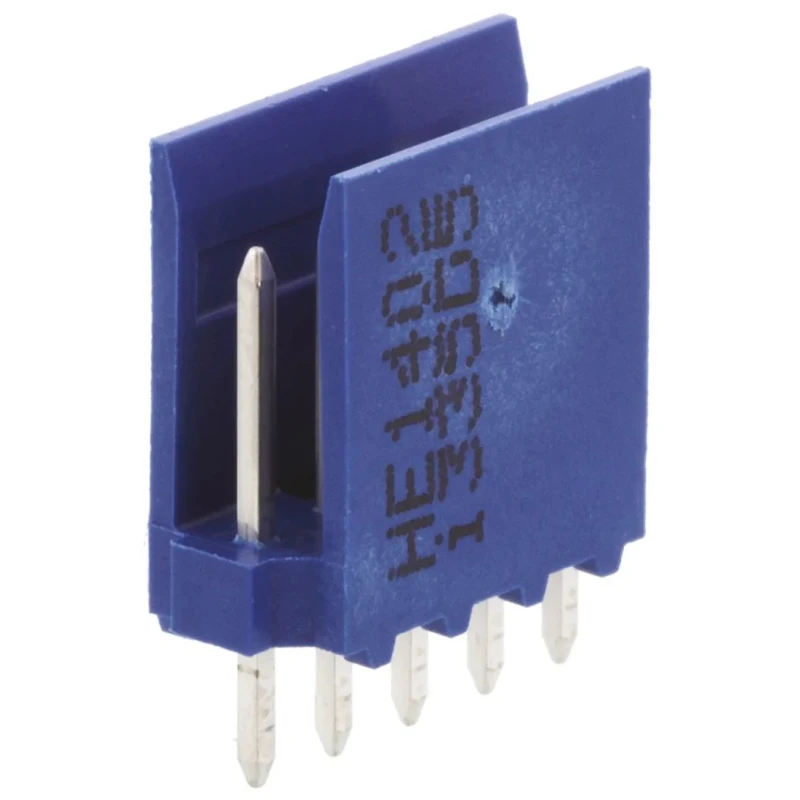

TE Connectivity AMPMODU Series Straight Through Hole Shrouded PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, 3A, 500V HE14

TE Connectivity HE14 Series Straight Through Hole Shrouded PCB Header features 5 male contacts arranged in a single row with a 2.54 mm pitch spacing. The high-temperature thermoplastic housing is rated UL 94V-0, providing robust mechanical and thermal durability.

The shrouded connectors include built-in polarization to prevent mismating and an integrated friction lock to secure connections in demanding applications. Contacts are made with phosphor bronze and plated with tin for excellent conductivity and solderability using through hole mounting.

This PCB header is rated for 3 amperes of current and can withstand voltages up to 500 volts, making it suitable for a wide range of industrial and electronic control systems. Its operational temperature range from -40°C to 105°C allows use in extreme environmental conditions found in automotive controls, telecommunications systems, medical instruments, industrial automation, and test equipment.

The AMPMODU HE14 interconnect system is a reliable and economical wiring solution, supporting discrete wires or 2.54 mm pitch ribbon cables via mating IDC receptacles. This makes it an ideal choice for board-to-wire connections in commercial and industrial electronics.

High temperature UL 94V-0 thermoplastic housing ensures durability and safety. Shrouded pin design provides protection from accidental damage and mismating. Integrated friction lock mechanism secures connections under vibration and movement.

Phosphor bronze contacts with tin plating offer stable electrical performance and corrosion resistance. Rated for 3A current and 500V voltage to handle typical industrial signals. Operating temperature range from -40°C to 105°C supports diverse environments.

Single row, 2.54 mm pitch compatible with AMPMODU HE14 IDC receptacles for versatile wiring options. Applications include automotive controls, industrial equipment, telecommunications, medical instruments, and storage devices.

Choose TE Connectivity AMPMODU HE14 series for a reliable, high-quality interconnect system that meets rigorous industrial standards. Browse more electronic components and connectors at EnvMart for your project needs.
