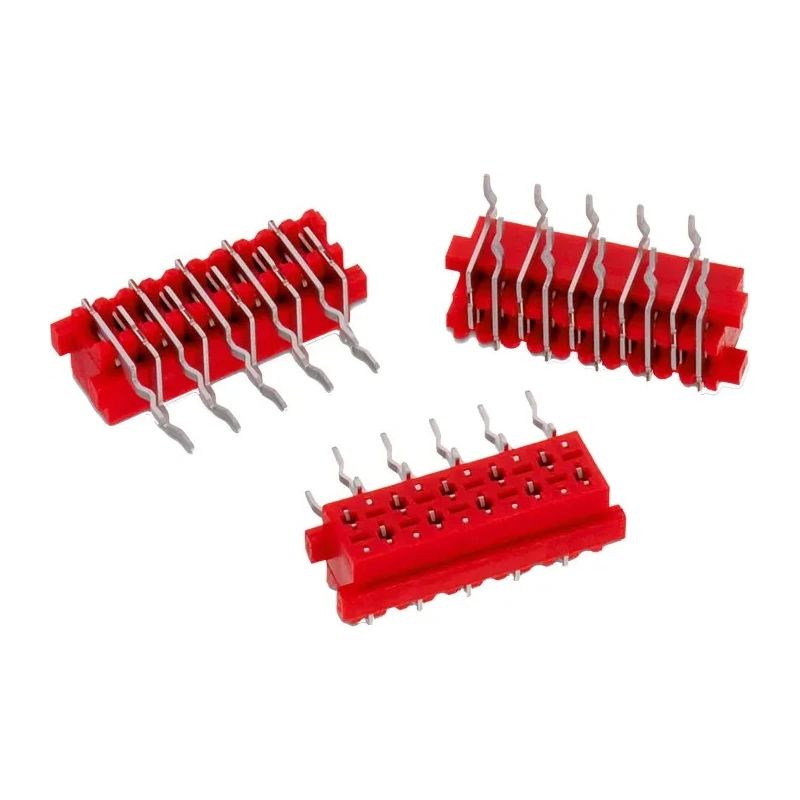

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded 690368182672
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- This PCB header series WR-MM features a shrouded design and two rows of female contacts.
- The contact material is phosphor bronze with matt tin plating over nickel for reliable conductivity.
- It supports a current rating of 1.5 A and a voltage rating up to 250 V.
- Housing material is durable Polybutylene Terephthalate with UL94 V-0 flammability rating.
- It operates within a temperature range of -40°C to 105°C, suitable for demanding electronic applications.
- The connector system is wire-to-board with a solder termination and a tail pin length of 2.9 mm.
- This component is RoHS compliant and carries UL E323964 certification for quality assurance.
Product Description
Wurth Elektronik 690368182672 WR-MM Series PCB Header is a high-quality right angle through hole connector designed for secure and reliable board connections. It features 26 female contacts arranged in two rows with a 2.54 mm pitch, suited for electronics manufacturing and assembly.
The contacts are made of phosphor bronze and plated with matt tin over nickel to ensure excellent electrical performance and resistance to corrosion. The housing uses flame-retardant Polybutylene Terephthalate with UL94 V-0 rating, providing safe operation under industrial standards.
This PCB header is rated for 1.5 A current and can withstand voltages up to 250 V. It functions effectively in temperatures ranging from -40°C to 105°C, making it ideal for use in various industrial, electronic, and HVAC applications.
The design includes a shrouded connector system and right angle orientation to optimize PCB layout and wire routing. Its through hole mount type with solder termination provides mechanical stability and ease of assembly.
Certified to RoHS standards and with UL E323964 approval, this component assures compliance and durability for professional and commercial electronics projects. This 26-contact PCB header is part of the WR-MM series by Wurth Elektronik.
Right angle orientation and shrouded design enhance PCB system reliability. Wire-to-board connector system with solder termination type. Materials selected conform to industrial flame resistance and longevity requirements.
Ideal for industrial, laboratory, commercial, and manufacturing electronic applications. For further PCB connector options, explore related Wurth Elektronik products and additional PCB Headers available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1.5 A.
It has a voltage rating of up to 250 V.
The contacts are arranged with a pitch size of 2.54 mm.
This model features 26 female contacts arranged in two rows.
The housing is made from Polybutylene Terephthalate, while the contacts are made of phosphor bronze with matt tin plating over nickel.
It operates effectively within a temperature range of -40°C to 105°C.
This model uses a solder termination type for secure connections.
Yes, it is RoHS compliant and carries UL E323964 certification.
The tail pin length is 2.9 mm.
It utilizes a wire-to-board connector system.
This PCB header has a right angle orientation, optimizing PCB layout and wire routing.
The country of origin for this product is China.
