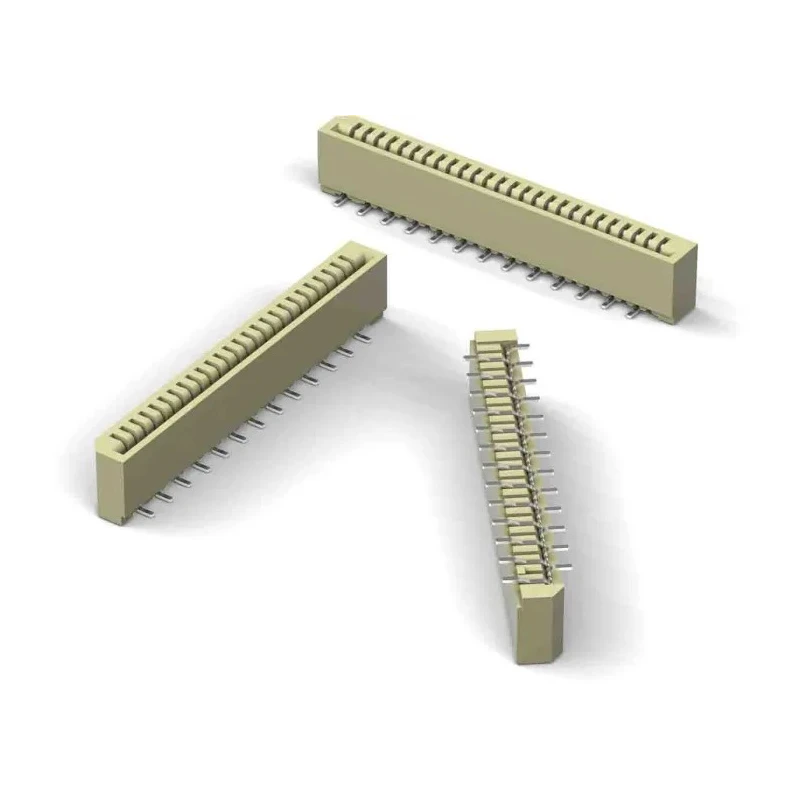

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 9 Contacts, 1 mm Pitch, 1 Row, Shrouded 686109188822

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 9 Contacts, 1 mm Pitch, 1 Row, Shrouded 686109188822

Name: Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 9 Contacts, 1 mm Pitch, 1 Row, Shrouded 686109188822
Brand: Wurth Elektronik
SKU: 163990
Price: 861.44 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	Wurth Elektronik
Orientation	Vertical
Current	1A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	WR-FPC
Termination Type	Solder
Maximum Operating Temperature	85°C
Contact Type	Stamped
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Standards/Approvals	RoHS
Contact Plating	Tin over Nickel
Number of Contacts	9
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with high-quality Liquid Crystal Polymer housing for durability.
Supports current rating of 1 ampere and voltage up to 125 volts AC.
Features phosphor bronze contacts plated with tin over nickel for enhanced conductivity and corrosion resistance.
Designed for vertical orientation and surface mount installation.
Operates reliably between -25°C to 85°C for varied environmental conditions.
Stamped contact type ensures precise electrical connection.
Compliance with RoHS standards guarantees environmentally safe materials.
Shrouded connector design provides protection and prevents misconnections.

Product Description

Wurth Elektronik 686109188822 WR-FPC Series vertical surface PCB header delivers precise and reliable interconnection for electronic devices requiring compact board-to-wire connections. This 9-contact header features a fine 1 mm pitch and a single row configuration ideal for space-constrained circuit board assemblies. The housing employs durable Liquid Crystal Polymer (LCP) materials, providing excellent mechanical strength and thermal stability across an operating temperature range from -25°C to 85°C.

The phosphor bronze contacts are stamped and plated with 2.032 μm tin over 1.27 μm nickel, ensuring long-lasting, low-resistance connections rated for 1 ampere current and 125 volts AC. Its vertical orientation combined with surface mount technology facilitates easy PCB integration while the shrouded design adds safety by securing correct cable insertion and preventing accidental disconnections.

This connector series is RoHS compliant, reflecting Wurth Elektronik's commitment to environmentally responsible manufacturing. It suits applications in industrial, electronic, and communication equipment requiring reliable and compact wire-to-board connections with robust mechanical and electrical performance.

Key Features:. Durable Liquid Crystal Polymer housing ensures high mechanical resilience. Rated for 1A current and 125V voltage suitable for low-power applications. Phosphor bronze contact material with tin-over-nickel plating for corrosion resistance.

Vertical, surface mount design with shrouded connector system enhances reliability. Wide operating temperature range from -25°C to 85°C supports diverse environments. Stamped contacts provide precise, consistent electrical connections.

RoHS compliant for environmentally safe usage. Compact 9-contact, 1 mm pitch layout fits tight PCB designs.

This Wurth Elektronik WR-FPC series product is an excellent choice for engineers and manufacturers looking for high-quality PCB Headers suitable for industrial electronics, communication devices, and precise electrical connections. Browse the Electronics Components category for compatible connectors and accessories to complete your assembly.
