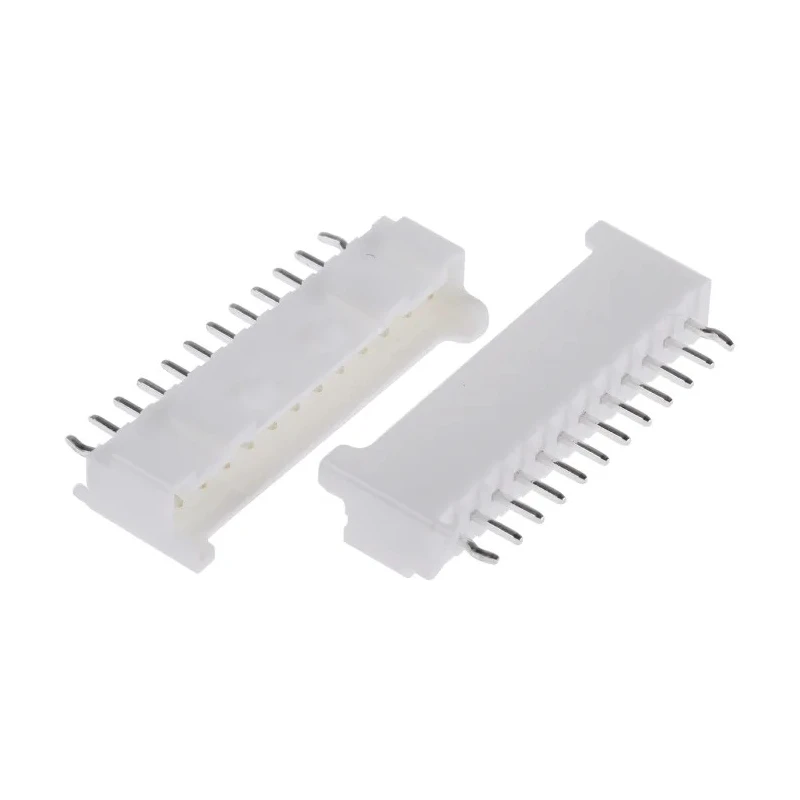

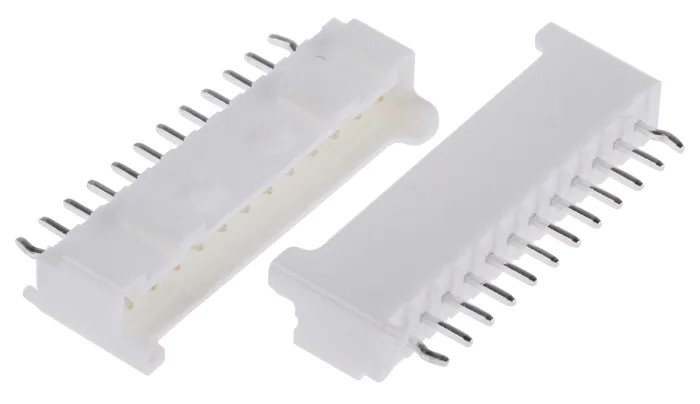

JST PA Series Straight Through Hole PCB Header, 12 Contacts, 2 mm Pitch, 1 Row, Shrouded B12B-PASK-1 (LF) (SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B12B-PASK-1 (LF) (SN) |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | PA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- The connector is designed for wire-to-board applications with a secure locking mechanism.
- It supports a current rating of 3A and voltage up to 250V.
- Constructed with copper alloy contacts plated in tin for reliable conductivity.
- This PCB header has a minimum operating temperature of -25°C and maximum of 85°C.
- The solder termination type and male contact gender provide secure and easy assembly.
- Features low insertion force header pins and polarising guides for ease of use.
- Top entry design prevents accidental disconnection during operation or vibration.
- Manufactured in Malaysia, suitable for industrial and electronic manufacturing use cases.
Product Description
JST B12B-PASK-1 (LF) (SN) is a robust PA Series Straight Through Hole PCB Header featuring 12 contacts arranged in a single row with a 2 mm pitch, manufactured for secure wire-to-board connections in electronic assemblies. Its shrouded design offers additional protection and vibration resistance, making it ideal for industrial, manufacturing, and laboratory PCB applications.
The connector system uses copper alloy contacts with tin plating to ensure excellent electrical conductivity and corrosion resistance. It supports a continuous current of 3A and withstands voltages up to 250V, suitable for various low voltage electronic devices.
Operating reliably within a temperature range of -25°C to 85°C, this PCB header accommodates demanding environmental conditions. Installation is simplified with the low insertion force header pins and polarising guides that prevent incorrect mating. The 3 mm mating pin length further assures a firm and consistent connection on the PCB.
The solder termination type with a male contact gender enables stable and efficient mounting on printed circuit boards, while the top entry design incorporates a thumb depress locking mechanism to prevent accidental disconnection due to vibration or handling.
The connector system supports wire-to-board interconnections with a locking device feature. The PA range includes top entry and side entry headers compatible with suitable housings. Shrouded housing offers vibration resistance and secure engagement.
Pins have low insertion force and polarising guides ensure correct connections. This product is suitable for electronic manufacturing, industrial machinery, and other applications requiring secure PCB connections.
Manufactured in Malaysia, this PCB Header delivers reliable performance for engineering, commercial, and industrial electronics applications. Explore more PCB connectors and components in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a continuous current of 3A and withstands voltages up to 250V.
The contacts in this model are arranged with a pitch of 2 mm.
It operates reliably within a temperature range of -25°C to 85°C.
This model features a solder termination type.
It has a total of 12 contacts arranged in a single row.
The contacts are made from copper alloy and are plated in tin for conductivity.
This connector has a straight orientation design.
It features low insertion force header pins and polarising guides to prevent incorrect mating during installation.
This product is manufactured in Malaysia.
It supports a wire-to-board connector system, designed for secure interconnections.
The mating pin length is 3 mm, ensuring a firm connection on the PCB.
This PCB header is suitable for industrial, manufacturing, and laboratory PCB applications.
