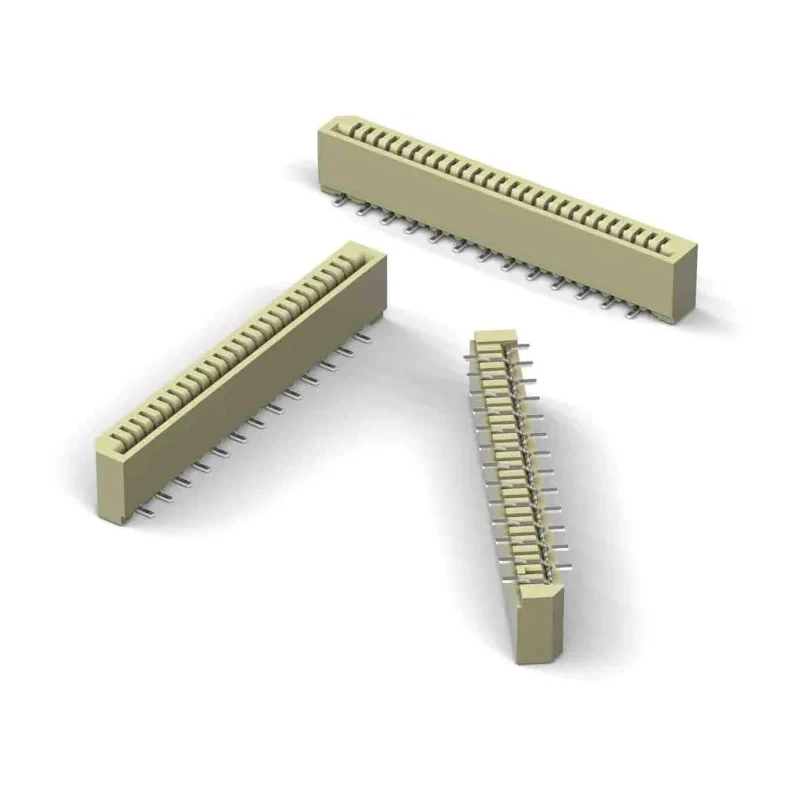

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header 14 Contacts 1mm Pitch 1 Row Shrouded 686114188822

Wurth Elektronik 686114188822 is a high-quality WR-FPC series vertical surface PCB header designed for precise electronic component connections. Featuring 14 contacts spaced at a 1 mm pitch, this shrouded, single-row header offers robust mechanical and electrical performance for demanding PCB applications.

This series is constructed with a liquid crystal polymer housing material, ensuring excellent resistance to heat and chemicals, which supports operating temperatures ranging from -25°C to 85°C. The contacts, crafted from phosphor bronze and plated with 2.032 μm tin over 1.27 μm nickel, provide low contact resistance and corrosion protection, enhancing durability and conductivity.

Rated for 1 A current and 125 V AC voltage, this PCB header is suitable for a broad range of industrial and electronic applications including power connectors, signal interfaces, and wire-to-board connections. The vertical orientation and surface mount technology facilitate easy and stable mounting on PCBs.

Termination via soldering ensures a reliable, long-lasting connection in various operating environments. The shrouded design affords added protection against accidental contact and enhances connector alignment during assembly.

Compliant with RoHS standards, this product aligns with environmental regulations, making it suitable for eco-conscious manufacturing. This PCB header supports a current rating of 1 A. The housing is made from liquid crystal polymer, providing durability.

Vertical orientation and surface mount type enable effective PCB assembly. Contacts are phosphor bronze with tin over nickel plating for corrosion resistance. Designed for operation between -25°C to 85°C. Termination is through soldering, ensuring reliable electrical connection.

Voltage rating is 125 V AC suitable for various electronics applications. Complies with RoHS standards for environmental safety.

Ideal for industrial electronics manufacturing, laboratory PCB assembly, and advanced telecom equipment, this Wurth Elektronik WR-FPC series header enhances connectivity reliability and PCB compactness.
