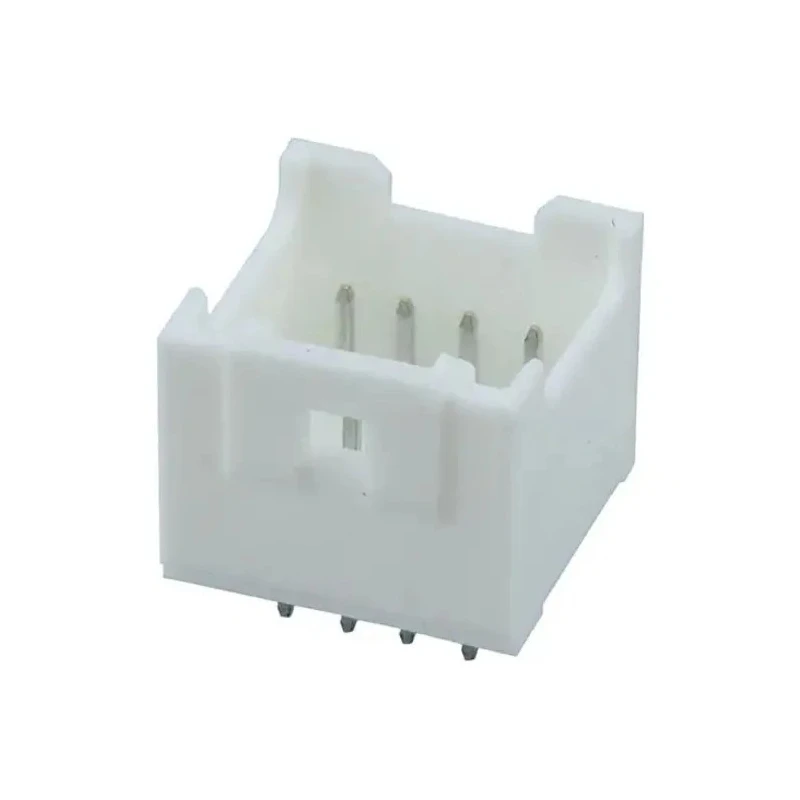

Molex MicroClasp Series Vertical Through Hole PCB Header 8 Contacts 2mm Pitch 2 Row Shrouded 559170830

Molex 559170830 MicroClasp Series Vertical Through Hole PCB Header is designed for high reliability in electronic applications requiring wire-to-board connection with 8 male contacts in a 2 row layout and a 2 mm pitch spacing.

This shrouded connector features a vertical orientation with polyester housing that ensures mechanical robustness and insulation. The connector supports solder termination and has a tail pin length of 3.2 mm for efficient PCB assembly.

The contacts and plating use tin materials providing resistance against corrosion and maintaining excellent electrical conductivity. It is rated to carry up to 3 A current at a maximum voltage of 250 V, withstanding operating temperatures from -40°C to 105°C, suitable for varied industrial and commercial environments.

Molex 559170830 conforms to UL standard E29179 ensuring compliance with safety and performance requirements.

This PCB header is ideal for applications in industrial electronics, manufacturing, telecommunications, and electronics assembly requiring robust, secure connectors in through-hole mount format.

Vertical orientation with through hole mount type ensures sturdy PCB connection. 8 male contacts in 2 rows with 2 mm pitch for high-density connectivity. Polyester housing provides mechanical strength and insulation. Tinned contacts and plating resist corrosion and enhance performance.

Rated for 250 V and 3 A suitable for diverse electronic applications. Operating temperature range from -40°C to 105°C suitable for harsh conditions. Tail pin length of 3.2 mm facilitates secure soldering on PCB. Shrouded design protects contacts and ensures correct mating.

UL E29179 standard compliance confirms quality and safety. Explore more Molex PCB connectors and related components to suit your electronic design and manufacturing needs at EnvMart.
