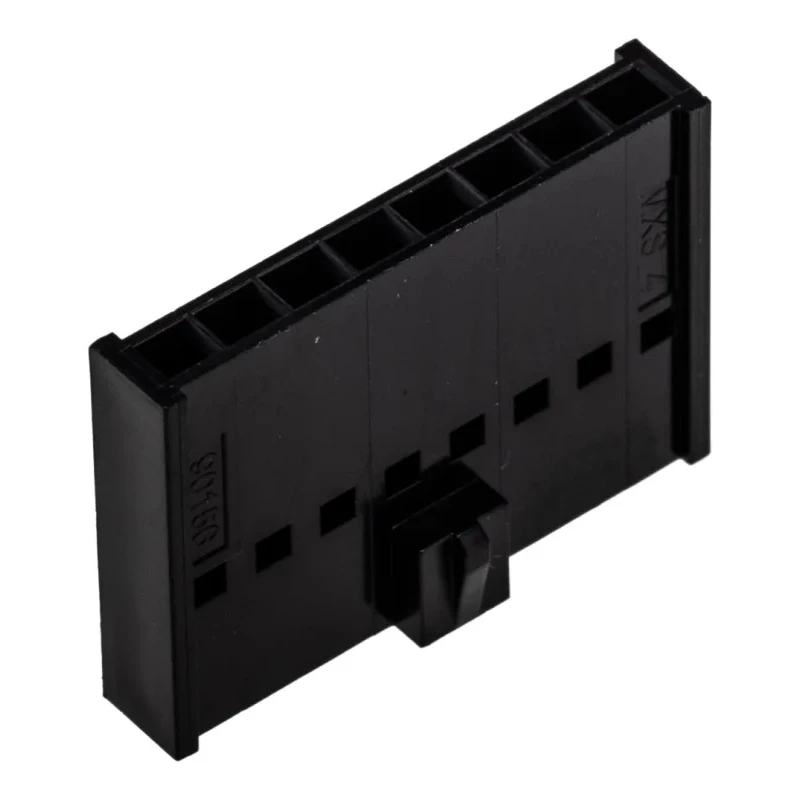

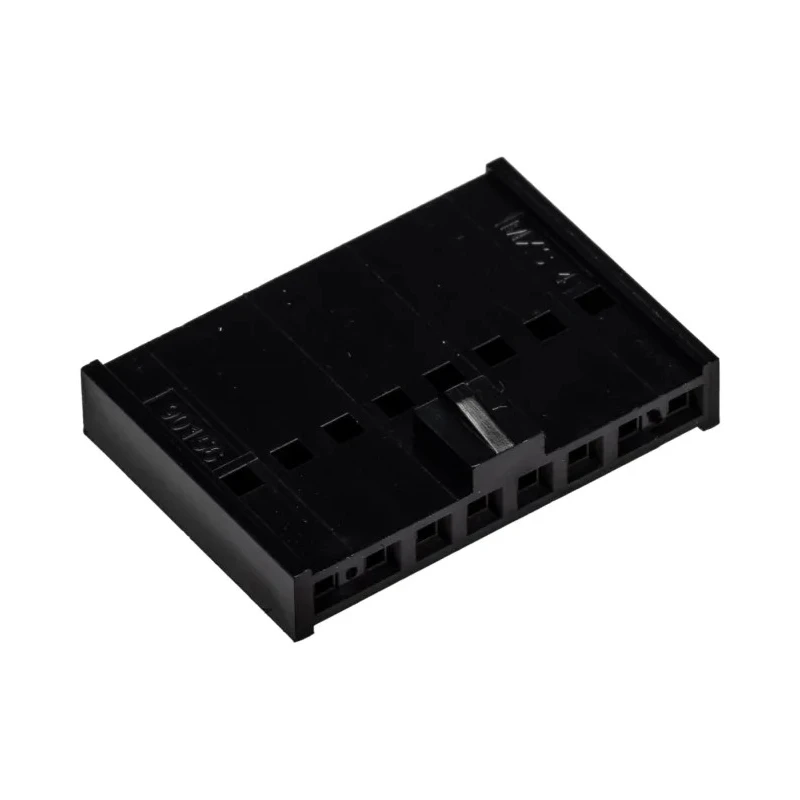

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 8 Way 1 Row Straight 90156-0148
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 21.38mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- This connector housing is designed for durable cable to board interconnections.
- Constructed from black polyphenylene oxide housing for high durability.
- The uniform locking system ensures secure contact retention.
- Modular design offers flexibility within electronic applications.
- Compatible with C-Grid III connector range for versatile use.
- Measures 21.38 mm length and 5.35 mm width, suitable for compact assemblies.
- Excellent for commercial and consumer electronics requiring reliable connectivity.
- No certifications or approvals are specified for this model.
Product Description
Molex 90156-0148 C-Grid III Female Connector Housing, featuring an 8-way single row straight cable mount configuration with a 2.54 mm pitch, is part of Molex's C-Grid III interconnection system.
This connector housing meets the needs of diverse industrial and commercial electronic applications requiring robust and reliable cable to board connections. Manufactured using high-quality polyphenylene oxide material, the housing is black in color, ensuring resistance to wear and environmental factors.
The connector's modular and flexible design allows interchangeability and compatibility with other C-Grid III components, simplifying design complexity in electronics manufacturing and assembly processes.
With a length of 21.38 mm and width of 5.35 mm, it fits compact PCB layouts without compromising performance. The housing features a uniform locking system ensuring that contacts remain securely in place, enhancing electrical reliability.
This product provides a 2.54 mm pitch for standard spacing requirements. Offers 8 contacts arranged in a single row for efficient signal transmission. Designed specifically for cable mount applications within electronic devices.
Compatible with the C-Grid III connector series across various configurations. Constructed from polyphenylene oxide material for durability and longevity. Ideal for use in electronic, commercial, and consumer electronic manufacturing.
Supports a wide range of interconnection packaging alternatives in industrial electronics. Black color housing provides visual identification and aesthetic unity in device assemblies.
This Connector Housing is suitable for industrial, commercial, and manufacturing environments requiring reliable electronic component interconnectivity. It is particularly well-suited for applications involving PCB connectors and wire housings.
Explore more products in the Molex C-Grid III range for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, which is suitable for standard spacing requirements in electronic applications.
This model features 8 contacts arranged in a single row, facilitating efficient signal transmission.
The housing measures 21.38 mm in length and 5.35 mm in width, making it suitable for compact PCB layouts.
It is constructed from polyphenylene oxide, which provides durability and resistance to wear and environmental factors.
This model uses a cable mount configuration, designed specifically for cable to board interconnections.
It is compatible with the C-Grid III connector series, allowing for versatile use in various configurations.
The orientation of this connector housing is straight, which is typical for cable mount applications.
No certifications or approvals are specified for this connector housing model.
This housing is ideal for industrial, commercial, and consumer electronics requiring reliable cable to board connections.
This model has 1 row, which accommodates the 8 contacts in a single row configuration.
The country of origin for this connector housing is India.
It features a uniform locking system that ensures secure contact retention, enhancing electrical reliability.
