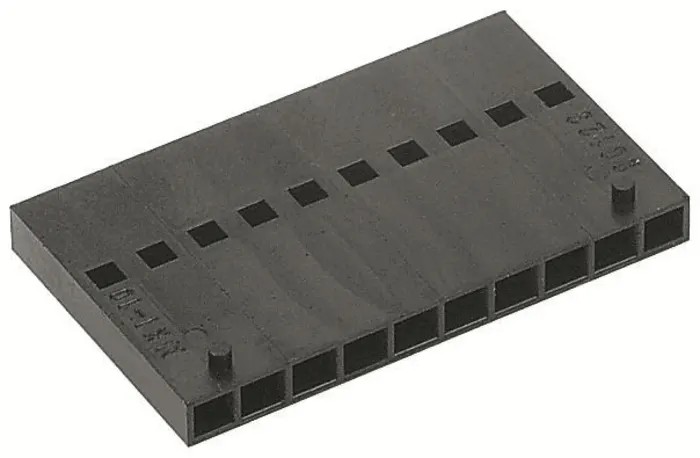

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 20 Way 1 Row Straight 90123-0120
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 50.8mm |
| Width | 3.43mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | 797582022 CGrid III Pre-Crimped Lead, 797582023 CGrid III Pre-Crimped Lead, 90119 C-Grid III Crimp Terminal |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Constructed from durable polyamide housing material ensuring reliable insulation.
- Designed for use with C-Grid III pre-crimped leads and crimp terminals.
- Complies with DIN 41651 and HE13/14 standards for consistent quality.
- Compact dimensions with length 50.8 mm and width 3.43 mm for space saving.
- Non-locking, single row housing facilitating easy assembly and installation.
- Suitable for industrial electronic component and power connector applications.
- Female connector gender with straight orientation for secure cable connection.
Product Description
Molex 90123-0120 C-Grid III female connector housing is an industrial-grade connector housing featuring a 2.54 mm pitch and 20 way, 1 row straight layout. It is engineered for cable mount applications and constructed from robust polyamide housing material, offering strong insulation and durability.
This connector housing is designed for compatibility with 797582022 and 797582023 C-Grid III pre-crimped leads, and 90119 C-Grid III crimp terminals, ensuring seamless integration in electronic assemblies.
The housing conforms to DIN 41651 and HE13/14 standards, assuring high manufacturing quality and performance consistency. Its compact dimensions of 50.8 mm length and 3.43 mm width allow for efficient use in densely packed electronic equipment.
Featuring a non-locking, single row design, it facilitates straightforward assembly and maintenance while securely housing the female contacts with straight orientation. This makes it well-suited for use in electronic components, power connectors, manufacturing, industrial automation, and other technical applications.
Constructed from polyamide housing material for enhanced durability. 20 contact positions arranged in 1 row with 2.54 mm pitch. Cable mount type with straight orientation design. Compatible with C-Grid III pre-crimped leads and terminals.
Meets DIN 41651 and HE13/14 industry standards. Compact size supporting space-efficient electronic designs. Non-locking, single row for easy installation and servicing.
This connector housing is manufactured in Singapore, assuring adherence to high-quality manufacturing processes. It is ideal for use in electronics manufacturing, laboratory instrumentation, industrial automation, and other technical fields requiring reliable cable connector solutions.
Explore our extensive range of electronic connectors and Connector Housings at EnvMart for reliable connectivity solutions tailored to your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
It accommodates 20 contacts arranged in a single row.
The dimensions are 50.8 mm in length and 3.43 mm in width.
The housing is constructed from polyamide material, providing reliable insulation.
It is compatible with 797582022 and 797582023 C-Grid III pre-crimped leads, as well as the 90119 C-Grid III crimp terminal.
The connector housing has a straight orientation, facilitating secure cable connection.
It complies with DIN 41651 and HE13/14 standards for consistent quality.
This model supports cable mount applications.
It is manufactured in Singapore, ensuring adherence to high-quality manufacturing processes.
It is suitable for industrial electronic component and power connector applications.
The non-locking, single row design facilitates straightforward assembly and maintenance.
The connector housing is female gendered, designed for secure cable connections.
