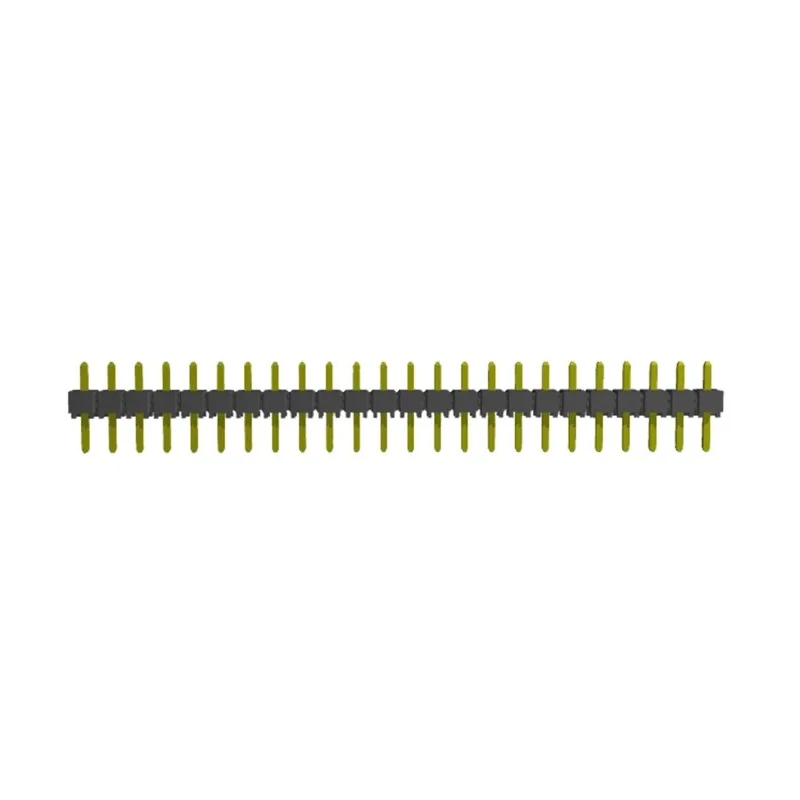

Samtec Pin Header Through Hole Board-to-Board Connector 24 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-124-05-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Model | TSW-124-05-G-S |
| Mount Type | Through Hole |
| Special Features | Many options fo |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- The connector is unshrouded and straight in orientation, suitable for vertical mounting.
- Constructed with glass filled polyester housing for high durability.
- Contacts are made of phosphor bronze plated with gold for excellent conductivity and corrosion resistance.
- Designed for operation within temperature range from -55°C to 125°C.
- Operates at voltage up to 550V ensuring high performance in electronic applications.
- Termination is by solder through-hole ensuring secure mechanical and electrical connection.
- The contact system features .025 inch (0.635 mm) square posts for precise fit.
- Widely used in industrial, electronic component manufacturing, and PCB assembly applications.
Product Description
Samtec TSW-124-05-G-S is a premium pin header connector designed for through hole mounting on printed circuit boards. It features 24 male contacts arranged in a single row with a 2.54 mm pitch, providing a robust and reliable board-to-board connection solution.
The connector housing is manufactured from durable glass filled polyester material, ensuring excellent mechanical strength and thermal stability for industrial use cases.
Contacts are crafted from high-quality phosphor bronze with gold plating, enhancing signal integrity and corrosion protection. The termination type is solder through-hole, which secures the connector firmly to the PCB, ideal for demanding environments requiring reliable electrical connections.
The device supports a wide operating temperature range from -55°C to 125°C and can handle voltages up to 550V, making it suitable for harsh industrial and electronic applications including manufacturing, instrumentation, and automated systems.
Key features include its straight, unshrouded orientation and .025 inch square post contact system designed for compatibility with multiple industry-standard terminal lengths and pin counts.
The connector is unshrouded and straight in orientation, allowing easy access and soldering. Glass filled polyester housing ensures high durability under mechanical stress. Phosphor bronze gold-plated contacts provide excellent electrical conductivity.
Operates over a wide temperature range of -55°C to 125°C for versatile applications. Supports high voltage up to 550V for reliable performance. Through hole termination type facilitates strong PCB mounting. 24 male contacts arranged in a single row enable compact design.
Square post contact system ensures precise board connection. Suitable for industrial, electronic manufacturing, and assembly uses.
This Samtec pin header is part of the TSW series, known for its quality and versatility in connecting electronic components. It matches well with industry needs for PCB headers and board-to-board connectors often used in construction, laboratory instrumentation, HVAC controls, and manufacturing machinery.
Explore more PCB Headers and electronic connectors within the Electronics & Electricals category at EnvMart for solutions tailored to your technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a maximum temperature range of 125°C.
The contacts are arranged with a pitch of 2.54 mm.
This model features 24 male contacts arranged in a single row.
It can handle voltages up to 550V, making it suitable for high-performance applications.
The housing is made from glass filled polyester, ensuring high durability.
It uses through-hole termination, which is soldered to the PCB for a secure connection.
It has a straight orientation, suitable for vertical mounting.
The contacts are made of phosphor bronze and are plated with gold for enhanced conductivity.
It is widely used in industrial, electronic component manufacturing, and PCB assembly applications.
It features a .025 inch (0.635 mm) square post contact system for precise fit.
The connector is manufactured in India.
It features gold-plated contacts and through-hole termination for secure mechanical and electrical connections.
