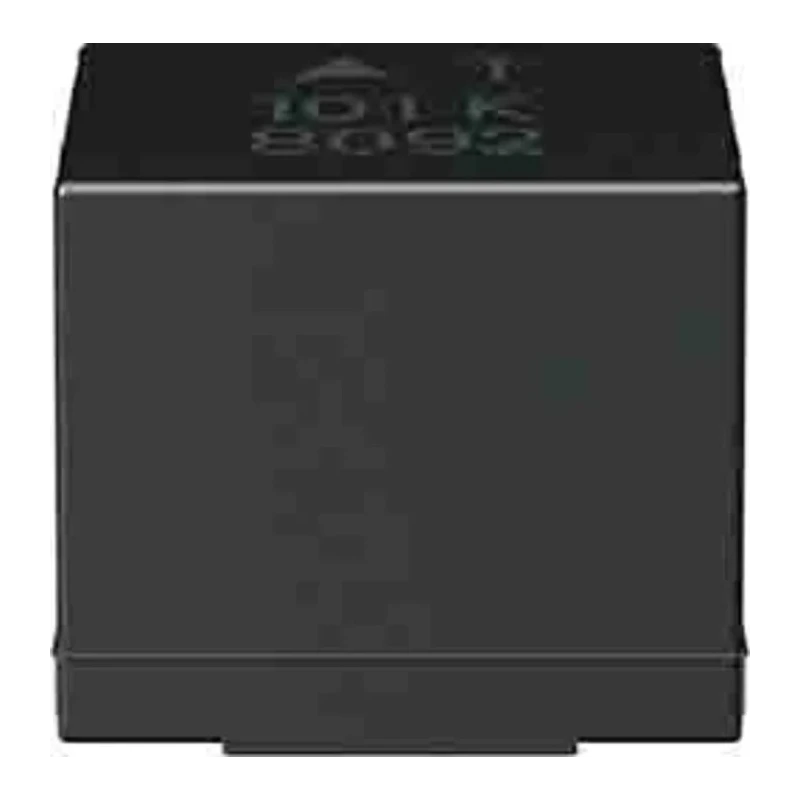

TDK Wirewound Surface Mount Inductor 82 μH ±10 % 540 mA DC Current Ferrite Core 2220 Case B82442T1823K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1823K000 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 82μH |
| Standards/Approvals | JEDEC J-STD 020D, RoHS, AEC-Q200 |
| Package/Case | 2220 |
| Maximum DC Current | 540mA |
| Maximum DC Resistance | 832mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6.6MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Uses a ferrite core material for high efficiency.
- Comes in 2220 case size suitable for surface mounting.
- Operates within a temperature range of -55°C to 150°C.
- Has a maximum DC resistance of 832 milliohms, minimizing power loss.
- Qualified to AEC-Q200 automotive standard for high reliability.
- Supports solder termination style compatible with lead-free reflow soldering.
- Provides a minimum quality factor of 15 for consistent performance.
- Maximum self-resonant frequency is 6.6 MHz for high-frequency applications.
Product Description
The TDK B82442T1823K000 model is a wirewound surface mount inductor featuring an 82 μH inductance with ±10 % tolerance and a maximum DC current rating of 540 mA. It incorporates a ferrite drum core designed for efficient power filtering in a compact 2220 package size, measuring approximately 5.6 mm in length, 5 mm in height, and 5 mm in depth.
This surface mount inductor series, SIMID, uses laser-welded wire winding combined with flame-retardant molding, ensuring durability and reliability under industrial and automotive operating conditions. It meets AEC-Q200 qualification standards and is RoHS compliant, designed for automotive electronics, telecommunications, consumer, and industrial electronics.
Key electrical characteristics include a maximum DC resistance of 832 milliohms and a minimum quality factor of 15, providing efficient energy storage and filtering in switching power supplies, DC-DC converters, and noise suppression applications. The inductor supports operating temperatures from -55°C up to 150°C and is shield-free, offering flexibility where shielding is not required.
Package format is tape and reel, optimized for automated PCB assembly processes and lead-free soldering methods compliant with JEDEC J-STD 020D. Ferrite core construction optimized for high-Q and stable inductance. AEC-Q200 automotive qualified ensuring reliability in harsh environments.
Suitable for filtering, decoupling, and energy storage in power electronics. Compatible with surface mount technology and automated pick-and-place assembly. RoHS and halogen-free compliance guarantees environmentally safe manufacturing.
Moulded design provides mechanical protection and flame resistance.
This TDK inductor is a perfect choice for demanding applications in industrial, automotive, telecommunications, and consumer electronics sectors requiring robust, high-performance inductors.
Explore more electronic components and Surface Mount Inductors at EnvMart for precise electrical and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 82 μH with a tolerance of ±10%.
It has a maximum DC current rating of 540 mA, suitable for various applications.
The maximum DC resistance is 832 milliohms, which helps minimize power loss during operation.
This inductor operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The maximum self-resonant frequency is 6.6 MHz, allowing for high-frequency applications.
It uses a ferrite core material, which is designed for high efficiency in power filtering.
The dimensions are approximately 5.6 mm in length, 5 mm in height, and 5 mm in depth.
This model is packaged in tape and reel format, optimized for automated PCB assembly processes.
Yes, it is compliant with JEDEC J-STD 020D, RoHS, and qualified to AEC-Q200 automotive standards.
The minimum quality factor is 15, ensuring efficient energy storage and filtering performance.
It supports a solder termination style that is compatible with lead-free reflow soldering methods.
This inductor is suitable for filtering, decoupling, and energy storage in power electronics, including automotive and telecommunications applications.
