TDK Wirewound Surface Mount Inductor 47μH ±10% 85mA Idc 1210 Package with Ferrite Core B82422A1473K100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 3.2mm |
| Model | B82422A1473K100 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | B82422A*100 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 85mA |
| Maximum DC Resistance | 7Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 11MHz |
| Minimum Quality Factor | 27 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| TDK, NLFC3225 Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 85mA Idc Q | 10Brand: TDK |
Key Features
- Constructed with a ferrite core for optimal magnetic properties.
- Wirewound design ensures high quality factor and stable inductance.
- Rated for operation between -55°C and 125°C temperature range.
- Features a maximum DC resistance of 7Ω ensuring low power loss.
- Meets AEC-Q200 automotive standard for reliability.
- Suitable for surface mount application with tape and reel packaging.
- Designed for use in high frequency circuits up to 11MHz self resonant frequency.
- High resonance frequency supports advanced electronic applications.
Product Description
TDK B82422A1473K100 is a high-quality wirewound surface mount inductor featuring a ferrite core and encapsulated in a 1210 package case. With an inductance value of 47μH ±10% and a maximum DC current rating of 85mA, this inductor is well-suited for precision electronics applications requiring stable magnetic response.
Its construction employs wirewound technology that provides a minimum quality factor of 27 and supports high resonance frequency operation up to 11MHz, making it ideal for high-frequency filtering and energy storage in power circuits. The ferrite core material enhances magnetic efficiency and reduces core losses.
The inductor is designed to endure harsh environmental conditions with operating temperatures ranging from -55°C to 125°C and complies with the AEC-Q200 automotive standard, ensuring reliability in automotive and industrial electronics.

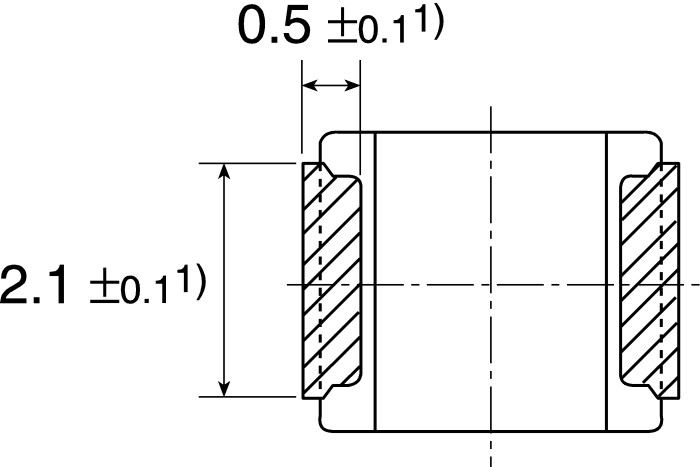

Featuring a compact 3.2mm length, 2mm height, and 2.5mm depth, the B82422A1473K100 is molded and suitable for surface mount placement. The termination style is optimized for automated PCB assembly using tape and reel packaging, enabling efficient production workflows.
Constructed with a ferrite core for excellent magnetic properties. Wirewound type for a high quality factor and effective inductance. Rated for temperatures from -55°C up to 125°C. Maximum DC resistance of 7Ω to minimize losses.
Adheres to RoHS standards for environmental compliance. Meets the stringent AEC-Q200 automotive qualification. Supports reflow soldering methods including IR and vapor phase. Compact 1210 case dimensions for space-efficient PCB layouts.
Moulded construction ensures mechanical robustness. High self-resonant frequency up to 11MHz for demanding circuitry.
This TDK wirewound Surface Mount Inductor is suitable for industrial, automotive, and consumer electronics applications demanding compact, reliable inductors with consistent performance under variable environmental conditions. It is commonly used in power supplies, filtering, RF circuits, and signal conditioning.
Explore a comprehensive range of electronic components, including inductors, at EnvMart to meet your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 47μH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 85mA.
It is rated for operation between -55°C and 125°C.
The maximum DC resistance is 7Ω, which helps minimize power loss.
The maximum self-resonant frequency is 11MHz, suitable for high-frequency applications.
It is constructed with a ferrite core, which enhances its magnetic properties.
The dimensions are 3.2mm in length, 2mm in height, and 2.5mm in depth.
It is packaged in tape and reel format, which is suitable for automated PCB assembly.
This model complies with the AEC-Q200 automotive standard, ensuring reliability in automotive applications.
The minimum quality factor is 27, indicating good performance in high-frequency applications.
Yes, it adheres to RoHS standards for environmental compliance.
It is suitable for use in power supplies, filtering, RF circuits, and signal conditioning in various electronic applications.
