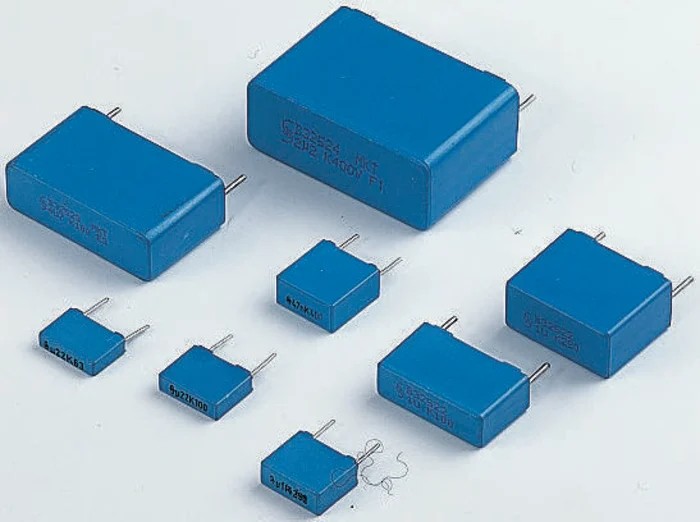

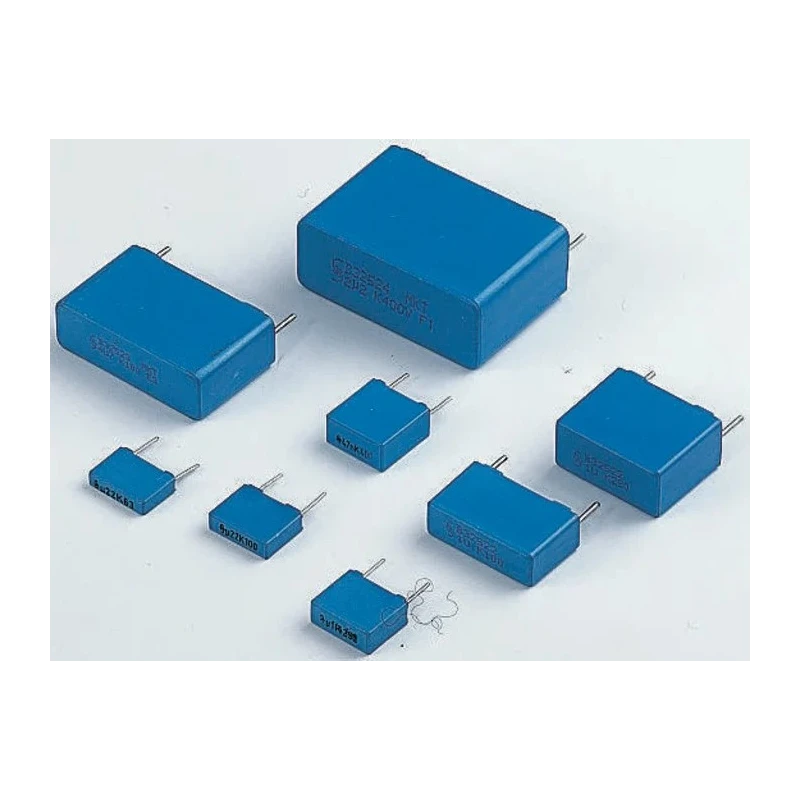

TDK Film Capacitor 47 nF, 200V AC, 630V DC, Through Hole, Polyethylene Terephthalate Dielectric B32522Q8473K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 47 nF, 200V AC, 630V DC, Through Hole, Polyethylene Terephthalate Dielectric B32522Q8473K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32522Q8473K000
Width	5mm
Mount Type	Through Hole
Series	B32522
Maximum Operating Temperature	125°C
Capacitance	47nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	200V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Dielectric	Polyethylene Terephthalate (Polyester)
Automotive Standard	AEC-Q200 Rev D

Key Features

The capacitor uses Polyethylene Terephthalate (Polyester) dielectric material for stable performance.
Rated maximum operating temperature is 125°C ensuring durability in harsh environments.
Lead pitch is 15mm with 2 pins of 0.8mm diameter for secure PCB mounting.
Compact physical dimensions of 18mm length, 10.5mm height, and 5mm width allow integration in tight spaces.
High pulse strength and compliance with automotive standard AEC-Q200 Rev D provide robust operation.
Encapsulated in a UL 94 V-0 plastic case with epoxy resin sealing for protection against environmental factors.
Complies with RoHS and UL standards to meet safety and environmental requirements.

Product Description

TDK B32522Q8473K000 Film Capacitor features a capacitance of 47 nF with a rated AC voltage of 200V and a DC voltage rating of 630V. This through-hole mounted capacitor is constructed using Polyethylene Terephthalate (Polyester) dielectric, ensuring consistent electrical performance and durability.

Its lead pitch of 15mm and pin count of 2 make it suitable for standard PCB through-hole assembly processes. The capacitor's overall compact dimensions of 18mm length, 10.5mm height, and 5mm width facilitate its use in dense electronic circuits.

The component is designed to operate reliably up to 125°C, backed by high pulse strength and high contact reliability, making it suitable for demanding industrial and automotive electronics applications. Compliance with automotive standard AEC-Q200 Rev D further assures its capability for use in automotive environments.

The capacitor is housed in a UL 94 V-0 rated plastic case and sealed with epoxy resin for protection against moisture and mechanical stress. It meets RoHS and UL standards, confirming its environmental compliance and safety certifications.

This Film Capacitor is ideal for electronics manufacturing, industrial control systems, automotive electronics, and various power electronics applications where stable capacitance and high reliability are critical.

The capacitor uses Polyethylene Terephthalate (Polyester) dielectric material for stable performance. Rated maximum operating temperature is 125°C ensuring durability in harsh environments. Lead pitch is 15mm with 2 pins of 0.8mm diameter for secure PCB mounting.

Compact physical dimensions of 18mm length, 10.5mm height, and 5mm width allow integration in tight spaces. High pulse strength and compliance with automotive standard AEC-Q200 Rev D provide robust operation. Encapsulated in a UL 94 V-0 plastic case with epoxy resin sealing for protection against environmental factors.

Complies with RoHS and UL standards to meet safety and environmental requirements. Explore more electronic components and related items in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
