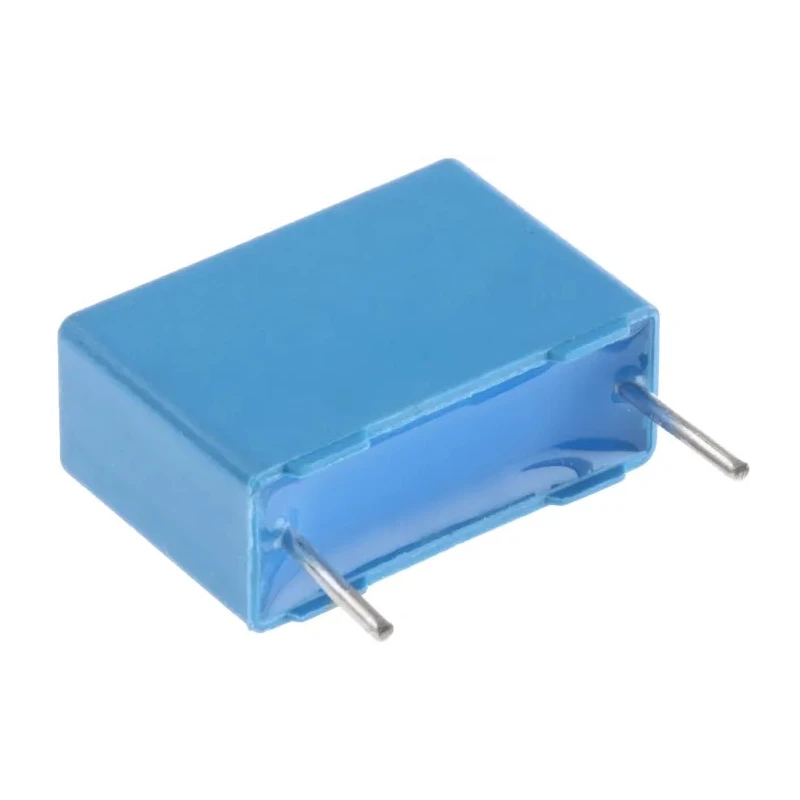

TDK Film Capacitor Through Hole 100 nF 200V AC 630V DC Polyethylene Terephthalate B32522Q8104K000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 12.5mm |
| Length | 18mm |
| Model | B32522Q8104K000 |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | B32522 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100nF |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 200V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Dielectric | Polyethylene Terephthalate (Polyester) |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- This capacitor features a capacitance of 100 nF, suitable for filtering and coupling applications.
- It has a rated AC voltage of 200V and DC voltage rating of 630V for versatile electrical compatibility.
- The component uses a polyethylene terephthalate (polyester) dielectric ensuring high pulse strength and stability.
- With a lead pitch of 15mm and pin count of 2, it is designed for through-hole mounting on PCBs.
- Operating temperature up to 125°C allows use in demanding environments.
- The capacitor's plastic case meets UL 94 V-0 flammability standards and epoxy resin sealing enhances durability.
- Complies with automotive standard AEC-Q200 Rev D, making it suitable for automotive applications.
- UL and RoHS approved, confirming industry compliance and environmental safety.
Product Description
TDK B32522Q8104K000 is a high-quality film capacitor designed for through-hole mounting, featuring a capacitance of 100 nF with rated voltages of 200V AC and 630V DC. It utilizes a polyethylene terephthalate (polyester) dielectric that provides exceptional high pulse strength and reliability, making it ideal for a variety of electronic circuits including filtering, timing, and coupling applications.
The capacitor is encapsulated in a plastic case complying with UL 94 V-0 standards and sealed with epoxy resin, ensuring mechanical and environmental protection. Its robust design supports a maximum operating temperature of 125°C, allowing use in demanding industrial and automotive environments.
Featuring a lead pitch of 15mm and two pins with 0.8mm diameter, this capacitor is suitable for through-hole mounting on printed circuit boards (PCBs). The compact dimensions of 18mm length, 7mm width, and 12.5mm height provide efficient space utilization while maintaining excellent electrical performance.
Certified to meet automotive standard AEC-Q200 Rev D, this capacitor is manufactured to high standards required in automotive electronics. Additionally, the product complies with UL and RoHS standards, guaranteeing safety, reliability, and environmental compliance.
This capacitor offers high pulse strength for stable electronic performance. It features a robust plastic case and epoxy resin sealing for protection against environmental factors. Designed for through-hole mounting with 15mm lead pitch and 2 pins.
Operates reliably up to 125°C maximum temperature rating. Complies with automotive and industry standards including AEC-Q200 Rev D, UL, and RoHS.
Typical applications include industrial electronics, automotive systems, and PCB electronic circuit designs requiring stable, long-life capacitors. TDK's B32522 series guarantees quality and performance for specialized Film Capacitor requirements.
Explore the Electronics Components category on EnvMart for a wide selection of capacitors and other passive components tailored to meet your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This film capacitor has a capacitance of 100 nF, making it suitable for various filtering and coupling applications.
It has a rated AC voltage of 200V and a DC voltage rating of 630V, providing versatility for different electrical applications.
The maximum operating temperature for this capacitor is 125°C, allowing it to function effectively in demanding environments.
This model uses a polyethylene terephthalate (polyester) dielectric, which ensures high pulse strength and stability.
It is designed for through-hole mounting on printed circuit boards (PCBs), featuring a lead pitch of 15mm and a pin count of 2.
The capacitor has dimensions of 18mm in length, 7mm in width, and 12.5mm in height, allowing for efficient space utilization.
It complies with UL and RoHS standards, ensuring safety and environmental compliance, and meets the automotive standard AEC-Q200 Rev D.
The lead diameter of this model is 0.8mm, which is compatible with standard through-hole PCB designs.
Typical applications include industrial electronics, automotive systems, and PCB electronic circuit designs requiring stable, long-life capacitors.
It is encapsulated in a plastic case that complies with UL 94 V-0 standards and is sealed with epoxy resin for protection against environmental factors.
This capacitor is part of the B32522 series, which is known for its high-quality film capacitors designed for various electronic applications.
The country of origin for this capacitor is India, indicating its manufacturing location.
