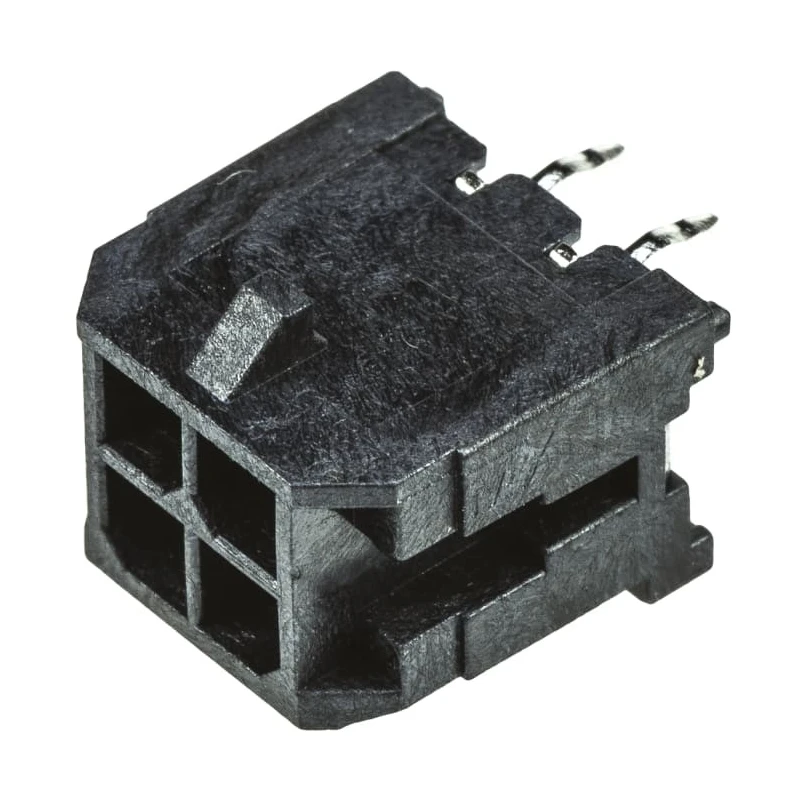

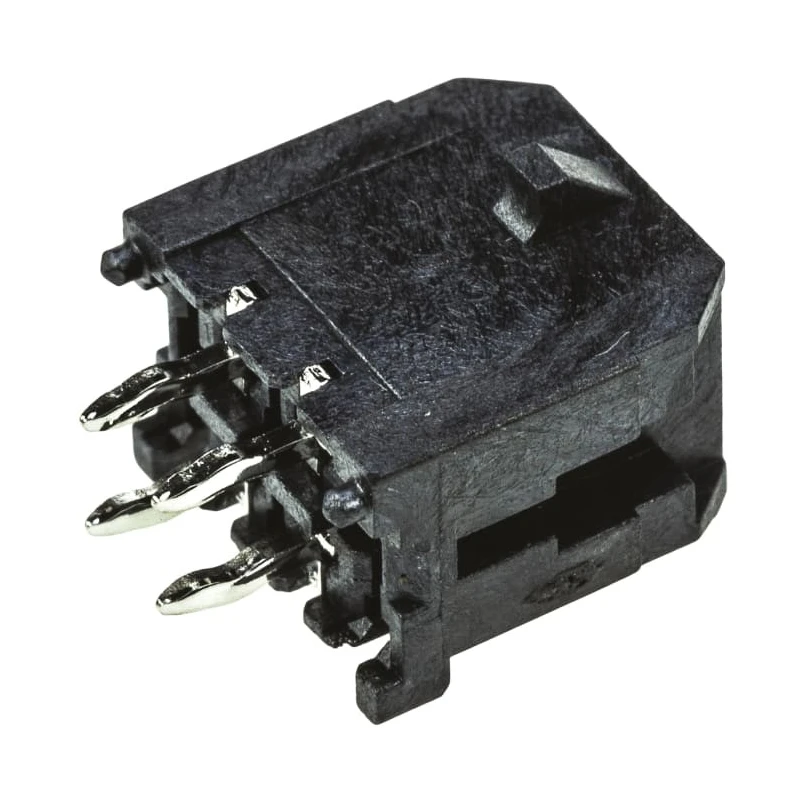

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header, 4 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0412

Molex 43045-0412 Micro-Fit 3.0 Series Straight Through Hole PCB Header is a durable and compact connector solution designed to provide reliable wire-to-board electrical connections. Featuring 4 male contacts in a 2-row shrouded format with a 3 mm pitch, this header accommodates up to 5 Amps current per pin, making it suitable for low to mid-range power distribution applications.

Constructed with a high-temperature thermoplastic housing, this PCB header withstands infrared reflow soldering temperatures up to 265°C, suitable for modern manufacturing environments. The contact system utilizes tin-plated brass for superior electrical conductivity and corrosion resistance, which ensures long-lasting performance in demanding industrial conditions.

The header design includes fully isolated dual-beam terminals for secure contact and consistent electrical performance. Additionally, polarised pins prevent misaligned or mismatched connections, minimizing the risk of short circuits or component damage during assembly or service. Kinked solder legs provide enhanced PCB retention during soldering processes, further strengthening the mechanical connection.

This 43045-0412 header is ideal for use in gaming consoles, solar power setups, medical devices, and complex data/telecommunications networks where dependable power connection is critical.

Compact PCB header designed for power distribution and board connectivity. Supports up to 5 Amps current per contact for efficient power transmission. Thermoplastic housing rated for high-temperature soldering processes.

Features tin-plated brass contacts ensuring corrosion resistance and conductivity. Polarised pins prevent misalignment and reduce risk of damage. Kinked solder legs improve secure mounting and PCB retention. Operates reliably in temperatures from -40°C to 105°C.

Locking ramp design ensures secure latching to prevent accidental disconnections.

Molex Micro-Fit 3.0 Series PCB Headers facilitate secure, reliable connections critical for industrial, laboratory, telecommunications, data networks, and electronic assembly applications. The product is made in China and complies with no specific approval standards.
