Molex Sabre Series Straight Through Hole PCB Header, 3 Contacts, 7.49 mm Pitch, 1 Row, Shrouded 43160-2103

Free Delivery in India | Lowest Global Shipping Charges

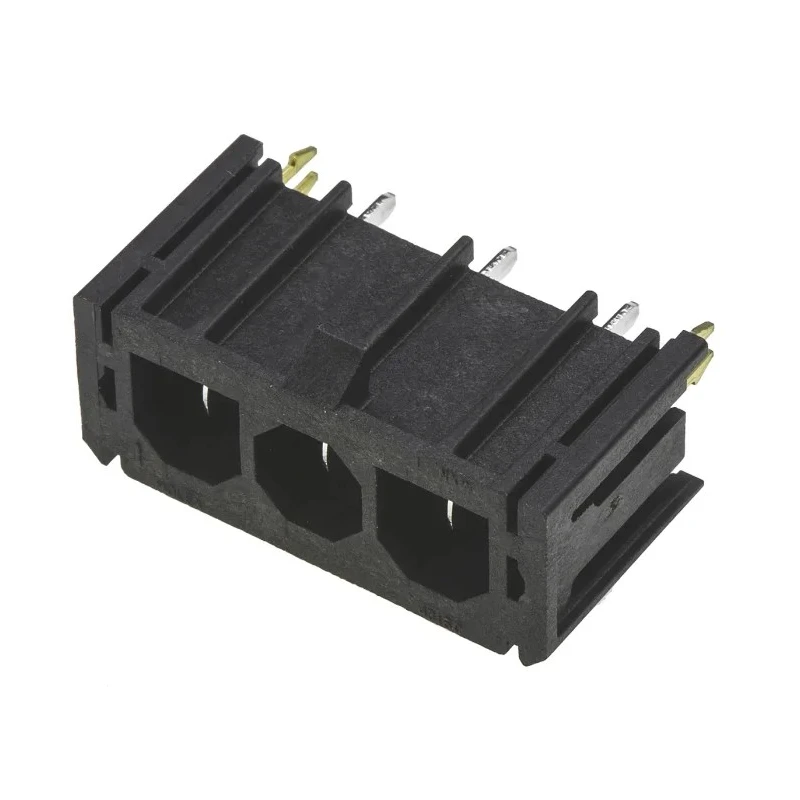

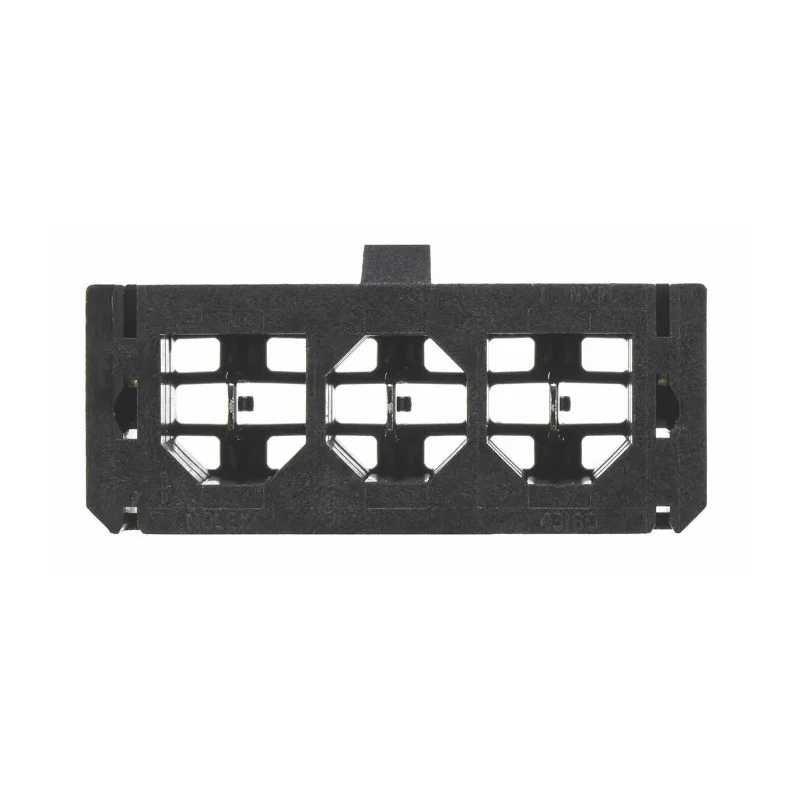

Molex Sabre Series Straight Through Hole PCB Header, 3 Contacts, 7.49 mm Pitch, 1 Row, Shrouded 43160-2103

Name: Molex Sabre Series Straight Through Hole PCB Header, 3 Contacts, 7.49 mm Pitch, 1 Row, Shrouded 43160-2103
Brand: Molex
SKU: 171612
Price: 3.9 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Straight
Current	18A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Sabre
Termination Type	Solder
Maximum Operating Temperature	75°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	7.49mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.81mm
Row Pitch	7.5mm

Key Features

The connector features a single row design, enhancing compact PCB layouts.
High current capacity of 18A ensures suitability for demanding electronic applications.
Constructed with high temperature thermoplastic housing for durability and thermal stability.
Male brass contacts plated with tin provide corrosion resistance and excellent conductivity.
Shrouded housing offers enhanced contact protection and prevents accidental disconnection.
Designed for through-hole mounting with solder termination for robust mechanical and electrical connection.
Operating temperature range from -40°C to 75°C allows usage in diverse environmental conditions.
Supports 600V voltage rating suitable for many electronic circuits and devices.

Product Description

Molex 43160-2103 Sabre Series Straight Through Hole PCB Header is a high-quality electronic component optimized for power and signal connectivity on printed circuit boards. This connector features 3 male contacts arranged in a single row with a precise 7.49 mm pitch, delivering reliable electrical performance for medium to high current applications up to 18 amperes. The housing is made of high temperature thermoplastic material, offering excellent durability and thermal resistance for industrial and commercial electronic equipment.

Specifically designed for wire-to-board connections, the straight orientation and shrouded design protect contacts and minimize the risk of accidental disconnection or short circuiting. This through-hole PCB header incorporates solder termination and harpoons for strong mechanical retention on the PCB, simplifying assembly and enhancing long-term reliability.

Operating across a temperature range from -40°C to 75°C, this component is well-suited for a wide variety of industrial, electronic, and manufacturing applications where stable performance is critical under different environmental conditions.

The male brass contacts are plated with tin to ensure corrosion resistance and excellent electrical conductivity. This product complies with UL E29179, UL1950, and CSA LR19980 safety and quality standards, making it suitable for usage in certified equipment and installations.

The connector system supports wire-to-board mounting in a compact 1-row layout. Shrouded housing design provides positive locking and protection for contacts, enhancing safe and secure connections. Supports 600V rated voltage and current carrying capability of up to 18A.

This PCB header is engineered for a tail pin length of 3.81 mm for optimal solder joint formation. Materials selected ensure robustness and extended lifecycle in demanding industrial and electrical applications.

The Molex Sabre Series 43160-2103 PCB header is ideal for use in electronic manufacturing, industrial control systems, automation equipment, and other domains requiring dependable PCB connectors. This product is part of Molex’s Sabre series known for combining mechanical strength and precision electrical specifications.

Explore Molex connectors and Sabre series products on EnvMart for reliable component sourcing and enhanced assembly performance.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB header has a current capacity of 18A, making it suitable for medium to high current applications.

The voltage rating for this model is 600V, which is suitable for many electronic circuits and devices.

The pitch size of this PCB header is 7.49 mm, allowing for compact arrangements on printed circuit boards.

The housing is made from high temperature thermoplastic, and the contacts are made of brass with a tin plating for corrosion resistance and conductivity.

This PCB header operates within a temperature range of -40°C to 75°C, suitable for diverse environmental conditions.

This model features 3 male contacts arranged in a single row.

It is designed for through-hole mounting with solder termination, ensuring a robust mechanical and electrical connection.

The tail pin length of this PCB header is 3.81 mm, which aids in optimal solder joint formation.

This connector features a shrouded design, which enhances contact protection and minimizes the risk of accidental disconnection.

This PCB header complies with UL E29179, UL1950, and CSA LR19980 safety and quality standards.

It supports a wire-to-board connector system, which is ideal for various electronic applications.

The Molex Sabre Series 43160-2103 PCB header is manufactured in India.
