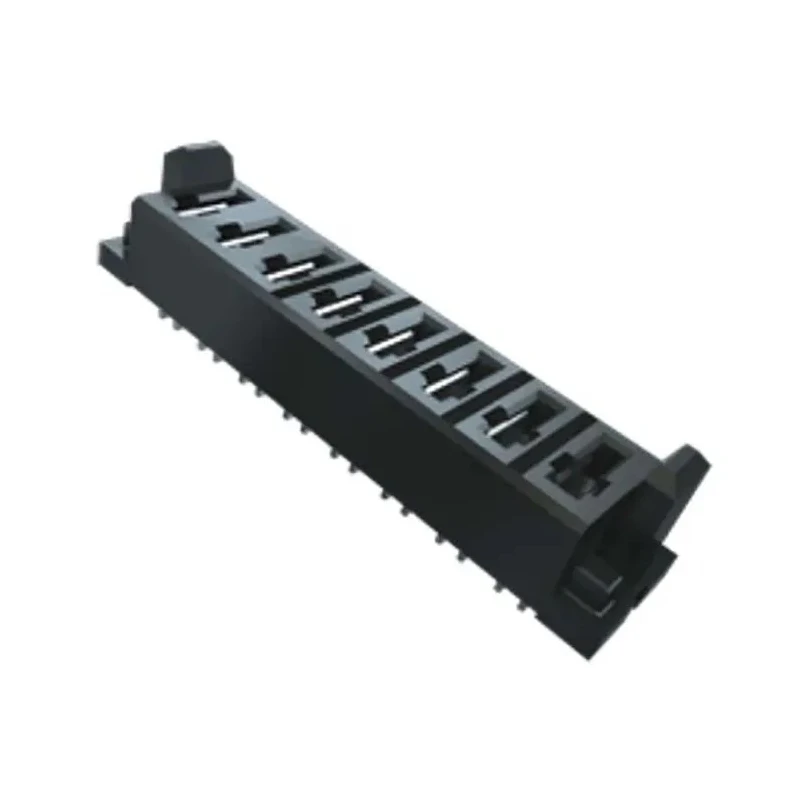

Samtec MPS Series Straight Through Hole PCB Socket 8-Contact 1 Row 5 mm Pitch 848V 41.7A MPS-08-7.70-03-L-V

Free Delivery in India | Lowest Global Shipping Charges

Samtec MPS Series Straight Through Hole PCB Socket 8-Contact 1 Row 5 mm Pitch 848V 41.7A MPS-08-7.70-03-L-V

Name: Samtec MPS Series Straight Through Hole PCB Socket 8-Contact 1 Row 5 mm Pitch 848V 41.7A MPS-08-7.70-03-L-V
Brand: Samtec
SKU: 167295
Price: 9.56 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	848V
Brand	Samtec
Orientation	Straight
Current	41.7A
Model	MPS-08-7.70-03-L-V
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper
Series	MPS
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Dual Leaf Socket
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	5mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	14mm
Row Pitch	2.54mm

Key Features

Constructed with black Liquid Crystal Polymer housing material for durability.
Features dual leaf contact design with 0.25 μm gold plating for reliable connectivity.
Supports operating voltage of 848V and continuous current of 41.7A.
Through hole mounting with straight orientation ensures secure PCB attachment.
Operational temperature range from -55°C to 125°C for wide environmental tolerance.
Stacking height of 14 mm and row pitch of 2.54 mm.
Contacts are female type made from copper with matte tin plating on tail.
Compliant with RoHS standards ensuring environmental safety.

Product Description

Samtec MPS-08-7.70-03-L-V is a high-quality Straight Through Hole PCB Socket from the MPS Series featuring 8 contacts arranged in a single row with a 5 mm pitch. This board-to-board connector utilizes a dual leaf socket design to maintain strong electrical connections and minimize signal loss, making it suitable for industrial, electronic manufacturing, and laboratory applications.

The socket housing is manufactured from Liquid Crystal Polymer (LCP), offering excellent durability and resistance to mechanical and thermal stress. Its contact area is plated with 0.25 μm gold to ensure high conductivity and corrosion resistance, while the tails are matte tin plated for reliable soldering to PCBs.

This component supports high currents of up to 41.7 amperes and a voltage rating of 848 volts, making it capable of handling demanding power requirements in electronic assemblies. The through-hole mounting style with straight orientation facilitates easy integration into various PCB layouts.

Designed to operate reliably in extreme environments, the socket withstands temperatures from -55°C to 125°C. The stacking height of 14 mm and row pitch of 2.54 mm add to its versatility for compact board designs.

Durable Liquid Crystal Polymer housing material provides mechanical stability. Gold plated contacts ensure long-lasting electrical performance. High current capacity suitable for power electronics. Complies with RoHS environmental regulations.

Suitable for use in industrial, manufacturing, and electronic laboratory environments. Facilitates secure and reliable board-to-board connectivity. Ideal for designing robust electronic control systems and assemblies.

This Samtec MPS Series socket is ideal for engineers and manufacturers requiring dependable connectors that deliver consistent performance under electrical and thermal stress. Browse EnvMart’s range of PCB Sockets to find complementary connectors and electronic components for comprehensive solutions.
