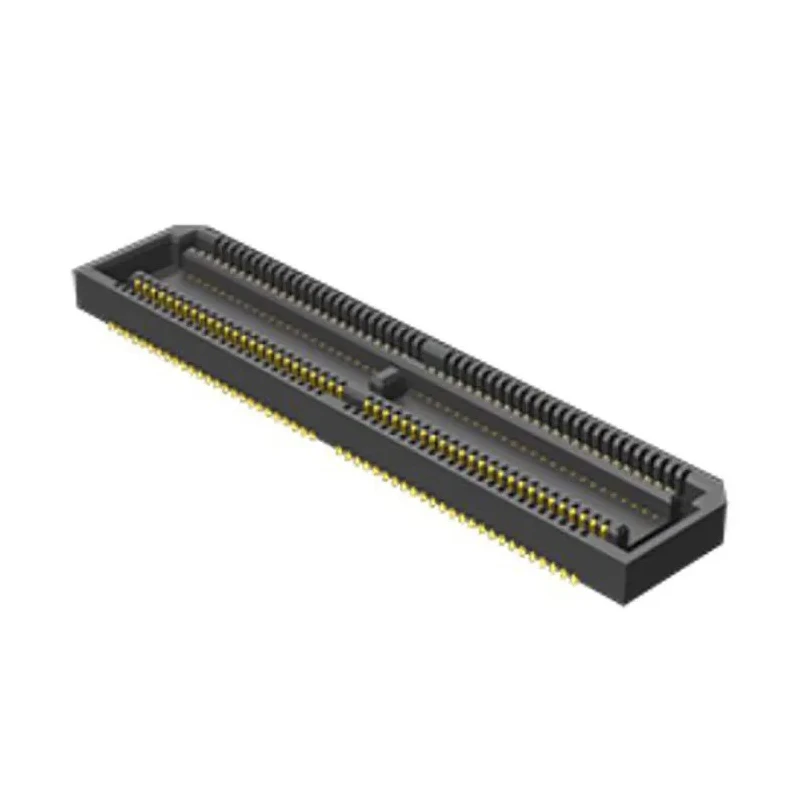

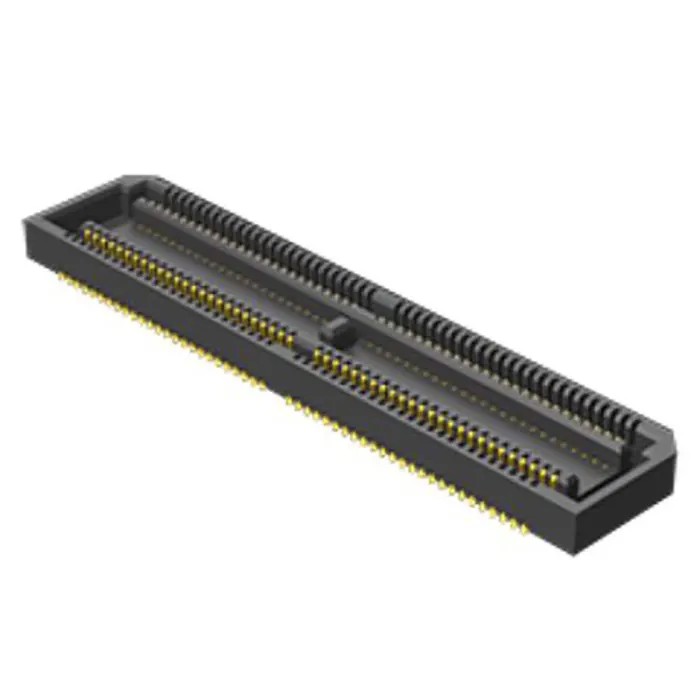

Samtec LSH Series Straight Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch Solder LSH-020-01-G-D-A

Samtec LSH Series Straight Surface PCB Socket model LSH-020-01-G-D-A is a high-quality electronic component designed for secure board-to-board connections. This PCB socket features 40 contacts arranged in two rows with a precise 0.5 mm pitch, suitable for high-density electronic assemblies.

The socket utilizes a blade and beam contact sub type, ensuring excellent mechanical stability and electrical performance. The contacts are crafted from beryllium copper alloy and are gold-plated, which offers superior conductivity and resistance to corrosion over long-term use.

The housing is made from liquid crystal polymer, providing high durability and thermal stability within an operating temperature range from -55°C to 125°C, making it suitable for demanding industrial and commercial electronic applications.

This surface mount mount type connector allows for solder termination for reliable assembly on printed circuit boards. The low profile and compact design facilitate space-saving and effective PCB layouts.

The component meets RoHS environmental standards, ensuring compliance with hazardous substance regulations. Its maximum current rating of 2.6 A supports various electronic loads, making it ideal for use in electronic equipment, power connectors, and industrial tool assemblies.

Blade and beam sub type provides reliable mechanical and electrical connections. Gold-plated beryllium copper alloy contacts ensure high conductivity and corrosion resistance. Housing is made from liquid crystal polymer to withstand operating temperatures from -55°C to 125°C.

Designed for solder termination and surface mount mounting type. Supports a maximum current rating of 2.6 A for electric circuits. Compact low-profile design suitable for dense PCB layouts. Complies with RoHS standards for environmental safety.

Connector system is board-to-board for versatile electronic integration. Typical applications include industrial electronics, manufacturing equipment, communication devices, and power supply systems requiring reliable PCB Sockets.
