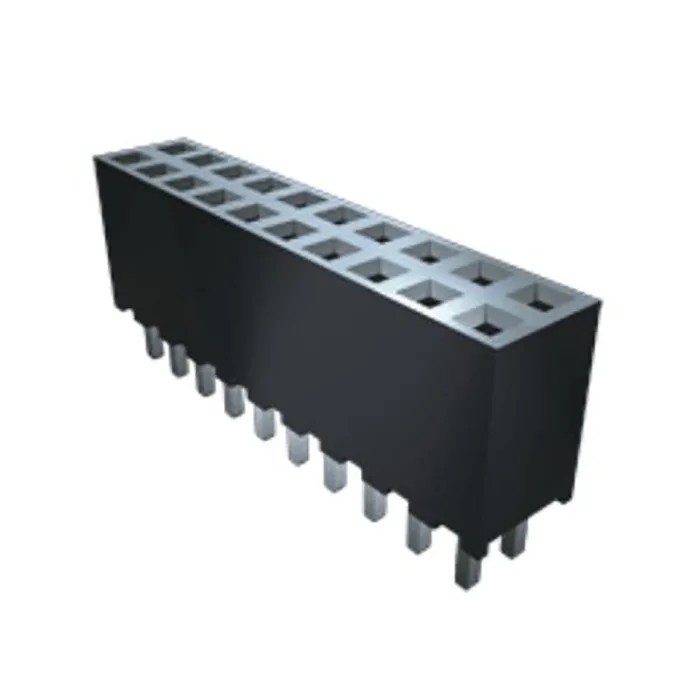

Samtec 26-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket SQT-113-03-L-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec 26-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket SQT-113-03-L-D

Name: Samtec 26-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket SQT-113-03-L-D
Brand: Samtec
SKU: 166712
Price: 5.4 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	281V
Brand	Samtec
Orientation	Straight
Current	5.1A
Model	SQT-113-03-L-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	SQT
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Cost-Effective Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Female
Connector System	Board-to-Board

Key Features

The socket supports a maximum current of 5.1 A per pin, ensuring solid electrical performance.
Manufactured with phosphor bronze contacts plated in gold for enhanced conductivity and corrosion resistance.
Housing constructed from durable liquid crystal polymer suitable for industrial environments.
Designed for straight orientation and through-hole mount type compatible with PCB installations.
Operates over a wide temperature range from -55°C to +125°C for diverse applications.
The connector system is board-to-board, facilitating flexible PCB designs.

Product Description

Samtec SQT-113-03-L-D PCB Socket is a high-quality, cost-effective straight through-hole socket strip designed for electronic components and PCB assemblies. Featuring 26 contacts arranged in 2 rows with a 2 mm pitch, this board-to-board connector ensures reliable connectivity in industrial and commercial electronic applications.

The socket employs the proven Tiger Buy contact technology, providing excellent electrical conductivity and mechanical stability. Contacts are made from phosphor bronze with gold plating, enhancing durability and signal integrity over extended operation.

The housing material is liquid crystal polymer, offering high resistance to heat and mechanical stress. The through-hole mounting type facilitates secure solder termination to printed circuit boards.

This connector is rated for a voltage of 281 V and can carry a current of up to 5.1 A per pin. It operates efficiently within a temperature range of -55°C to +125°C, making it suitable for challenging environments including industrial controls, automation systems, and communication devices.

The straight orientation and 2-row configuration enable flexible and compact PCB layouts, optimizing space utilization. The Samtec SQT series is widely used in electronics manufacturing, prototyping, and repair work.

The socket supports a maximum current of 5.1 A per pin for consistent electrical performance. Phosphor bronze contacts with gold plating ensure reliable conductivity and corrosion resistance. Durable liquid crystal polymer housing designed for harsh environments.

Through-hole solder termination for secure PCB mounting. Wide operating temperature range from -55°C to +125°C suits various industrial applications. Board-to-board connector system facilitates modular design approaches in electronics.

26 positions in 2 rows with 2 mm pitch for precise alignment and connectivity.

This PCB socket is ideal for industrial, manufacturing, electronic prototyping, and telecommunications applications where reliable connectivity and performance are critical. Explore more related components in the PCB Socket category at EnvMart for your design and assembly needs.
