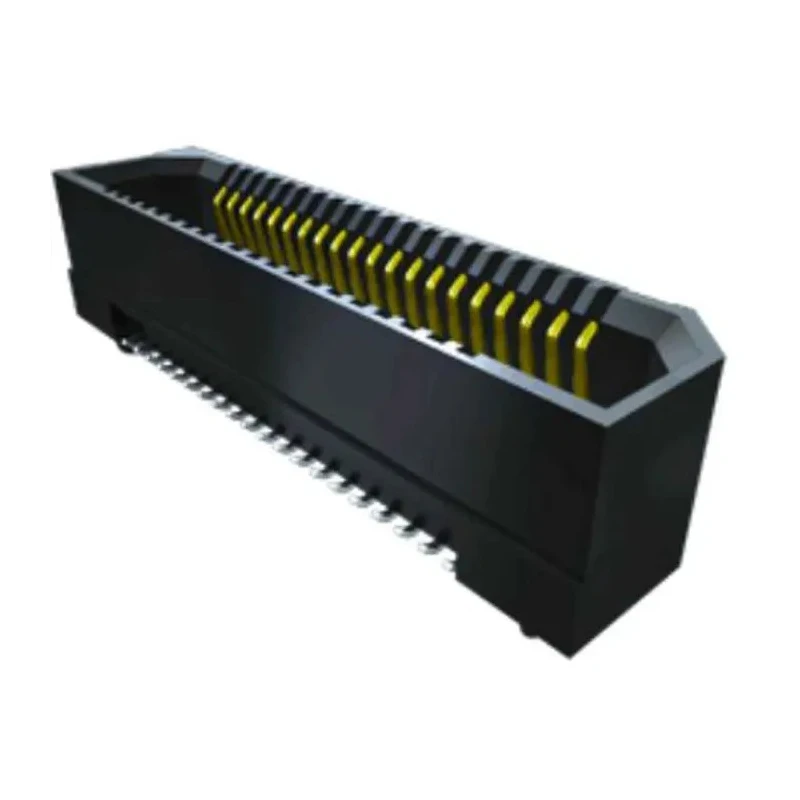

Samtec Vertical Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch 318V 2.2A Liquid Crystal Polymer Housing ERF8

Samtec ERF8 vertical surface PCB Socket, model ERF8-060-05.0-L-DV-L-TR, is a highly reliable connector designed for high-speed board-to-board system integration with performance supporting data rates up to 56 Gbps PAM4. This socket features 120 contacts arranged in 2 rows and a fine pitch of 0.8 mm, making it suitable for compact electronic devices.

Manufactured with liquid crystal polymer housing, this socket offers excellent mechanical strength and thermal stability, ensuring durability under demanding operating conditions. The contacts are made of beryllium copper alloy with a gold plating finish to provide superior electrical conductivity and resistance to corrosion.

The socket's vertical orientation and surface mount design facilitate easy integration on printed circuit boards, with a stacking height of 18 mm enabling compact device assembly. It has an operating voltage rating of 318 volts and can carry up to 2.2 amperes of current, making it suitable for a wide range of electronic applications.

This component operates reliably over a broad temperature range from -55°C to 125°C, suitable for industrial and harsh environment use. The 4.5 mm row pitch ensures precise contact alignment for secure and consistent electrical connections.

Applications include high-speed communication devices, embedded systems, and other electronic and industrial equipment requiring reliable board-to-board connections. This product supports various use cases in electronics manufacturing, laboratory prototyping, and industrial automation sectors.

Supports a maximum current of 2.2 amperes for efficient signal transmission. Constructed with liquid crystal polymer housing for high durability and heat resistance. Features gold-plated beryllium copper alloy contacts for enhanced conductivity and corrosion resistance.

Designed for vertical orientation and surface mounting on PCBs. Operates reliably within a temperature range from -55°C to 125°C. Stacking height of 18 mm provides compact integration in electronic assemblies. Supports board-to-board connector compatibility in demanding applications.

Ensures a row pitch of 4.5 mm for precise alignment and secure contact. Voltage rating up to 318 volts for robust electrical performance. Ideal for industrial, electronic component, and high-frequency signal applications requiring high reliability.
