Samtec PCB Header 100 Contacts 0.635 mm Pitch 2 Row Straight Shrouded Surface Mount LSS-150-02-L-DV-A

Free Delivery in India | Lowest Global Shipping Charges

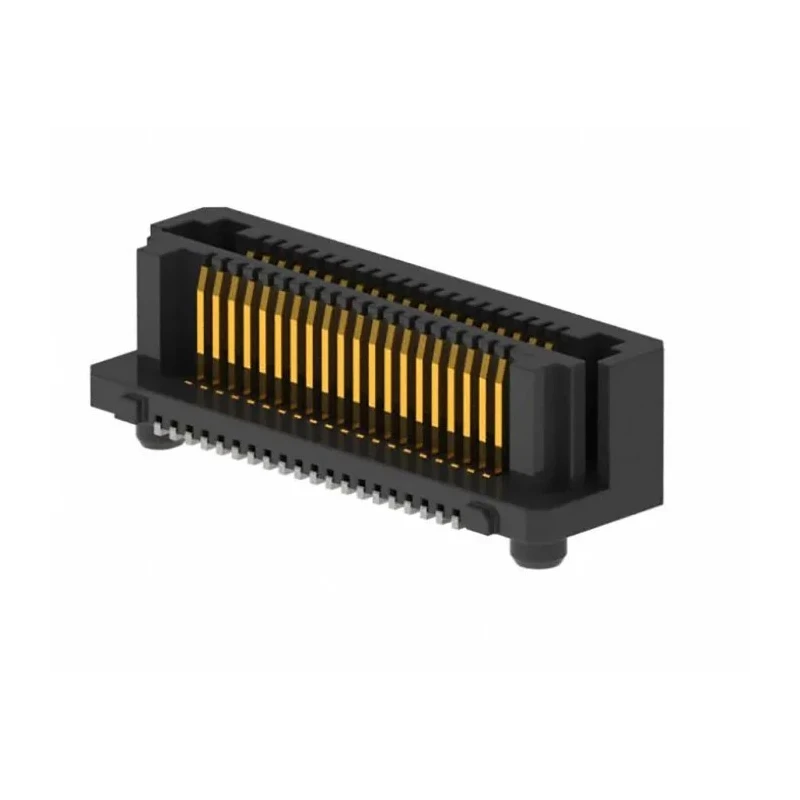

Samtec PCB Header 100 Contacts 0.635 mm Pitch 2 Row Straight Shrouded Surface Mount LSS-150-02-L-DV-A

Name: Samtec PCB Header 100 Contacts 0.635 mm Pitch 2 Row Straight Shrouded Surface Mount LSS-150-02-L-DV-A
Brand: Samtec
SKU: 163235
Price: 8.91 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1.7A
Model	LSS-150-02-L-DV-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSS
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a board-to-board connector system for reliable electrical connections.
Constructed with liquid crystal polymer housing material for durability.
Contacts made of phosphor bronze, plated with gold for enhanced conductivity and corrosion resistance.
Supports currents up to 1.7 A with a minimum operating temperature of -55°C and maximum of 125°C.
Designed as a self-mating hermaphroditic header to reduce inventory costs and ensure secure mating with audible click.
Suitable for industrial, electronic component assembly, and PCB manufacturing applications.
This shrouded header features male contact gender and a row pitch of 0.635 mm for precision connections.

Product Description

Samtec presents the LSS-150-02-L-DV-A PCB Header, a high-performance, straight surface mount connector designed for electronic applications requiring 100 contacts arranged in 2 rows with a pitch of 0.635 mm. This component utilizes a shrouded design to protect contacts and ensure reliable mating.

The housing is made from liquid crystal polymer, offering excellent durability and thermal stability, with a minimum operating temperature of -55°C and a maximum of 125°C. Contacts are crafted from phosphor bronze and plated with gold, guaranteeing superior conductivity and resistance to corrosion.

This header supports a current rating of 1.7 amperes and is engineered as a self-mating hermaphroditic system, which reduces inventory costs by allowing interconnection without separate male and female connectors. The mating process produces an audible click, confirming secure engagement.

The connector system is specifically for board-to-board mounting on printed circuit boards, optimized for electronic manufacturing, industrial control systems, and precision electronics assembly.

Board-to-board connector system for secure electrical connections. Liquid crystal polymer housing provides durability and thermal resistance. Phosphor bronze contacts with gold plating for excellent conductivity. Current rating of 1.7 A suitable for various electronic applications.

Self-mating hermaphroditic design reduces inventory complexity. Shrouded and straight orientation offers contact protection and ease of mounting. Operating temperature range from -55°C to 125°C ensures performance under harsh conditions.

This PCB Header is essential for industrial electronics assembly, including telecommunications, computing hardware, and embedded system designs. The high contact count and compact pitch support complex, dense PCB layouts.
